ES-1000X | Fire-Lite 954-Point Intelligent Addressable Fire Alarm Control Panel with Dual-Path Communicator
- Regular price
- $1,620.00
- Sale price
- $1,620.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ES-1000X
Description

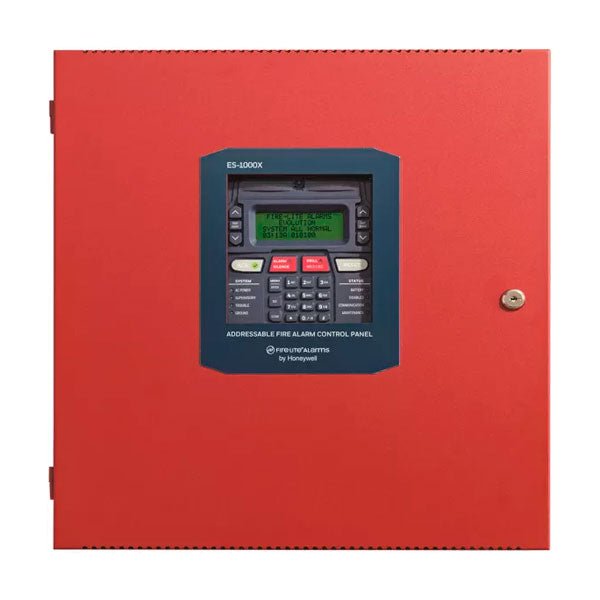

The Fire-Lite ES-1000X is a 954-point capacity intelligent addressable fire alarm control panel with a pre-installed loop card and built-in dual-path communicator. It supports up to three SLC loops, providing 318 devices per loop, and features advanced programming, NAC circuits, and CO detection support.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | ES-1000X |
| Subcategory | Addressable Fire Alarm Control Panel |
| Type | Intelligent addressable FACP |
| Device Capacity | 318 devices per loop (159 detectors + 159 modules), up to 954 total |
| SLC Loops | 1 pre-installed loop, expandable to 3 with SLC-3LS modules |
| Protocol | LiteSpeed |
| NAC Circuits | 4 built-in, Class A or B, 3.0A per circuit |
| Total System Output | 8.0A (max) NAC/Aux output |
| Communication | Built-in dual-path communicator (POTS and IP); optional CLSS or GSM |
| Programming Features | Auto-programming (learn mode), USB upload/download, firmware update |
| CO Detection | Supports multi-criteria fire/CO detectors |
| Zones | 256 software zones |
| Expanders | Supports up to 2 optional SLC-3LS 318-point loop expanders |
| Sync Compatibility | System Sensor, Wheelock, Gentex notification appliances |
| Function Keys | Four programmable keys |
| Indicators | Trouble indication for non-programmed devices |
| Display/Annunciation | Integrated SWIFT display driver and annunciator |
| Primary Power | 120 VAC input |
| Battery Support | 18AH minimum, 55AH maximum charging capacity |
| Dimensions | 22.0625” H × 23.875” W × 7.75” D |
| Weight | 41 lbs (18.6 kg) |
Information About ES-1000X
The ES-1000X is a high-capacity fire alarm control panel from Fire-Lite, engineered to support up to 954 addressable devices across three signaling line circuits. Using LiteSpeed protocol, it ensures rapid communication with detectors and modules while supporting both fire and CO detection. With built-in dual-path communication (POTS and IP), it provides reliable system reporting to monitoring centers, and optional CLSS or GSM communicators further expand connectivity. Featuring auto-programming, programmable function keys, USB firmware updates, and integrated annunciation, the ES-1000X is designed to streamline installation, configuration, and long-term system management.
Key Features:
- High Device Capacity: Supports up to 954 addressable devices with expansion, ideal for large-scale facilities.
- Multiple SLC Loops: Provides one pre-installed loop with up to three loops total for flexible system design.
- Built-In Dual-Path Communication: Includes POTS and IP connections for redundant reporting to monitoring centers.
- NAC Flexibility: Features four Class A/B NAC circuits with 3.0A each and built-in sync with leading notification brands.
- Auto-Programming Function: Simplifies installation by detecting and configuring connected devices.
- Advanced Detector Support: Compatible with multi-criteria fire/CO detectors for combined protection.
- USB Programming & Updates: Allows upload/download of configuration data and firmware via USB thumb drive.
- Expanded Software Zones: Provides up to 256 programmable zones for detailed system organization.
- Integrated SWIFT Wireless Support: Built-in annunciator and driver for wireless device integration.
- Standards Compliance: Meets NFPA requirements with robust monitoring, supervision, and reporting features.
The ES-1000X delivers the reliability and precision required for complex life safety systems, offering scalable capacity and advanced communication for large buildings.
Description
The Fire-Lite ES-1000X is a 954-point capacity intelligent addressable fire alarm control panel with a pre-installed loop card and built-in dual-path communicator. It supports up to three SLC loops, providing 318 devices per loop, and features advanced programming, NAC circuits, and CO detection support.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | ES-1000X |
| Subcategory | Addressable Fire Alarm Control Panel |
| Type | Intelligent addressable FACP |
| Device Capacity | 318 devices per loop (159 detectors + 159 modules), up to 954 total |
| SLC Loops | 1 pre-installed loop, expandable to 3 with SLC-3LS modules |
| Protocol | LiteSpeed |
| NAC Circuits | 4 built-in, Class A or B, 3.0A per circuit |
| Total System Output | 8.0A (max) NAC/Aux output |
| Communication | Built-in dual-path communicator (POTS and IP); optional CLSS or GSM |
| Programming Features | Auto-programming (learn mode), USB upload/download, firmware update |
| CO Detection | Supports multi-criteria fire/CO detectors |
| Zones | 256 software zones |
| Expanders | Supports up to 2 optional SLC-3LS 318-point loop expanders |
| Sync Compatibility | System Sensor, Wheelock, Gentex notification appliances |
| Function Keys | Four programmable keys |
| Indicators | Trouble indication for non-programmed devices |
| Display/Annunciation | Integrated SWIFT display driver and annunciator |
| Primary Power | 120 VAC input |
| Battery Support | 18AH minimum, 55AH maximum charging capacity |
| Dimensions | 22.0625” H × 23.875” W × 7.75” D |
| Weight | 41 lbs (18.6 kg) |
Information About ES-1000X
The ES-1000X is a high-capacity fire alarm control panel from Fire-Lite, engineered to support up to 954 addressable devices across three signaling line circuits. Using LiteSpeed protocol, it ensures rapid communication with detectors and modules while supporting both fire and CO detection. With built-in dual-path communication (POTS and IP), it provides reliable system reporting to monitoring centers, and optional CLSS or GSM communicators further expand connectivity. Featuring auto-programming, programmable function keys, USB firmware updates, and integrated annunciation, the ES-1000X is designed to streamline installation, configuration, and long-term system management.
Key Features:
- High Device Capacity: Supports up to 954 addressable devices with expansion, ideal for large-scale facilities.
- Multiple SLC Loops: Provides one pre-installed loop with up to three loops total for flexible system design.
- Built-In Dual-Path Communication: Includes POTS and IP connections for redundant reporting to monitoring centers.
- NAC Flexibility: Features four Class A/B NAC circuits with 3.0A each and built-in sync with leading notification brands.
- Auto-Programming Function: Simplifies installation by detecting and configuring connected devices.
- Advanced Detector Support: Compatible with multi-criteria fire/CO detectors for combined protection.
- USB Programming & Updates: Allows upload/download of configuration data and firmware via USB thumb drive.
- Expanded Software Zones: Provides up to 256 programmable zones for detailed system organization.
- Integrated SWIFT Wireless Support: Built-in annunciator and driver for wireless device integration.
- Standards Compliance: Meets NFPA requirements with robust monitoring, supervision, and reporting features.
The ES-1000X delivers the reliability and precision required for complex life safety systems, offering scalable capacity and advanced communication for large buildings.
