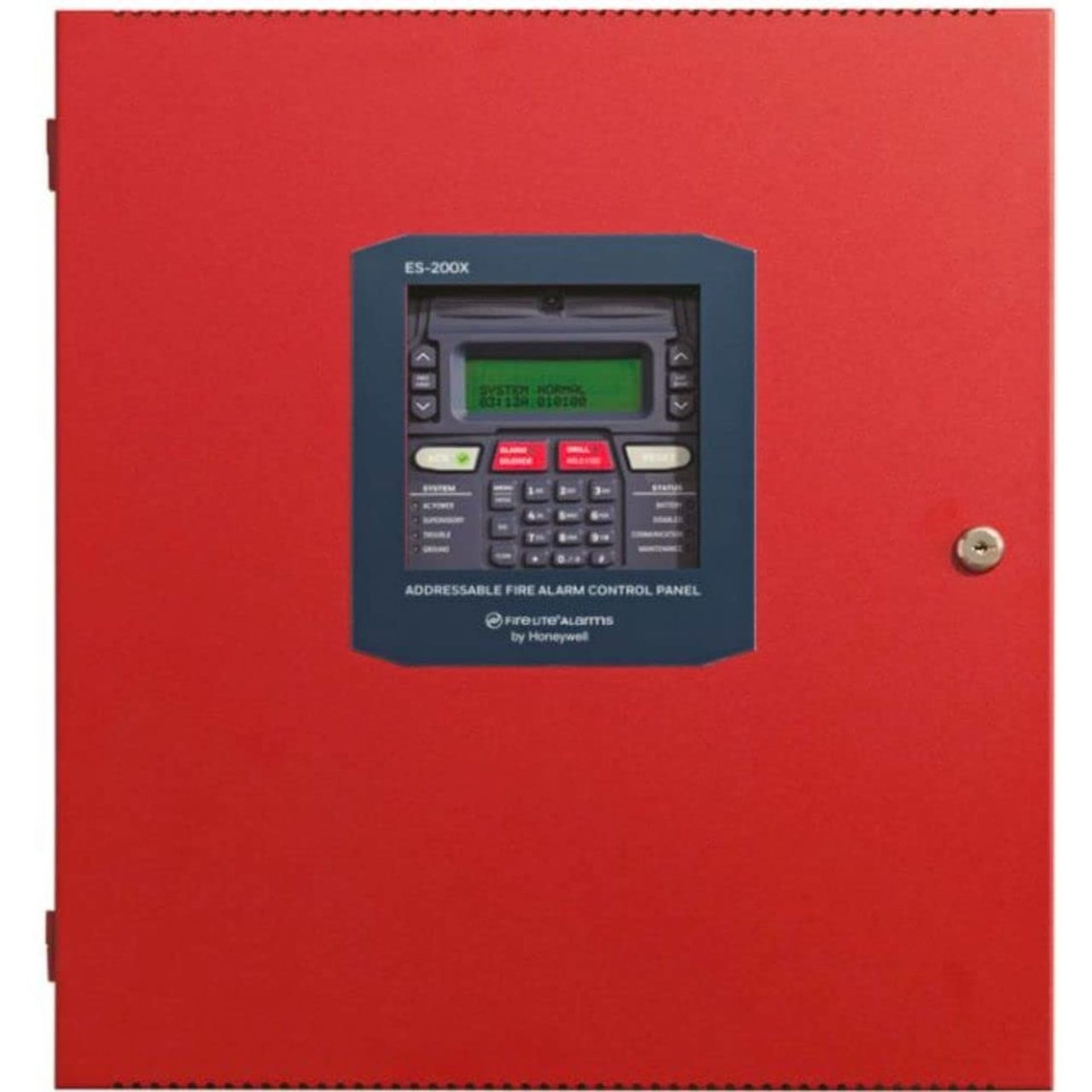

ES-200X | Fire-Lite 198-Point Addressable Fire Alarm Control Panel with Dual Path Communications
- Regular price
- $1,055.00
- Sale price
- $1,055.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ES-200X
Description
The Fire-Lite ES-200X is a 198-point addressable fire alarm control panel designed for advanced fire and CO detection. It features built-in dual path communications, an 80-character LCD display, and integrated IPOTS-COM Ethernet/POTS communicator for reliable monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | ES-200X |
| Subcategory | Addressable Fire Alarm Control Panel |
| Addressable Points | 198 |
| Signaling Line Circuits | 1 loop |
| Event Log Capacity | 1000 events |
| Display | 80-character backlit LCD |
| Input Voltage (AC) | 120 V AC / 230 V AC |
| Input Voltage (DC) | 30 V DC |
| Battery Support | Two 12 V, 18 AH lead-acid batteries |
| Battery Charger Capacity | 7–18 AH |
| Relays Supported | Two programmable, one fixed trouble relay |
| NAC Circuits | Four Style Z (Class A) or Style Y (Class B) |
| Annunciators | Supports up to 16 intelligent annunciators |
| Communication | Built-in IPOTS-COM Ethernet/POTS; optional CELL-MOD/CELL-CAB-FL |
| Certifications | UL 864 10th Edition, FM, CSFM, FDNY Approved |
| Operating Features | Auto-programming Learn Mode, built-in keypad programmer |
| Optional Integration | ECC-50/100 Emergency Command Center, ECC-FFT Firefighter Telephone |
| Color | Red |
| Country of Origin | United States |
| Weight | 27.3 lbs |
Information About ES-200X
The ES-200X is a Fire-Lite Endurance Series addressable fire alarm control panel engineered to manage up to 198 devices on a single SLC loop. It includes pre-installed IPOTS-COM communication for both Ethernet and traditional phone lines, while offering compatibility with System Sensor, Wheelock, Gentex, and SWIFT wireless devices. The panel provides four programmable NAC outputs, three relay contacts, and an internal event log for 1000 entries, all designed for simplified programming with Learn Mode and an integrated keypad. With UL, FM, CSFM, and FDNY certifications, plus support for optional GSM and ECC integration, the ES-200X combines flexibility, regulatory compliance, and reliable protection for demanding fire safety applications.
Key Features:
- Addressable Capacity: Manages up to 198 intelligent addressable devices on one SLC loop for scalable fire detection.
- Integrated Dual Path Communicator: Built-in IPOTS-COM module provides Ethernet/IP and POTS connections to central stations without extra hardware.
- NAC Outputs: Includes four Style Z (Class A) or Style Y (Class B) notification appliance circuits for horns, strobes, and other devices.
- Event History: Internal memory stores up to 1000 system events, alarms, and troubles for easier diagnostics and reporting.
- Multi-Power Input: Accepts 120/230 VAC or 30 VDC supply, ensuring installation flexibility across various facilities.
- Battery Backup: Supports two 12 V, 18 AH lead-acid batteries with 7–18 AH charging capacity for uninterrupted operation during outages.
- User Interface: Features an 80-character backlit LCD with real-time clock, four programmable function keys, and built-in keypad programmer.
- System Compatibility: Easily integrates with System Sensor, Wheelock, Gentex, and SWIFT wireless detection devices.
- Relay Outputs: Provides two programmable relays and one fixed trouble relay for system integration with auxiliary devices.
- Installation Efficiency: Learn Mode auto-programming quickly configures devices, reducing setup and commissioning time.
The ES-200X delivers the reliability and precision required for life safety systems in commercial, institutional, and industrial facilities.
