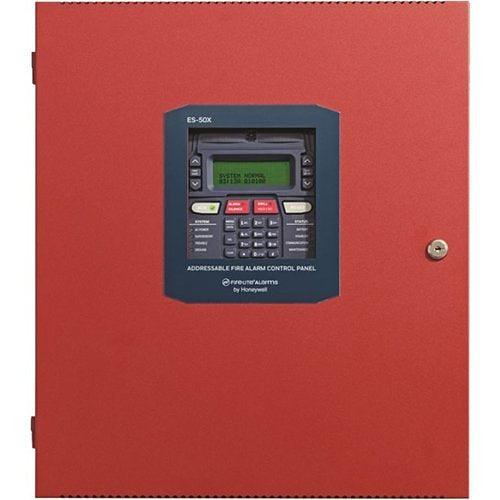

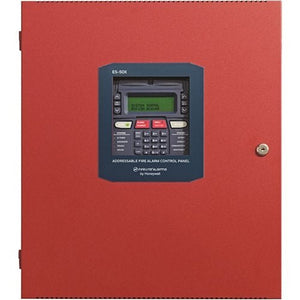

ES-50X | Fire-Lite Endurance Series 50-Point Addressable Fire Alarm Control Panel with Dual Path Communication
- Regular price
- $840.00
- Sale price
- $840.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ES-50X
Description
The Fire-Lite ES-50X is a 50-point intelligent addressable fire alarm control panel designed for small to mid-sized commercial applications. It integrates advanced communication, addressable detection, and programming capabilities in one compact, UL-listed unit with built-in IP and POTS connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite Alarms |
| Category | Fire Alarm Equipment |
| Part Number | ES-50X |
| Subcategory | Addressable Fire Alarm Control Panel |
| Series | Endurance Series |
| Type | Intelligent addressable FACP |
| Device Capacity | 50 addressable points |
| Communication | Built-in dual path (IP and POTS); optional cellular module |
| Compatible Add-ons | CELL-MOD, CELL-CAB-FL, IPOTS-COM |
| Number of Relays Supported | 3 |
| Event Log Capacity | 1,000 events |
| Display Type | LCD with integrated keypad |
| Power Input | 120 VAC or 230 VAC |
| Secondary Power Input | 24 VDC |
| Programmable Buttons | Four function keys |
| Detection Support | Combined fire and carbon monoxide (CO) addressable detection |
| Programming Interface | USB thumb drive port for configuration upload/download |
| Certifications | UL: S624, FM Approved, CSFM: 7165-0075:0500, FDNY COA #6261 |
| Enclosure Color | Red |
| Mounting | Surface or flush mount |
| Country of Origin | United States |
| Weight | 27 lbs |
Information About ES-50X
The ES-50X is part of Fire-Lite’s Endurance Series, a new generation of addressable fire alarm control panels that combine simplicity, connectivity, and powerful processing in one system. It supports up to 50 addressable devices and includes a factory-installed IPOTS-COM communicator for dual-path alarm transmission via IP and phone line. This model replaces the MS-9050UD/LS and adds new capabilities such as USB drive programming, larger event storage, and enhanced diagnostic features. Its four programmable function keys, built-in keypad, and support for both fire and CO detection make it a reliable choice for modern code-compliant fire protection systems.
Key Features
- Dual Path Communication: Built-in IPOTS-COM module supports both IP and traditional phone line connections, ensuring redundant alarm reporting for improved reliability.
- Addressable Device Support: Manages up to 50 intelligent addressable devices, providing precise point identification for efficient system monitoring.
- Combined Fire and CO Detection: Supports simultaneous connection of addressable fire and carbon monoxide detectors on a single system for full safety integration.
- Programmable Function Keys: Includes four user-configurable buttons for quick access to reset, silence, drill, or custom actions, improving operator convenience.
- USB Thumb Drive Programming: Features a front-mounted USB port for simple upload or download of configuration data, backups, and firmware updates.
- Event Logging and Diagnostics: Maintains a 1,000-event log for alarms, troubles, and supervisory activities, enabling easy review and maintenance tracking.
- Flexible Power Input: Operates on 120V or 230V AC and supports 24VDC backup power to maintain operation during outages.
- Intuitive LCD Interface: Bright display with integrated keypad simplifies configuration, monitoring, and event management.
- Certified and Approved: Complies with UL, FM, CSFM, and FDNY standards, ensuring performance and installation reliability.
The ES-50X delivers the reliability and precision required for advanced addressable fire protection, combining communication redundancy, flexible configuration, and integrated detection technology for professional-grade safety systems.
