ESL-1500 | ESL Conventional Fire Alarm Control Panel Series (1, 3 & 5 Zone Models)
- Regular price
- $1,599.00
- Sale price
- $1,599.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: ESL-1500
Description
The ESL-1500 is a conventional fire alarm control panel series designed for 1, 3, or 5 zone configurations. It provides initiating and indicating circuit supervision, alarm verification, and modular expandability with relay and communication options. Suitable for commercial, institutional, and residential use, it offers a reliable and flexible solution for fire detection systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | ESL / Sentrol / GE Security |
| Category | Fire Safety |
| Part Number | ESL-1500 |
| Subcategory | Conventional Fire Alarm Control Panel |
| Models | 1501 (1 zone), 1503 (3 zones), 1505 (5 zones) |
| Initiating Circuits | Supports 2-wire or 4-wire devices |
| Wiring Styles | Class A or Class B |
| Indicating Circuits | Two, Class A or Class B |
| Alarm Verification | Selectable for smoke detectors |
| Supervisory Functions | Supports waterflow and supervisory device monitoring |
| Standby Power | Battery backup (24 or 60 hour configurations) |
| Power Output | 24 VDC, up to 1.5 A |
| Auxiliary/Relay Outputs | Supports zone relay modules, remote annunciators, communicators |
| Cabinet Dimensions | Approx. 14 in × 14 in × 4.5 in |
| Operating Temperature | 32 °F to 120 °F (0 °C to 50 °C) |
| Enclosure | Steel housing with lockable hinged door |
| Listings/Approvals | UL 864 and other regional approvals |
| Weight | Approx. 10–15 lbs (depending on configuration and batteries) |
Information About ESL-1500

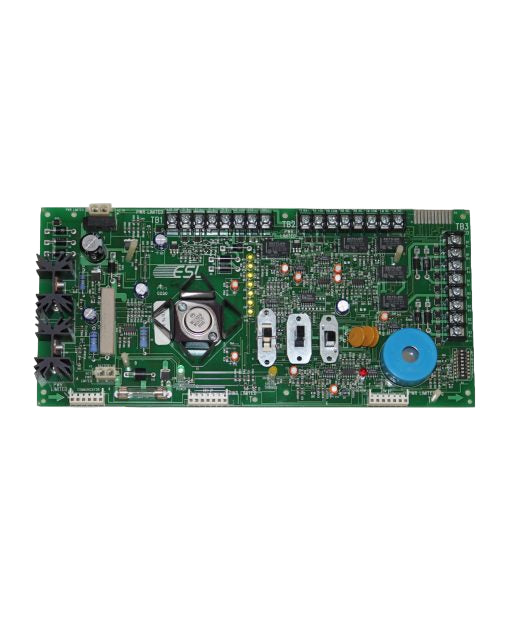

The ESL-1500 Series includes several models: 1501 (one zone), 1503 (three zones), and 1505 (five zones). Each model is built on a Basic Master Board with the option to expand zones using Zone Expander Modules, allowing up to 5 total zones. Initiating circuits support two-wire or four-wire detectors in Class A or Class B wiring configurations. The panel supervises all initiating and indicating circuits for faults and provides features such as walk-test mode, alarm verification, and supervisory or waterflow monitoring on designated zones. Housed in a steel enclosure with lockable door, the panel supports auxiliary power, standby batteries, and additional modules for remote annunciation, digital communications, and local energy connections. The ESL-1500 meets UL fire alarm standards and is approved for use in various jurisdictions.
Key Features:
- Multiple Zone Options: Available in 1, 3, or 5 zone models, expandable with modules.
- Alarm Verification: Reduces nuisance alarms with selectable verification for smoke detectors.
- Walk-Test Mode: Allows installers to test devices without resetting the entire system.
- Supervised Circuits: Both initiating and indicating circuits monitored for faults and ground issues.
- Device Compatibility: Supports two-wire and four-wire smoke detectors, heat detectors, and manual stations.
- Modular Expandability: Accepts zone expanders, relay modules, remote annunciators, and communicators.
- Supervisory Monitoring: Zone 2 programmable for sprinkler supervisory devices and waterflow.
- Auxiliary Power Supply: Provides 24 VDC for system devices with standby battery backup capability.
- Durable Construction: Steel cabinet with hinged, lockable door for secure installation.
- Code Compliant: UL-Listed and approved for fire protection installations.
The ESL-1500 delivers the reliability, supervision, and expandability needed for modern conventional fire alarm systems.
