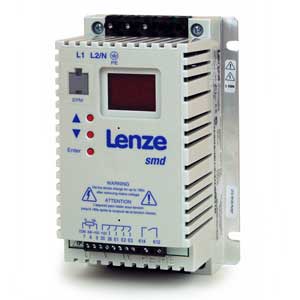

ESMD183L4TXA | Lenze 18.5kW 400/480VAC 3-Phase Frequency Inverter
- Regular price
- $2,452.00
- Sale price
- $2,452.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ESMD183L4TXA
Description
The Lenze ESMD183L4TXA is a three-phase frequency inverter designed for high-capacity motor control in industrial applications. Rated at 18.5 kW (approximately 24.5 HP), it operates on 400/480 VAC at 50/60 Hz and delivers adjustable output voltage up to 480 VAC. This drive provides reliable speed regulation with output frequencies up to 240 Hz for demanding automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives & Motor Control |
| Part Number | ESMD183L4TXA |
| Subcategory | AC Drives |
| Drive Type | Frequency Inverter / Drive |
| Rated Power | 18.5 kW (Approx. 24.5 HP) |
| Input Voltage | 400/480 VAC (3-Phase, 50/60 Hz) |
| Input Current | 44 A (400 VAC), 38 A (480 VAC) |
| Output Voltage | 0–400/480 VAC (3-Phase) |
| Output Current | 39 A (400 VAC), 34 A (480 VAC) |
| Output Frequency | 0–240 Hz |
| Enclosure Rating | IP20 (EN 60529) |
| Climatic Class | 3K3 (EN 50178) |
| Operating Temperature | 0°C to +55°C (De-rating above 40°C) |
| Storage Temperature | -20°C to +70°C |
| Installation Altitude | 0–4000 m AMSL (De-rating above 1000 m) |
| Ambient Humidity | <95% (Non-Condensing) |
| Vibration Resistance | Up to 0.7 g (EN 5178) |
| Weight | 9.94 lbs (4.51 kg) |
Information About ESMD183L4TXA
The ESMD183L4TXA is an industrial AC drive engineered for three-phase 400/480 VAC supply networks and is suitable for heavy-duty motor applications. It delivers output current ratings of 39 A at 400 VAC and 34 A at 480 VAC, with input currents of 44 A and 38 A respectively. The inverter supports an output frequency range of 0–240 Hz, allowing flexible motor speed control across a broad operating range. Designed with an IP20 enclosure, it meets EN 60529 standards and is suitable for installation in control cabinets within environments conforming to EN 50178 climatic class 3K3.
Key Features:
- 18.5 kW (Approx. 24.5 HP) Rating: Designed for high-power industrial motor control.
- 400/480 VAC Three-Phase Input: Compatible with standard industrial power systems.
- 39 A / 34 A Output Current: Provides stable current delivery based on supply voltage.
- 0–240 Hz Output Frequency: Enables wide-range motor speed adjustment.
- 44 A / 38 A Input Current: Supports high-capacity operational demands.
- IP20 Enclosure: Intended for protected installation inside electrical cabinets.
- Wide Operating Temperature Range: 0°C to +55°C with defined power de-rating.
- High Installation Flexibility: Operates up to 4000 m altitude with specified de-rating.
The ESMD183L4TXA delivers the reliability and precision required for high-performance industrial variable frequency motor control systems.
