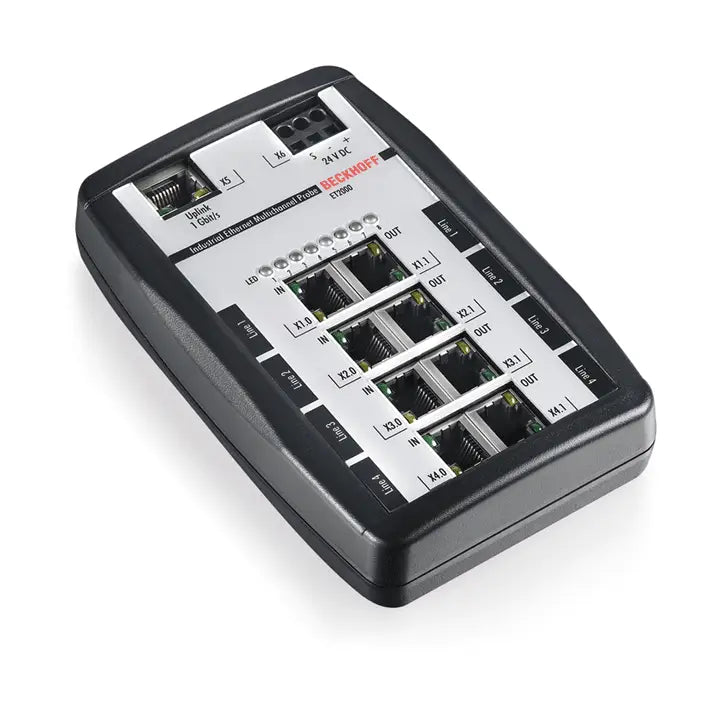

ET2000 | Beckhoff Industrial Ethernet Multi-Channel Probe 4 Channels 8 Ports
- Regular price
- $2,356.00
- Sale price
- $2,356.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ET2000
Description
The Beckhoff ET2000 is an industrial Ethernet multi-channel probe with 4 channels and 8 ports, designed for analyzing and monitoring Ethernet communication in automation networks. With probe ports operating at 100 Mbit/s and a 1 Gbit/s uplink, it provides high-speed diagnostics with minimal delay.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Networking |
| Part Number | ET2000 |
| Subcategory | Ethernet Probes |
| Number of Channels | 4 |
| Number of Ports | 8 |
| Uplink Port | 1 × 1 Gbit/s uplink |
| Data Transfer Rates | Probe ports: 100 Mbit/s; Uplink: 1 Gbit/s |
| Delay | Approx. 1 µs |
| Resolution Timestamp | 1 ns (channel 0/1) |
| Hardware Diagnostics | Link/activity LED per channel; 1 × power LED |
| Software Compatibility | WinPcap |
| Power Supply | 24 V DC (18–30 V DC), 500 mA via 3-pin connection (+, –, PE) |
| Operating Temperature | 0…55 °C |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | Approx. 100 mm × 150 mm × 40 mm |
| Weight | 1.00 lbs |
Information About ET2000
The ET2000 is a Beckhoff industrial Ethernet probe designed to capture, monitor, and analyze network communication without affecting data transfer. It provides four channels with eight probe ports running at 100 Mbit/s, combined with a 1 Gbit/s uplink port for fast data handling. With a time resolution of 1 ns on channels 0 and 1, the ET2000 ensures precise synchronization and detailed diagnostics for real-time Ethernet communication. Compact in design and powered via a 24 V DC supply, it integrates easily into industrial automation environments for advanced network analysis.
Key Features:
-
Multi-Channel Analysis: Offers 4 independent channels with 8 probe ports for simultaneous monitoring of multiple Ethernet lines.
-
High-Speed Uplink: Provides a 1 Gbit/s uplink port for rapid data transfer and efficient analysis of captured communication.
-
Fast Data Acquisition: Probe ports operate at 100 Mbit/s with minimal delay of only ~1 µs, ensuring accurate and real-time diagnostics.
-
Precise Timestamping: Channels 0 and 1 feature a resolution timestamp of 1 ns, supporting precise synchronization in Ethernet-based control systems.
-
Diagnostic Indicators: Equipped with link/activity LEDs per channel and a power LED for quick hardware status verification.
-
Software Integration: Compatible with WinPcap, allowing seamless data capture and analysis on standard PCs.
-
Reliable Power Supply: Operates from 24 V DC (18–30 V DC range) with a secure 3-pin connection for industrial use.
-
Compact Industrial Design: Small housing (100 × 150 × 40 mm) with IP20 protection makes it easy to mount in automation environments.
The ET2000 delivers the reliability and precision required for Ethernet diagnostics and real-time monitoring in industrial automation systems.
