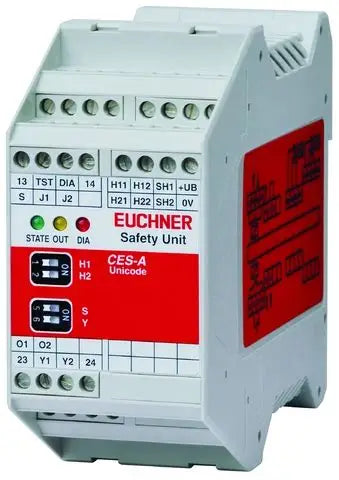

Euchner CES-A-AEA-02B Safety Evaluation Unit for Two CES Read Heads
- Regular price
- $755.00
- Sale price
- $755.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CES-A-AEA-02B
Description
Euchner CES-A-AEA-02B is a safety evaluation unit designed to process signals from up to two CES electronic-coded read heads in industrial machine safety applications. It provides monitored relay safety outputs for protective door and access monitoring in machinery and automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Industrial Automation |
| Part Number | CES-A-AEA-02B |
| Subcategory | Safety Evaluation Units / Safety Controllers |
| Product Type | Non-Contact Safety System Evaluation Unit |
| Order Number | 092560 |
| System | CES-A |
| Coding Type | Unicode |
| Number of Read Heads | 2 maximum |
| Safety Outputs | 2 redundant relay outputs |
| Safety Category | Category 4 / PL e |
| Operating Voltage | 21–27 VDC regulated |
| Typical Current Consumption | 150 mA with relay energized, excluding monitoring-output loads |
| Connection | Screw terminals |
| Mounting | 35 mm DIN rail |
| Response Time | Max. 290 ms with 2 active actuators |
| Housing Protection | IP20 |
| Weight | 0.25 kg |
Information About CES-A-AEA-02B
The CES-A-AEA-02B is part of the Euchner CES-A series of electronic safety evaluation units. The unit evaluates signals from coded EUCHNER read heads and actuators to monitor movable machine guards. Its Unicode coding allows up to eight actuators to be taught in, with only the last taught-in actuator being recognized. The unit also provides connections for a start button, feedback loop, self-test input, diagnostic output, and monitoring outputs.
Key Features:
- Unicode Evaluation: Detects only previously taught-in coded actuators.
- Two Read Heads: Supports connection of up to two compatible read heads.
- Dual Safety Outputs: Provides two redundant relay safety outputs.
- Category 4 / PL e: Suitable for high-level machine safety applications according to EN ISO 13849-1.
- Feedback Loop: Provides Y1/Y2 connections for monitoring an external feedback circuit.
- Diagnostic Functions: Includes TST and DIA connections for testing and diagnostics.
- DIN-Rail Mounting: Designed for mounting on 35 mm DIN rail according to EN IEC 60715.
- IP20 Housing: Evaluation unit enclosure is designed for installation inside a protected control cabinet.
The CES-A-AEA-02B provides reliable safety signal evaluation for machine guarding and industrial safety-control applications.
