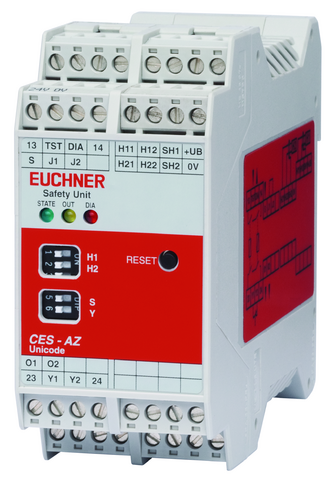

Euchner CES-AZ-UES-02B CES Safety Evaluation Module with 2 Read Head Inputs
- Regular price
- $645.00
- Sale price
- $645.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CES-AZ-UES-02B
Description
The Euchner CES-AZ-UES-02B is a safety evaluation module for CES-AZ electronic coding safety switches. It supports connection of up to two read heads and provides two monitored relay safety contacts for integration into machine safety circuits. The module operates at 24 VDC and mounts on a TH 35 DIN rail.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Smart Switches |
| Part Number | CES-AZ-UES-02B |
| Subcategory | Safety Switches |
| Series | CES-AZ |
| Product Type | Safety Evaluation Module |
| Operating Voltage | 21–27 VDC, 24 VDC Nominal |
| Safety Contacts | 2 Relay Contacts, Internally Monitored |
| Switching Current | Max. 20 mA for Monitoring Outputs |
| Rated Insulation Voltage Ui | 250 V |
| Protection Rating | IP20 |
| Ambient Temperature | -20 to +55 °C |
| Storage Temperature | -25 to +70 °C |
| Weight | 3.00 lb |
Information About CES-AZ-UES-02B
The CES-AZ-UES-02B is part of the Euchner CES safety system and is designed to evaluate coded actuator signals from compatible read heads. Its Multicode configuration allows up to two read heads to be connected to a single evaluation unit. The module provides diagnostic and door-monitoring semiconductor outputs together with floating relay contacts for safety circuits. Internal monitoring of the relay contacts supports reliable evaluation of the connected safety devices.
Key Features:
- Safety Evaluation Module: Processes signals from compatible CES-AZ coded safety switch read heads.
- Read Head Capacity: Supports connection of up to two read heads to one evaluation unit.
- Multicode Technology: Provides coded actuator evaluation for compatible CES-AZ safety systems.
- Safety Contacts: Includes two internally monitored relay safety contacts for safety circuit integration.
- Monitoring Outputs: Provides DIA, O1, and O2 semiconductor outputs for diagnostics and door monitoring.
- Operating Voltage: Designed for regulated 21–27 VDC operation with 24 VDC nominal supply.
- DIN Rail Mounting: Installs on TH 35 mounting rail according to EN IEC 60715.
- Protection Rating: IP20 housing protection for installation inside suitable control enclosures.
The CES-AZ-UES-02B delivers the reliability and precision required for machine safety evaluation and coded guard monitoring applications.
