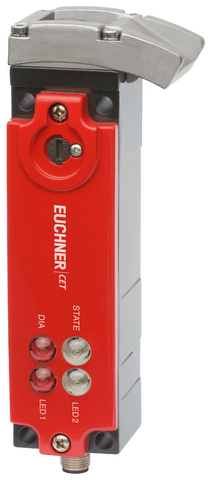

Euchner CET3-AP-CRA-AH-50X-SA-122398 Non-Contact Safety Interlock Switch
- Regular price
- $1,099.00
- Sale price
- $1,099.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CET3-AP-CRA-AH-50X-SA-122398
Description
The Euchner CET3-AP-CRA-AH-50X-SA-122398 is a non-contact safety interlock switch designed for guard monitoring and locking in industrial safety systems. It operates on 24 VDC and uses an 8-pin M12 plug connection, with a locking force of up to 6500 N. The unit provides IP67 protection and supports continuous 100% solenoid duty.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Safety Systems |
| Part Number | CET3-AP-CRA-AH-50X-SA-122398 |
| Subcategory | Safety Interlock Switch |
| Series | CET3 |
| Operating Voltage | 24 VDC |
| Connection | M12 Plug Connector, 8-Pin |
| Protection Rating | IP67 |
| Housing Material | Stainless Steel Slide, Die-Cast Aluminum Housing |
| Ambient Temperature | -20 to +55 °C |
| Locking Principle | Closed-Circuit Current Principle |
| Maximum Locking Force | 6500 N |
| Assured Locking Force | 5000 N |
| Solenoid Power Consumption | 11 W |
| Solenoid Duty Cycle | 100% |
| Switching Frequency | Max. 0.5 Hz |
| Approach Speed | Max. 20 m/min |
| Current Consumption ICM | 450 mA |
| Current Consumption IB | 80 mA |
| Weight | 2.80 lb |
Information About CET3-AP-CRA-AH-50X-SA-122398
The CET3-AP-CRA-AH-50X-SA-122398 belongs to the Euchner CET3 series of safety switches and uses AP Unicode technology. Its housing combines a stainless-steel slide with a die-cast aluminum safety switch housing for industrial installation. The device uses the closed-circuit current principle and can be installed in any orientation. Integrated monitoring and safety functions are designed according to EN IEC 60947-5-3 requirements.
Key Features:
- Safety Switch: Non-contact safety interlock switch for industrial guard monitoring and locking applications.
- Operating Voltage: Uses regulated 24 VDC supply with reverse-polarity protection and PELV configuration.
- Connection: Equipped with one 8-pin M12 plug connector for electrical integration.
- Protection Rating: IP67 enclosure protection for demanding industrial environments.
- Locking Force: Provides a maximum locking force of 6500 N and an assured locking force of 5000 N.
- Solenoid Operation: Uses an 11 W solenoid with a 100% duty cycle for continuous operation.
- Safety Class: Rated Safety Class III according to EN IEC 61140.
- Environmental Range: Designed for ambient temperatures from -20 to +55 °C at 24 VDC.
The CET3-AP-CRA-AH-50X-SA-122398 delivers the reliability and precision required for industrial safety interlock and guard locking applications.
