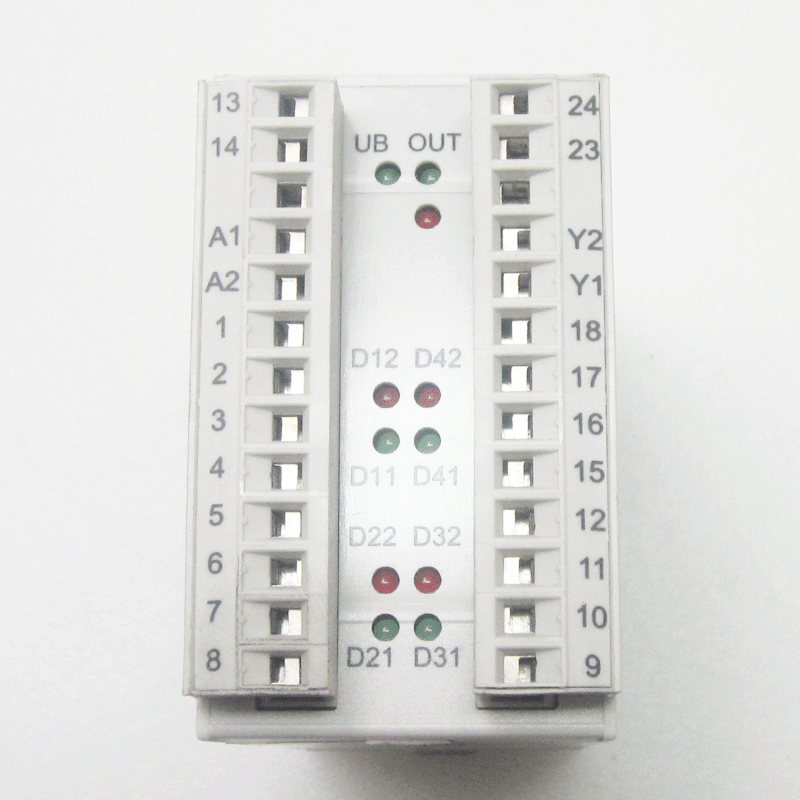

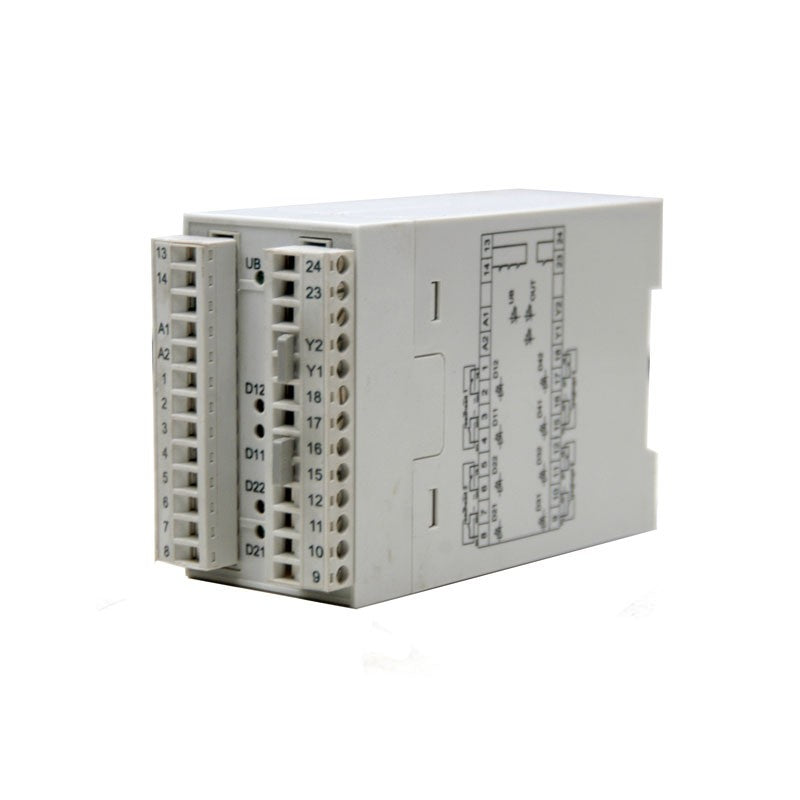

Euchner CMS-E-BR Magnetically Coded Safety Switch Evaluation Unit
- Regular price
- $512.00
- Sale price
- $512.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CMS-E-BR
Description
Euchner CMS-E-BR is an evaluation unit for magnetically coded CMS safety switches, designed to process signals from up to four connected read heads. It provides one safety contact, one auxiliary contact, and a connection for a feedback loop for machine safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Industrial Automation |
| Part Number | CMS-E-BR |
| Subcategory | Safety Relays |
| Order Number | 085537 |
| Series | CMS |
| System Type | Magnetically Coded Safety Switch System |
| Read Heads | 1–4 |
| Safety Contact | 1 relay contact, 13/14 |
| Auxiliary Contact | 1 relay contact, 23/24 |
| Feedback Loop | 1 feedback loop |
| Operating Voltage | 24 V AC/DC ±10% |
| Safety Rating | Category 4 / PL e with one read head; max. Category 3 / PL d with multiple read heads |
| Connection Type | Plug-in terminals |
| Connection Cross-Section | 0.14–2.5 mm² |
| Internal Fuse | 0.5 A resettable PTC |
| Protection Rating | Terminals IP20 / Housing IP40 |
| Mounting | 35 mm mounting rail, EN IEC 60715 TH35 |
| Housing Material | PC |
| Dimensions | 114.7 × 75 × 45 mm |
| Ambient Temperature | 0 to +50 °C |
| Storage Temperature | -25 to +70 °C |
| Risk Time | Maximum 20 ms |
| Weight | 0.24 kg |
Information About CMS-E-BR
The CMS-E-BR is part of the Euchner CMS series of magnetically coded safety switch systems and has order number 085537. The evaluation unit connects directly to CMS read heads and evaluates their reed-contact signals for protective guard monitoring. It supports one read head for Category 4 / PL e applications and up to four read heads with a maximum rating of Category 3 / PL d. The unit is designed for industrial machinery and can be installed on a 35 mm mounting rail according to EN IEC 60715 TH35.
Key Features:
- Four Read Head Connections: Allows direct connection of up to four compatible CMS read heads.
- Safety Contact: Provides one safety relay contact for integration into a machine safety circuit.
- Auxiliary Contact: Includes one auxiliary contact for additional control or monitoring functions.
- Feedback Loop: Supports connection of one external feedback loop.
- Safety Performance: Provides Category 4 / PL e with one connected read head and up to Category 3 / PL d with multiple read heads.
- LED Diagnostics: Includes power, safety output, and individual read-head status indicators.
- DIN Rail Mounting: Designed for installation on a 35 mm mounting rail according to EN IEC 60715 TH35.
- Wide Connection Range: Accepts conductor cross-sections from 0.14 to 2.5 mm².
The CMS-E-BR delivers the reliability and precision required for coded safety switch evaluation and industrial machine protection.
