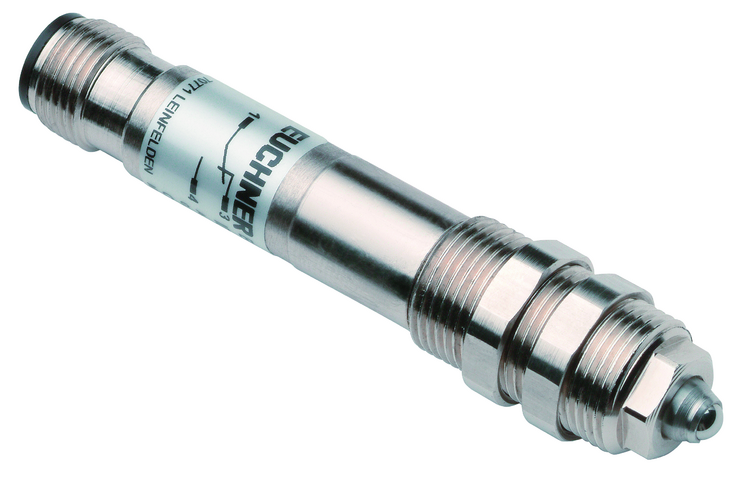

Euchner EGT1SEM4C1613 M14 Limit Switch with Ball Plunger and M12 Connector
- Regular price
- $347.00
- Sale price
- $347.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EGT1SEM4C1613
Description
The Euchner EGT1SEM4C1613 is a compact limit switch with a ball plunger actuator for mechanical position detection in industrial equipment. It uses one normally closed and one normally open contact, a snap-action switching mechanism, and an M12 plug connection, with IP67 protection for demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Sensors & Switches |
| Part Number | EGT1SEM4C1613 |
| Subcategory | Limit Switches |
| Design | Single-hole |
| Connection | M12 plug connector |
| Contacts | 1 NC / 1 NO |
| Switching | Snap-action |
| Actuating Force | 20 N |
| Approach Speed | 0.01–8 m/min |
| Protection | IP67 |
| Insulation Voltage | 50 V |
| Mechanical Life | 1 × 10⁶ cycles |
| Ambient Temperature | -25 °C to +80 °C |
| Contact Material | Silver alloy, gold plated |
| Weight | 0.05 lb |
Information About EGT1SEM4C1613
The EGT1SEM4C1613 is a single-hole limit switch with an M14 × 1 threaded design and nickel-plated brass construction. Its ball plunger provides a 20 N actuating force and supports approach speeds from 0.01 to 8 m/min. The snap-action contact element is rated for a mechanical life of 1 × 10⁶ cycles and is suitable for installations in any orientation. Its compact construction and M12 plug connector allow integration into machinery where reliable mechanical position sensing is required.
Key Features:
- Limit Switch: Provides mechanical position detection for industrial machinery and equipment.
- Ball Plunger: Uses a ball plunger actuator with a 20 N actuating force.
- Contact Configuration: Includes 1 normally closed and 1 normally open contact.
- Snap Action: Provides defined switching through a snap-action contact element.
- M12 Connection: Uses an M12 plug connector for electrical connection.
- Threaded Design: Features an M14 × 1 threaded mounting design.
- Protection Rating: Provides IP67 protection against dust and water ingress.
- Operating Range: Supports approach speeds from 0.01 to 8 m/min and temperatures from -25 °C to +80 °C.
The EGT1SEM4C1613 delivers the reliability and precision required for mechanical position sensing and limit detection applications.
