Euchner ES-XN4E-LL412Q4MFR Red 30mm Emergency Stop Pushbutton 1NO/2NC
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ES-XN4E-LL412Q4MFR
Description

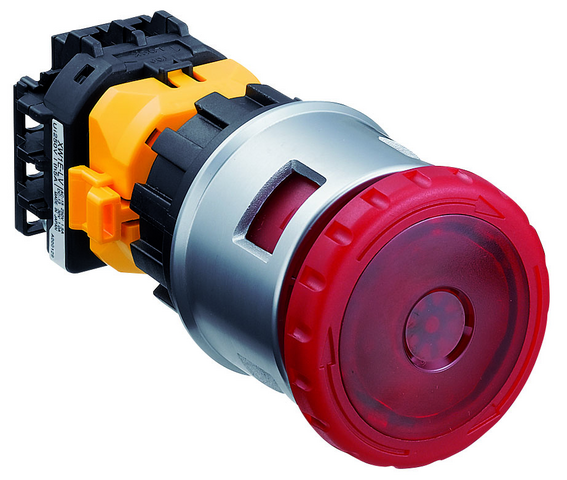

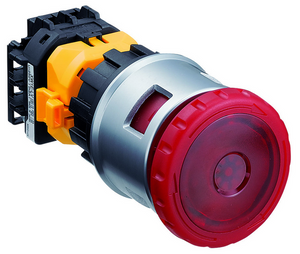

The Euchner ES-XN4E-LL412Q4MFR is a red emergency stop pushbutton with a 30 mm mushroom operator and maintained action for emergency shutdown applications. It provides one normally open and two positively driven normally closed contacts, with screw-terminal connection and a 250 V rated insulation voltage.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Emergency Stop Switches |
| Part Number | ES-XN4E-LL412Q4MFR |
| Subcategory | Emergency Stop Pushbuttons |
| Operator | 30 mm mushroom head |
| Contacts | 1 NO / 2 NC |
| Safety Contacts | 2 positively driven |
| Reset | Turning |
| Connection | Screw terminal |
| Insulation Voltage | 250 V |
| Operating Current | 15 mA |
| Thermal Current | 1 A |
| Mounting Cut-Out | D30 |
| Protection | IP20 |
| Ambient Temperature | -25 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Contact Material | Silver alloy, gold flashed |
| Housing Material | Polycarbonate |
| Weight | 0.129 kg |
Information About ES-XN4E-LL412Q4MFR
The ES-XN4E-LL412Q4MFR is an emergency stop pushbutton designed for installation in industrial control panels using a D30 mounting cut-out. Its thermoplastic mushroom head and polycarbonate housing provide a compact operator assembly with a silver-alloy bezel. The contact configuration supports safety-related switching through two positively driven contacts and one normally open contact. The maintained-action mechanism can be reset by turning the red operator and supports padlock locking where required.
Key Features:
- Emergency Stop: Provides a maintained emergency stop function for machinery shutdown circuits.
- Contact Configuration: Includes 1 NO and 2 positively driven NC contacts.
- Mushroom Operator: Features a 30 mm red thermoplastic mushroom head for emergency actuation.
- Mounting: Uses a D30 mounting cut-out according to EN IEC 60947-5-1.
- Connection: Uses screw terminals for direct electrical wiring.
- Reset Mechanism: Resets by turning the operator after emergency activation.
- Safety Contacts: Uses positively driven contacts for monitoring and safety-related control circuits.
- Protection Rating: Provides IP20 protection for the operator assembly.
The ES-XN4E-LL412Q4MFR delivers the reliability and precision required for emergency stop and machinery safety control applications.
