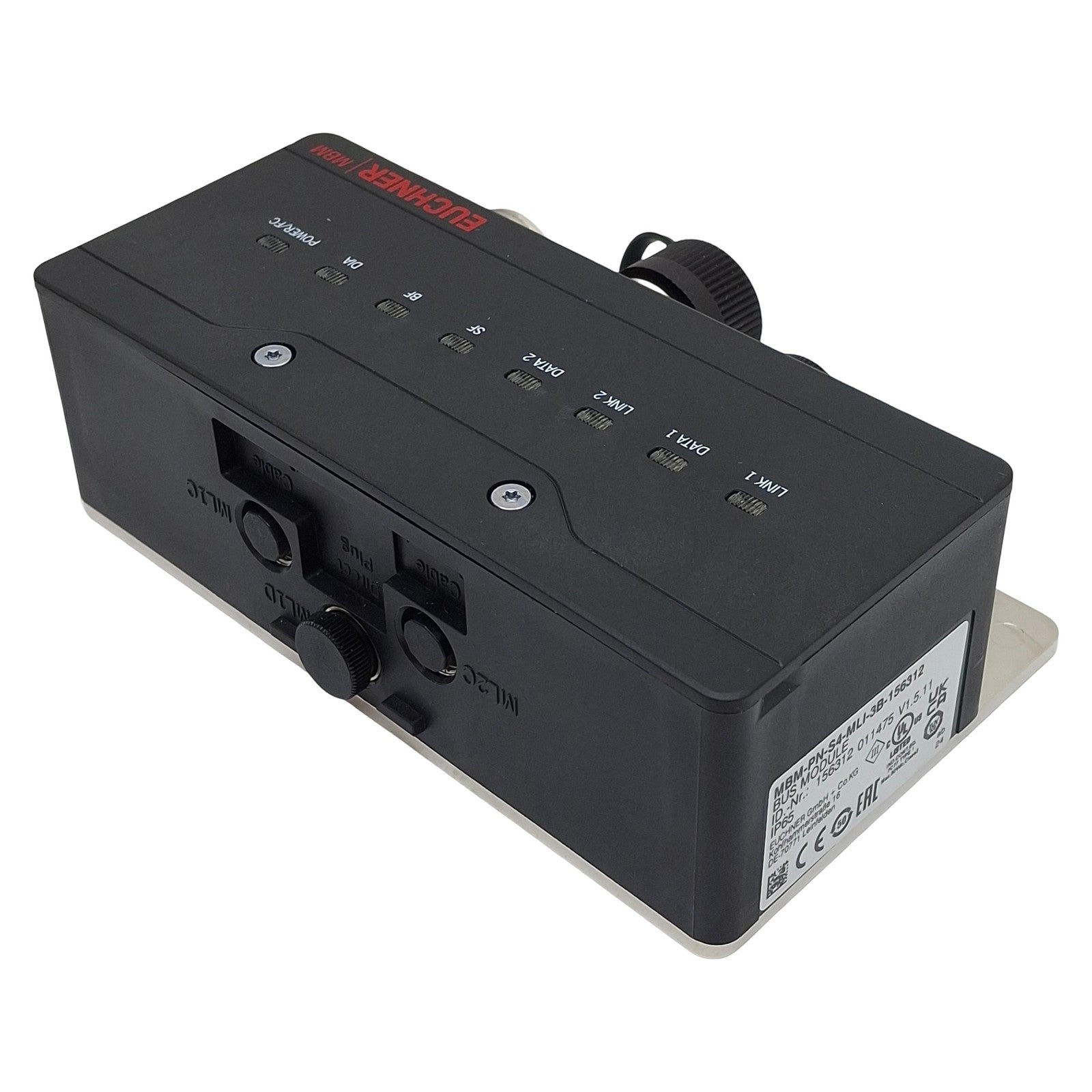

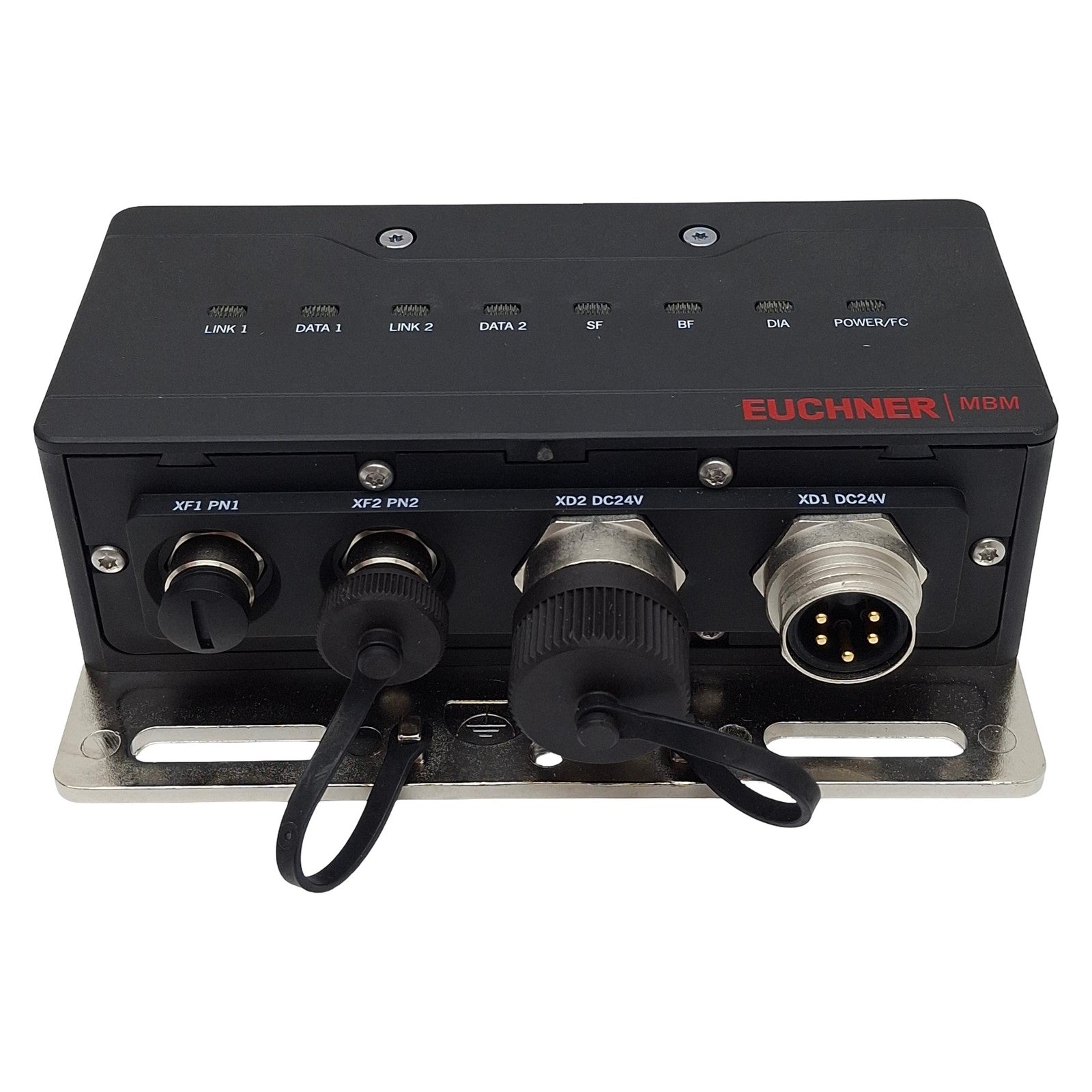

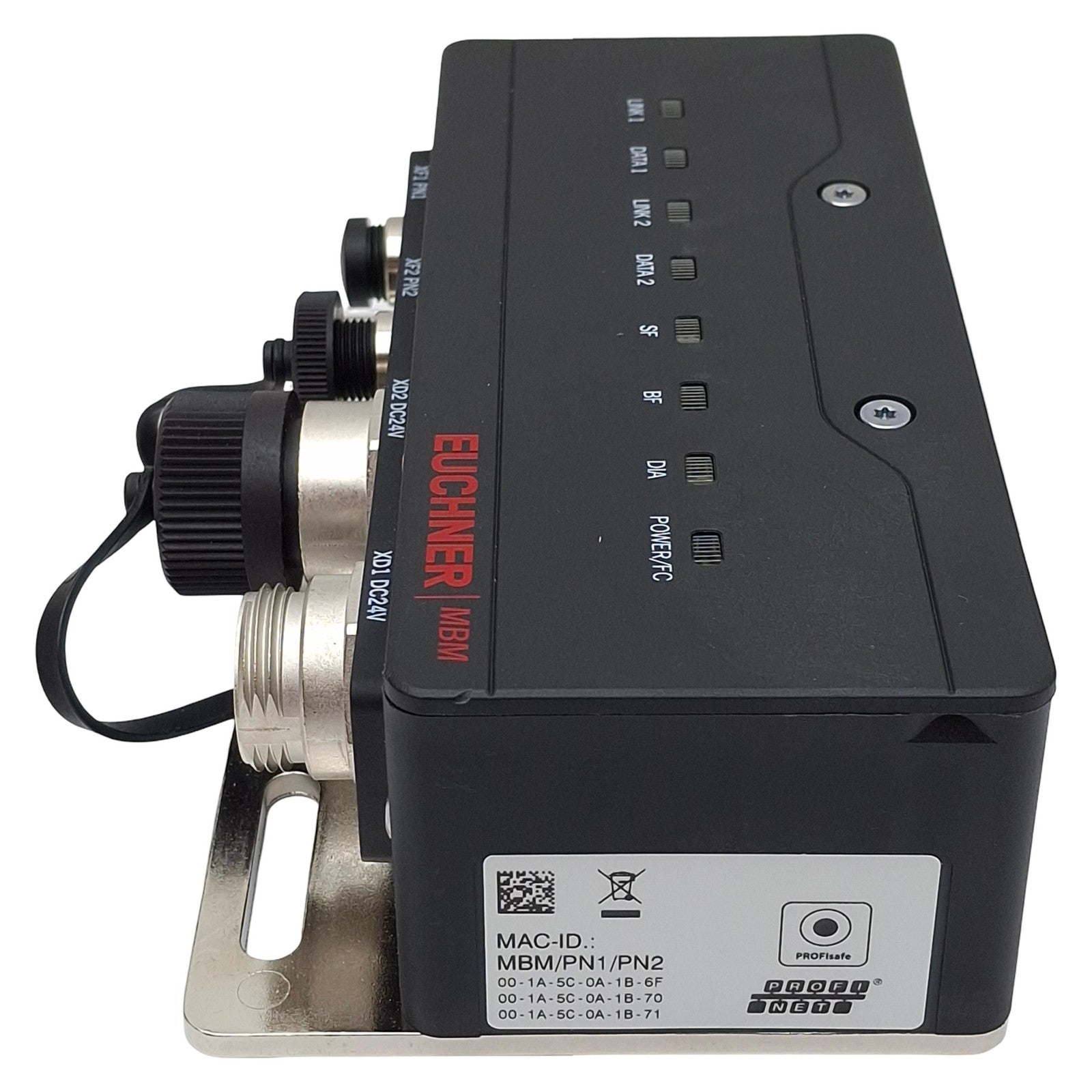

Euchner MBM-PN-S4-MLI-3B-156312 PROFINET PROFIsafe Bus Module
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MBM-PN-S4-MLI-3B-156312
Description
Euchner MBM-PN-S4-MLI-3B-156312 is a PROFINET bus module designed to connect Euchner MGB2 Modular and MCM Modular devices to PROFINET with PROFIsafe. It features M12 D-coded PROFINET connections, an integrated network switch, and MLI interfaces for direct or cable-based module connections.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Industrial Automation |
| Part Number | MBM-PN-S4-MLI-3B-156312 |
| Subcategory | PROFINET Bus Modules |
| Order Number | 156312 |
| Series | MBM |
| Module Type | PROFINET Bus Module |
| Communication Protocol | PROFINET / PROFIsafe |
| PROFINET Connector | M12 D-coded |
| PROFINET Standard | IEC 61158 Type 10 |
| Safety Protocol Standard | IEC 61784-3-3 |
| MLI Connection | 5-pin M12x1 |
| MLI Interfaces | 2 × cable connection or 1 × direct plug |
| Power Connector | 7/8-inch Power |
| Operating Voltage | 24 V DC -15% ... +15% |
| Current Consumption | Max. 150 mA |
| Maximum Feed-In Current | 6000 mA |
| Rated Insulation Voltage | 75 V |
| Rated Impulse Voltage | 0.5 kV |
| Protection Rating | IP65 |
| Ambient Temperature | -25 to +55 °C at 24 V DC |
| Storage Temperature | -25 to +70 °C |
| Safety Performance | PL e, Category 4, maximum SIL 3 |
| Weight | 0.12 kg |
Information About MBM-PN-S4-MLI-3B-156312
The MBM-PN-S4-MLI-3B-156312 is part of the Euchner MBM family of modular bus interfaces for machine safety systems. The module provides communication between compatible Modular devices and a PROFINET/PROFIsafe control network. Its integrated switch supports linear network topology and MRP, while the MLI interfaces allow an MGB2 Modular or MCM Modular device to be connected directly or through an M12 cable. The unit operates from a 24 V DC supply and uses M12 D-coded connectors for PROFINET communication.
Key Features:
- PROFINET Interface: Provides PROFINET communication through M12 D-coded connectors.
- PROFIsafe Support: Enables safety-related communication using the PROFIsafe protocol.
- Integrated Switch: Supports linear network topology and Media Redundancy Protocol (MRP).
- MLI Connections: Provides interfaces for connecting compatible MGB2 Modular and MCM Modular devices.
- Flexible Installation: Supports direct mounting or remote installation depending on system configuration.
- Power Connection: Uses 7/8-inch power connectors for 24 V DC supply connections.
- Modular Compatibility: Designed for use with Euchner Modular devices.
- Safety Architecture: Supports safety signals up to PL e, Category 4, according to EN ISO 13849-1.
The MBM-PN-S4-MLI-3B-156312 delivers the reliability and precision required for industrial PROFINET communication and machine safety integration.
