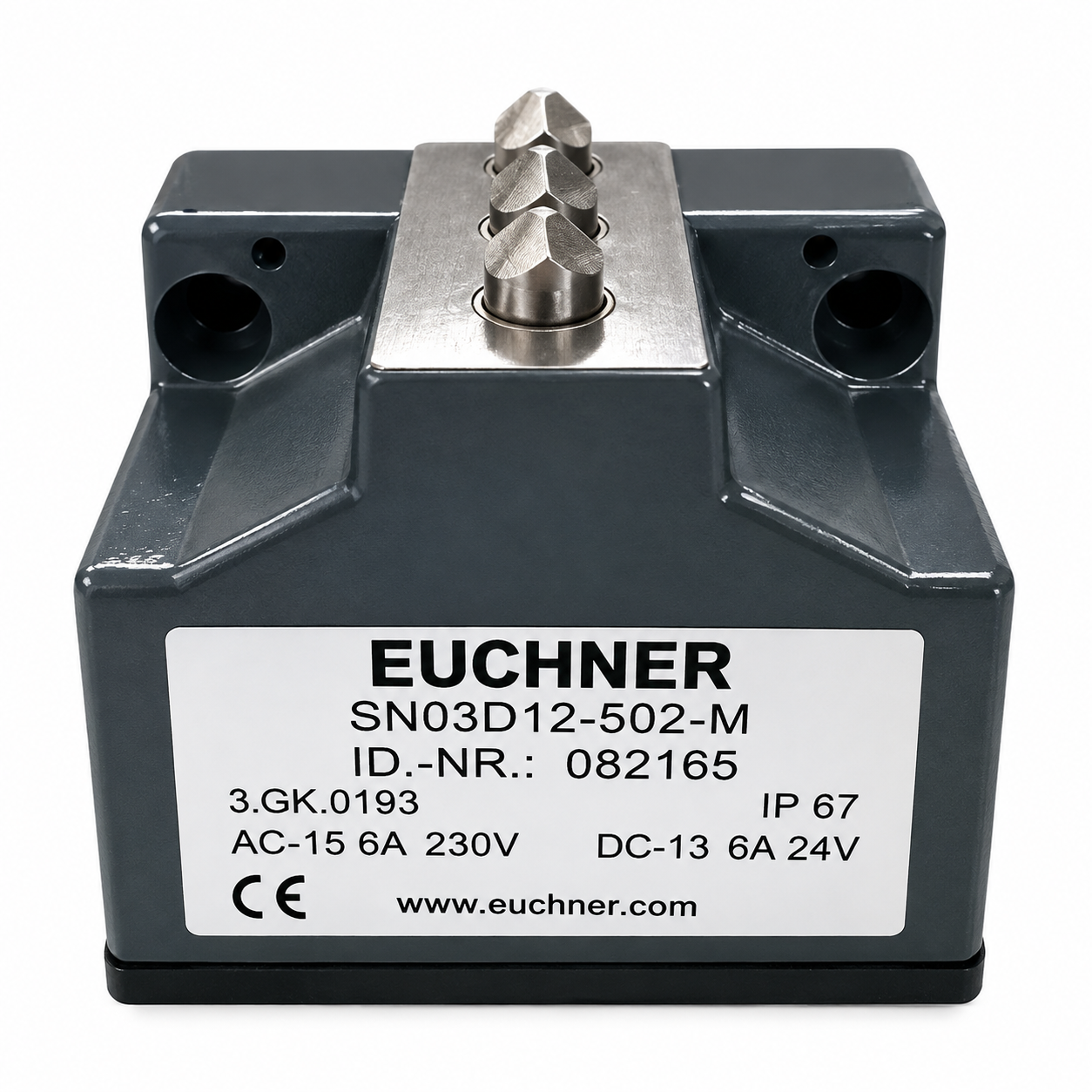

Euchner SN03D12-502-M Precision Mechanical Multiple Limit Switch
- Regular price
- $417.00
- Sale price
- $417.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SN03D12-502-M
Description
The Euchner SN03D12-502-M is a precision mechanical multiple limit switch designed for accurate position sensing in industrial machinery and automation systems. It features 12 mm plunger spacing, three snap-action switching elements, a chisel-plunger actuator, and IP67 protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Industrial Automation |
| Part Number | SN03D12-502-M |
| Subcategory | Multiple Limit Switches / Position Switches |
| Product Type | Precision Mechanical Multiple Limit Switch |
| Order Number | 082164 |
| Series | SN Series |
| Plunger Spacing | 12 mm |
| Actuating Element | Chisel Plunger |
| Number of Switching Elements | 3 |
| Switching Principle | Snap-Action Switching |
| AC-12 Rating | 8 A at 250 V |
| AC-15 Rating | 6 A at 230 V |
| DC-13 Rating | 6 A at 24 V |
| Rated Insulation Voltage | 250 V |
| Rated Impulse Voltage | 2.5 kV |
| Connection | 2 × M20 × 1.5 |
| Actuating Force | Minimum 20 N |
| Mechanical Life | 30 × 10⁶ cycles |
| Housing Material | Anodized Die-Cast Aluminum |
| Contact Material | Silver Alloy, Gold Flashed |
| Protection Rating | IP67 |
| Ambient Temperature | -5 to +80°C |
| Weight | 0.66 lb |
Information About SN03D12-502-M
The SN03D12-502-M belongs to the Euchner SN series of precision multiple limit switches with 12 mm plunger spacing. Its upright housing with a small flange provides a compact configuration for industrial installations. The unit uses ES 502 E snap-action switching elements with silver-alloy, gold-flashed contacts. The anodized die-cast aluminum housing and IP67 rating support reliable operation in demanding industrial environments.
Key Features:
- Precision Switching: Designed for accurate mechanical position detection.
- 12 mm Plunger Spacing: Provides a compact multi-position configuration.
- Chisel Plunger: Provides precise mechanical actuation.
- Three Switching Elements: Includes three switching elements with three NC and three NO contacts.
- Snap-Action Contacts: Uses ES 502 E switching technology.
- IP67 Protection: Protects against dust and temporary water immersion.
- Aluminum Housing: Anodized die-cast aluminum provides durable construction.
- Long Mechanical Life: Rated for up to 30 million switching cycles.
The SN03D12-502-M delivers precise and durable position sensing for industrial machinery and automated equipment.
