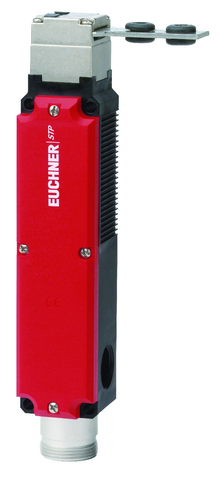

Euchner STP3A-4131A024-10C-DCX 24V Safety Interlock Switch with Solenoid Locking
- Regular price
- $502.00
- Sale price
- $502.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: STP3A-4131A024-10C-DCX
Description
The Euchner STP3A-4131A024-10C-DCX is a safety interlock switch with solenoid guard locking for monitoring machine guards and controlled access points. It operates with a 24 V AC/DC solenoid, provides up to 2500 N locking force, and uses positively driven contacts for monitoring the guard-locking state.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Safety Switches |
| Part Number | STP3A-4131A024-10C-DCX |
| Subcategory | Safety Interlock Switches |
| Series | STP |
| Solenoid Voltage | 24 V AC/DC |
| Power | 8 W |
| Holding Force | 2000 N |
| Connection | BHA10 plug connector |
| Pin Count | 10-pin male |
| Protection | IP65 |
| Insulation Voltage | 50 V |
| Thermal Current | 4 A |
| Retention Force | 20 N |
| Mechanical Life | 1 × 10⁶ cycles |
| Ambient Temperature | -20 °C to +55 °C |
| Storage Temperature | -25 °C to +70 °C |
| Housing Material | Reinforced thermoplastic |
| Contact Material | Silver alloy, gold flashed |
| Guard Locking | Closed-circuit current principle |
| Insertion Depth | 24.5 mm |
| Weight | 1.05 lb |
Information About STP3A-4131A024-10C-DCX
The STP3A-4131A024-10C-DCX belongs to the Euchner STP series of safety interlock switches designed for industrial machinery and guarded access applications. Its reinforced thermoplastic housing incorporates a slow-action switching mechanism and a BHA10 plug connector for electrical connection. The closed-circuit current principle provides spring-force guard locking, with the solenoid releasing the lock when energized. The switch supports any installation orientation and includes an aluminum die-cast head with an approach direction designated as A.
Key Features:
- Safety Interlock: Monitors machine guard position and provides controlled access protection.
- Solenoid Locking: Uses a 24 V AC/DC solenoid with 100% duty cycle for guard locking.
- Locking Force: Provides a maximum locking force of 2500 N and an FZh value of 2000 N.
- Contact Configuration: Includes 1 door-position NO contact, 1 guard-lock monitoring NO contact, and 2 positively driven contacts.
- Plug Connection: Uses a BHA10 plug connector with 10-pin male connection.
- Switching Mechanism: Features slow-action switching contacts for defined electrical operation.
- Protection Rating: Provides IP65 protection for industrial installation environments.
- Mechanical Life: Rated for 1 × 10⁶ operating cycles with an actuation frequency up to 1200 cycles/h.
The STP3A-4131A024-10C-DCX delivers the reliability and precision required for safety interlocking and guarded machine access applications.
