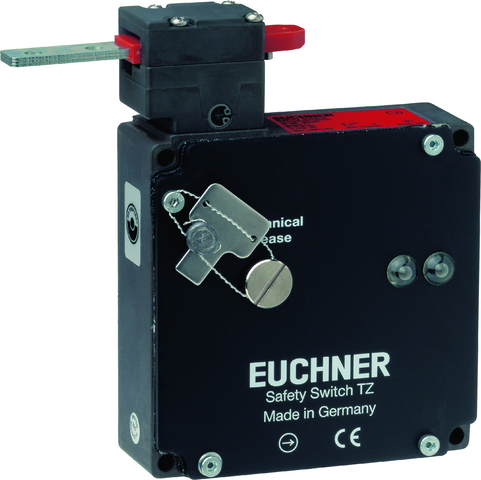

Euchner TZ1LE024MVAB 24V Guard Locking Safety Switch with Escape Release
- Regular price
- $867.00
- Sale price
- $867.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TZ1LE024MVAB
Description
The Euchner TZ1LE024MVAB is a safety switch with integrated guard locking for monitoring and controlling access to hazardous machine areas. It operates on 24 V AC/DC, provides up to 2000 N locking force, and combines door-position monitoring with guard-lock monitoring in an IP67-rated housing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Safety Switches |
| Part Number | TZ1LE024MVAB |
| Subcategory | Guard Locking Safety Switches |
| Series | TZ |
| Voltage | 24 V AC/DC |
| Power | 10 W |
| Protection | IP67 |
| Holding Force | 1500 N |
| Lock Contacts | 2 positively driven + 2 NO |
| Cable Entry | M20 × 1.5 |
| Switching Principle | Slow-action |
| Insulation Voltage | 250 V |
| Thermal Current | 4 A |
| Actuation Frequency | Max. 1200 cycles/h |
| Ambient Temperature | -25 °C to +80 °C |
| Housing Material | Anodized die-cast alloy |
| Indicator | LED |
| Weight | 3.00 lb |
Information About TZ1LE024MVAB
The TZ1LE024MVAB belongs to the Euchner TZ series of electromechanical safety switches designed for machine guards, access doors, safety gates, and automated equipment. Its anodized die-cast alloy housing incorporates a slow-action switching mechanism with positively driven contacts for both guard position and locking-state monitoring. The closed-circuit current principle keeps the guard locked by spring force, while the 24 V AC/DC solenoid releases the locking mechanism when energized. The unit features an M20 × 1.5 cable entry, LED indication, and an escape release with key button for applications requiring controlled access from within a guarded area.
Key Features:
- Guard Locking: Provides spring-force guard locking with a maximum locking force of 2000 N.
- Dual Monitoring: Monitors both door position and guard-lock status through dedicated contacts.
- Solenoid Operation: Uses a 24 V AC/DC solenoid with 100% duty cycle.
- Contact Configuration: Includes 3 positively driven door-position contacts and 2 positively driven guard-lock monitoring contacts.
- Housing Construction: Uses a durable anodized die-cast alloy housing with a black lid.
- Escape Release: Includes an escape release with key button for controlled emergency access.
- Cable Entry: Features an M20 × 1.5 threaded cable entry for electrical connection.
- Environmental Protection: Provides IP67 protection and operates from -25 °C to +80 °C.
The TZ1LE024MVAB delivers the reliability and precision required for machine guard locking and hazardous-area access control applications.
