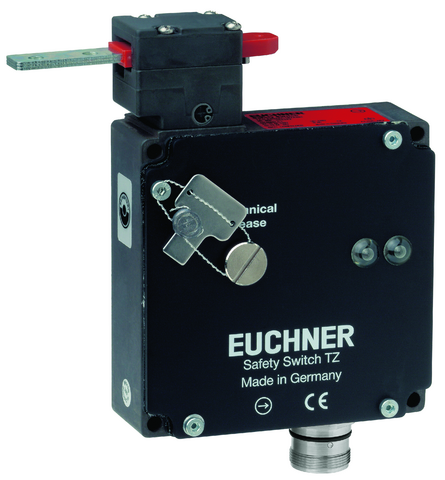

Euchner TZ1LE024RC18VAB-C1826 Safety Switch with Guard Locking
- Regular price
- $1,075.00
- Sale price
- $1,075.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TZ1LE024RC18VAB-C1826
Description
The Euchner TZ1LE024RC18VAB-C1826 is a safety switch with a separate actuator, mechanical guard locking, and integrated guard lock monitoring. It operates with a 24 V AC/DC solenoid and uses an RC18 plug connector for electrical connection. The switch provides a 2000 N maximum locking force and IP65 protection for industrial machine guarding applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Electrical Products |
| Part Number | TZ1LE024RC18VAB-C1826 |
| Subcategory | Safety Switch |
| Series | TZ |
| Guard Locking | Mechanical Guard Lock |
| Guard Locking Principle | Closed-Circuit Current Principle |
| Solenoid Operating Voltage | 24 V AC/DC |
| Power Consumption | 10 W |
| Connection | 1 × RC18 Plug Connector |
| Door Position Contacts | 3NC / 1NO |
| Guard Locking Contacts | 2NC / 2NO |
| Maximum Locking Force Fmax | 2000 N |
| Assured Locking Force FZh | 1500 N |
| Housing Material | Anodized Die-Cast Alloy |
| Contact Material | Silver Alloy, Gold Flashed |
| Protection Rating | IP65 |
| Ambient Temperature | -25 to +80 °C |
| Mechanical Life | 1 × 10⁶ Operations |
| Approach Speed | Max. 20 m/min |
| Actuation Frequency | Max. 1200 Operations/h |
| Rated Impulse Voltage Uimp | 1.5 kV |
| Weight | 3.00 lb |
Information About TZ1LE024RC18VAB-C1826
The TZ1LE024RC18VAB-C1826 is part of the Euchner TZ series of safety switches with separate actuators. Its left-mounted actuating head uses a slow-action switching mechanism with 3NC/1NO door-position contacts and 2NC/2NO guard-locking contacts. The anodized die-cast alloy housing is designed for installation in any orientation and incorporates a black cover. The closed-circuit current principle and integrated guard lock monitoring support controlled access to guarded machinery.
Key Features:
- Safety Switch: Industrial safety switch with separate actuator for machine guard monitoring.
- Guard Locking: Mechanical guard locking provides a maximum locking force of 2000 N.
- Guard Monitoring: Integrated guard lock monitoring uses positively driven contacts for safety control.
- Solenoid Voltage: Operates with a 24 V AC/DC solenoid supply with -15% to +10% tolerance.
- Connection: Uses an RC18 plug connector for electrical integration.
- Contact Configuration: Includes 3NC/1NO door-position contacts and 2NC/2NO guard-locking contacts.
- Housing: Anodized die-cast alloy housing with IP65 protection for industrial environments.
- Actuation: Left switch head with slow-action switching and a maximum actuation frequency of 1200 operations per hour.
The TZ1LE024RC18VAB-C1826 delivers the reliability and precision required for industrial machine guarding and safety interlock applications.
