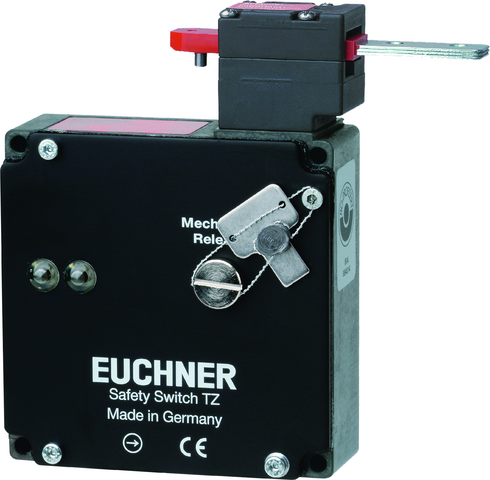

Euchner TZ1RE024MVAB 24 VAC/DC Solenoid Locking Safety Interlock Switch
- Regular price
- $822.00
- Sale price
- $822.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TZ1RE024MVAB
Description
The Euchner TZ1RE024MVAB is a safety interlock switch with solenoid guard locking, designed for monitoring and securing movable machine guards. It operates on 24 VAC/DC, features a metal housing, slow-action switching contacts, and IP67 protection for demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Controls |
| Part Number | TZ1RE024MVAB |
| Subcategory | Safety Interlock Switches |
| Voltage | 24 VAC/DC |
| Power | 10 W |
| Ui | 250 V |
| Uimp | 2.5 kV |
| Connection | M20 × 1.5 |
| Switch | Slow-action |
| Speed | 20 m/min max. |
| Frequency | 1200/h max. |
| Depth | 52 mm |
| Life | 1 × 10⁶ |
| IP | IP67 |
| Ambient | -25 to 80 °C |
| Housing | Die-cast alloy |
| Contacts | Silver alloy, gold flashed |
| Weight | 2.71 lbs |
Information About TZ1RE024MVAB
The TZ1RE024MVAB is part of the Euchner safety switch range and uses a mechanical guard-locking mechanism with a separate actuator. It provides dedicated door-position and guard-lock monitoring contacts for reliable safety circuit integration. The switch has an M20 x 1.5 connection and a right-positioned actuating head for left and top opening applications. Its anodized die-cast alloy housing and IP67 protection support installation in environments where resistance to dust and water is required.
Key Features:
- Solenoid Locking: 24 VAC/DC operation with 100% solenoid duty cycle.
- Switching Contacts: 3 positively driven door-position contacts and 2 positively driven guard-lock monitoring contacts.
- Auxiliary Contacts: 1 door-position NO contact and 2 guard-lock monitoring NO contacts.
- Guard Locking: Mechanical guard lock with a separate actuator.
- Connection: M20 x 1.5 cable connection with 0.34–1.5 mm² conductor cross section.
- Protection: IP67 enclosure protection for industrial installation environments.
- Housing: Anodized die-cast alloy construction with a black lid.
- Operating Range: Ambient temperature from -25 to 80 °C and mechanical life of 1 × 10⁶ cycles.
The TZ1RE024MVAB delivers the reliability and precision required for machine guard monitoring and safety interlock applications.
