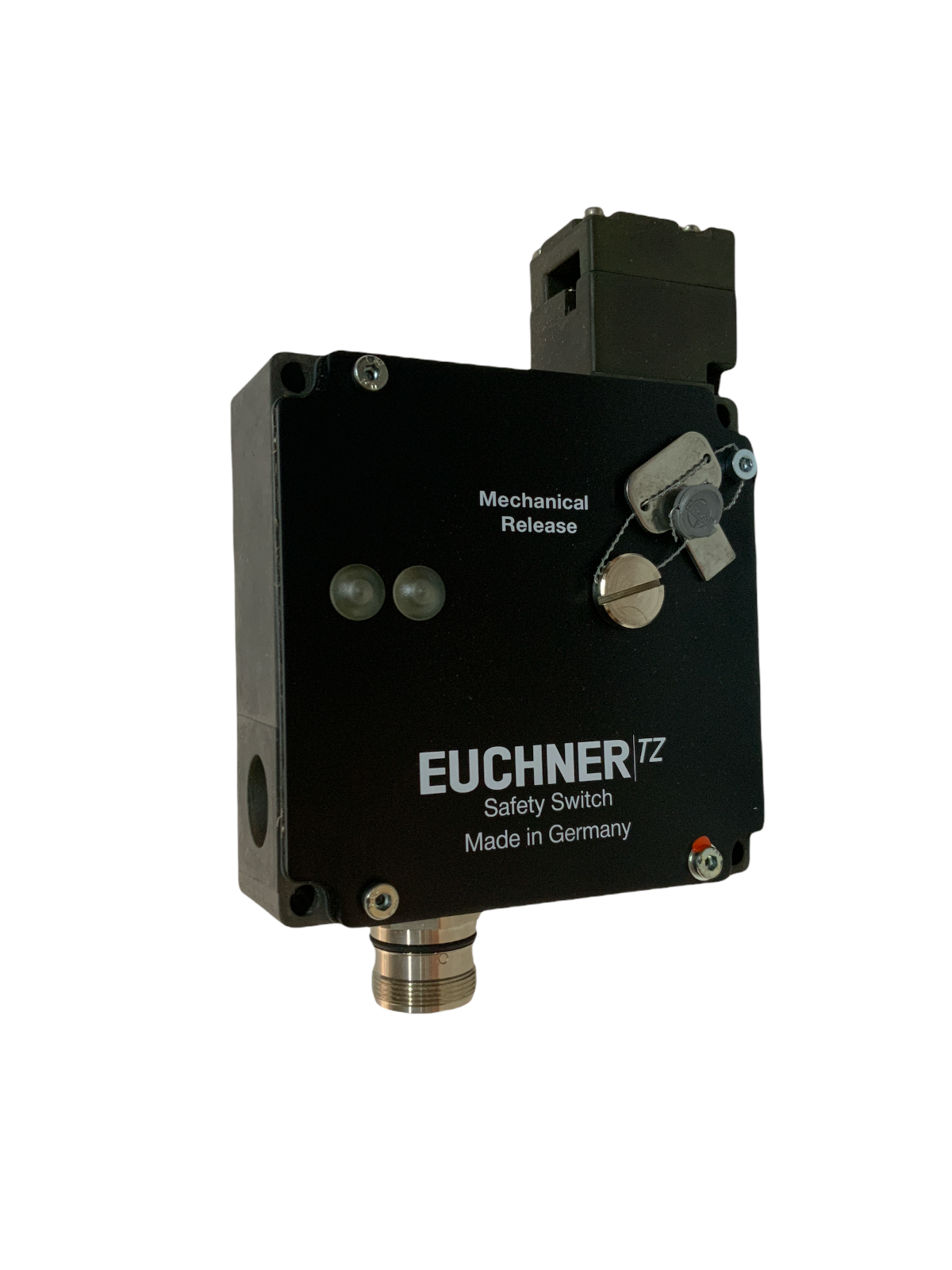

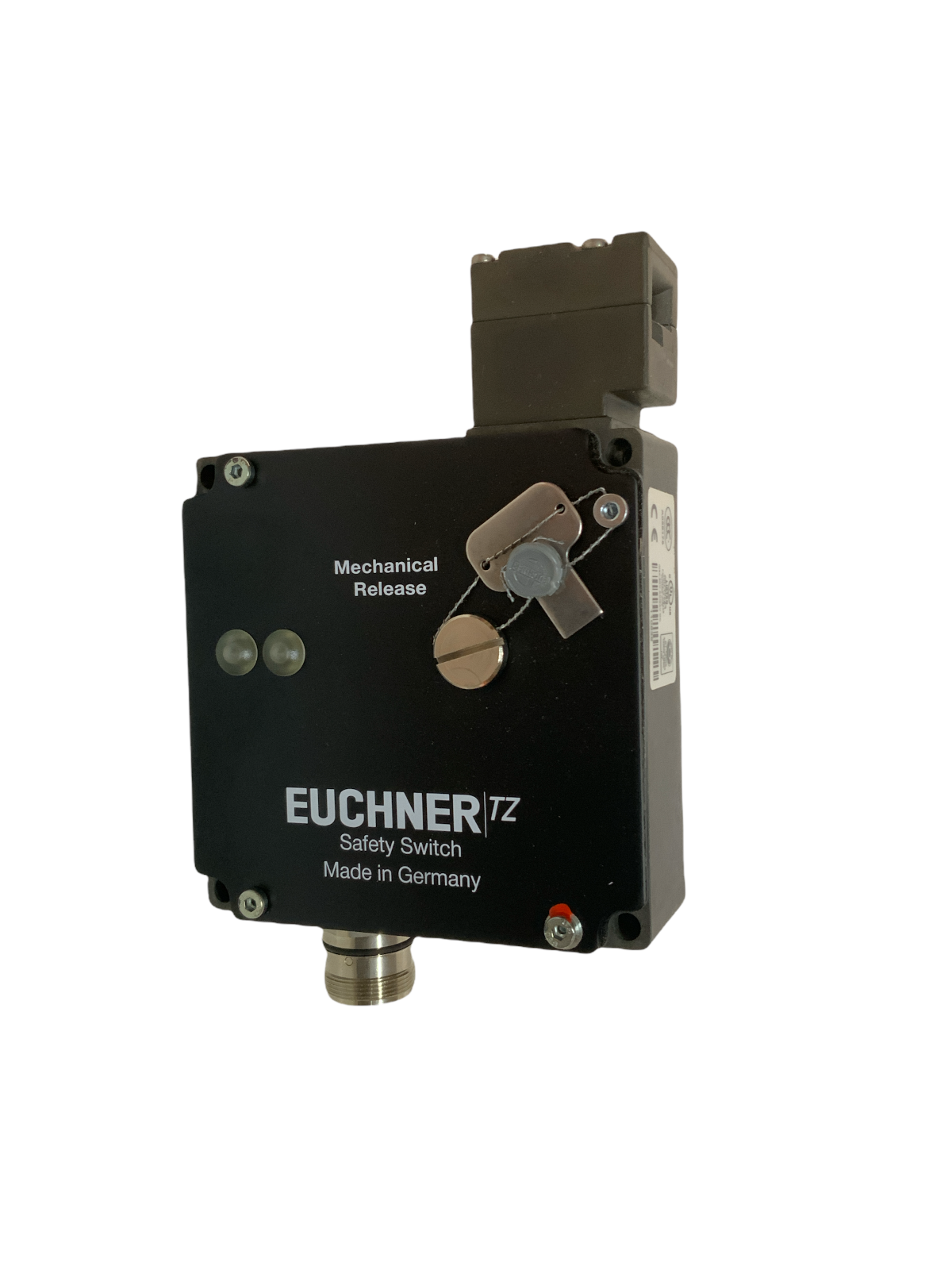

Euchner TZ2RE024RC18VAB-C1826 Safety Switch with Guard Locking
- Regular price
- $1,127.00
- Sale price
- $1,127.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TZ2RE024RC18VAB-C1826
Description
Euchner TZ2RE024RC18VAB-C1826 is an electromechanical safety switch with guard locking for monitoring protective doors and machine guards. It uses a 24 V AC/DC solenoid, an M23 RC18 plug connector, right-mounted actuating head, auxiliary release, and integrated red and green LED indicators.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Industrial Automation |
| Part Number | TZ2RE024RC18VAB-C1826 |
| Subcategory | Safety Switches |
| Order Number | 085181 |
| Series | TZ |
| Switch Type | Safety Switch with Guard Locking |
| Guard Locking Principle | Open-circuit current principle |
| Solenoid Voltage | 24 V AC/DC, -15% ... +10% |
| Solenoid Duty Cycle | 100% |
| Connection Type | M23 plug connector, RC18 |
| Door Position Contacts | 2 positively driven NC + 1 NO |
| Guard Lock Monitoring Contacts | 2 positively driven NC + 2 NO |
| Switching Principle | Slow-action switching contact |
| Locking Force Fmax | 2000 N |
| Locking Force FZh | 1500 N |
| Protection Rating | IP65 |
| Mechanical Life | 1 × 10⁶ cycles |
| Actuation Frequency | Max. 1200 cycles/h |
| Approach Speed | Max. 20 m/min |
| Actuating Force | 35 N |
| Ambient Temperature | -25 to +80 °C |
| Weight | 0.12 kg |
Information About TZ2RE024RC18VAB-C1826
The TZ2RE024RC18VAB-C1826 belongs to the Euchner TZ series of safety switches with guard locking and guard-lock monitoring. The switch uses the open-circuit current principle, with the guard locked when voltage is applied to the solenoid and released by spring force when power is interrupted. Its switching configuration provides positively driven contacts for both door-position monitoring and guard-lock monitoring. The C1826 designation specifies special wiring, while the M23 RC18 connector provides the electrical interface for the switch.
Key Features:
- Guard Locking: Provides electrical guard locking using the open-circuit current principle.
- 24 V Solenoid: Operates with 24 V AC/DC at -15% to +10%.
- RC18 Connection: Uses an M23 RC18 plug connector for electrical connection.
- Auxiliary Release: Front-mounted auxiliary release allows manual unlocking when required.
- LED Indicators: Includes freely assignable red and green LED indicators.
- Right Actuating Head: Features a right-mounted actuating head with adjustable approach direction.
- Safety Contacts: Provides positively driven contacts for door and guard-lock monitoring.
- Robust Housing: Uses an anodized die-cast alloy housing with IP65 protection.
The TZ2RE024RC18VAB-C1826 delivers the reliability and precision required for protective door monitoring and machine guard locking.
