Euchner ZXE-104833 3-Stage Dual-Channel Enabling Pushbutton
- Regular price
- $442.00
- Sale price
- $442.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ZXE-104833
Description
The Euchner ZXE-104833 is a three-stage enabling pushbutton designed for operator control in safety-related industrial machinery. It features two normally open contacts, snap-action switching with tactile click feedback, and a dual-channel configuration with screw-terminal connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Pilot Devices |
| Part Number | ZXE-104833 |
| Subcategory | Pushbutton |
| Operation | 3-stage |
| Contacts | 2 NO |
| Channels | Dual channel |
| Connection | 4-pin screw terminal |
| Voltage Ui | 30 V |
| Switching Current | 5–100 mA |
| Rated Actuating Force | 100 N |
| Protection | IP65 |
| Ambient Temperature | -5 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Fuse | 0.1 A medium slow-blow |
| Weight | 0.05 lb |
Information About ZXE-104833

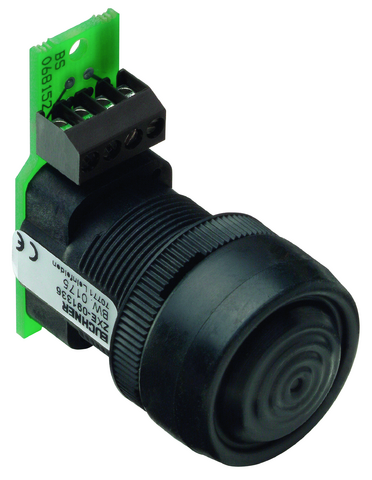

The ZXE-104833 is an enabling device with a compact 22.5 mm design and a black cap and housing for integration into industrial control panels. Its two normally open switching elements provide operator input through a 4-pin screw terminal connection with support for single or multiple conductors. The device is designed for any installation orientation and operates within an ambient temperature range of -5 °C to +60 °C. Its three-stage operation, tactile feedback, and EN 60947-5-8 compliance make it suitable for machinery requiring controlled manual enabling functions.
Key Features:
- Three-Stage Operation: Provides three distinct operating positions for controlled operator enabling.
- Dual-Channel Design: Uses two normally open contacts for safety-related control circuits.
- Snap Action: Provides defined switching action with tactile click feedback.
- Screw Terminals: Uses a 4-pin screw terminal connection for direct wiring.
- Compact Housing: Features a 22.5 mm format with black cap and housing.
- Actuating Force: Requires a maximum actuating force of 50 N.
- Environmental Range: Operates at ambient temperatures from -5 °C to +60 °C.
- Protection Rating: Provides IP65 protection under the specified installation conditions.
The ZXE-104833 delivers the reliability and precision required for operator enabling and safety control applications in industrial machinery.
Description
The Euchner ZXE-104833 is a three-stage enabling pushbutton designed for operator control in safety-related industrial machinery. It features two normally open contacts, snap-action switching with tactile click feedback, and a dual-channel configuration with screw-terminal connection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Euchner |
| Category | Pilot Devices |
| Part Number | ZXE-104833 |
| Subcategory | Pushbutton |
| Operation | 3-stage |
| Contacts | 2 NO |
| Channels | Dual channel |
| Connection | 4-pin screw terminal |
| Voltage Ui | 30 V |
| Switching Current | 5–100 mA |
| Rated Actuating Force | 100 N |
| Protection | IP65 |
| Ambient Temperature | -5 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Fuse | 0.1 A medium slow-blow |
| Weight | 0.05 lb |
Information About ZXE-104833
The ZXE-104833 is an enabling device with a compact 22.5 mm design and a black cap and housing for integration into industrial control panels. Its two normally open switching elements provide operator input through a 4-pin screw terminal connection with support for single or multiple conductors. The device is designed for any installation orientation and operates within an ambient temperature range of -5 °C to +60 °C. Its three-stage operation, tactile feedback, and EN 60947-5-8 compliance make it suitable for machinery requiring controlled manual enabling functions.
Key Features:
- Three-Stage Operation: Provides three distinct operating positions for controlled operator enabling.
- Dual-Channel Design: Uses two normally open contacts for safety-related control circuits.
- Snap Action: Provides defined switching action with tactile click feedback.
- Screw Terminals: Uses a 4-pin screw terminal connection for direct wiring.
- Compact Housing: Features a 22.5 mm format with black cap and housing.
- Actuating Force: Requires a maximum actuating force of 50 N.
- Environmental Range: Operates at ambient temperatures from -5 °C to +60 °C.
- Protection Rating: Provides IP65 protection under the specified installation conditions.
The ZXE-104833 delivers the reliability and precision required for operator enabling and safety control applications in industrial machinery.
