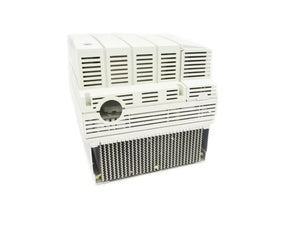

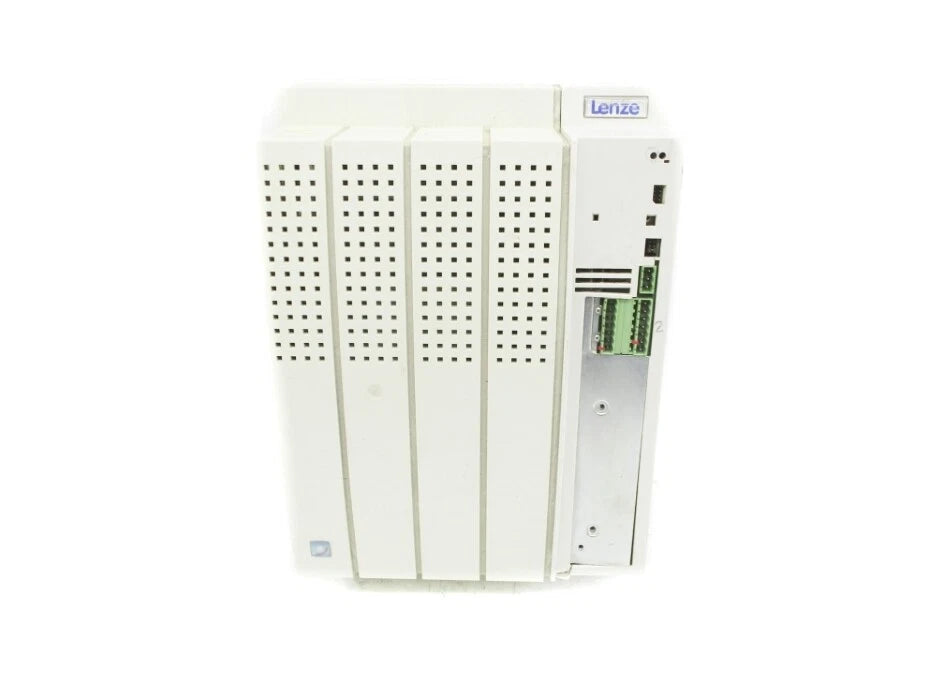

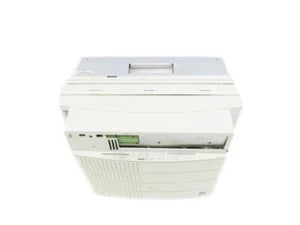

EVF8221-E | Lenze 8200 Vector 15 kW AC Drive Inverter 400/480 VAC
- Regular price
- $3,499.00
- Sale price
- $3,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVF8221-E
Description
The Lenze EVF8221-E is a robust 8200 Vector AC drive frequency inverter designed to control three-phase motors up to 15 kW. It operates on a 400/480 VAC three-phase supply and delivers adjustable output up to 0–480 VAC at 32 A for versatile speed regulation. This industrial inverter supports operation at standard 50/60 Hz and is suited for variable-speed motor applications in automated systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Motion Control |
| Part Number | EVF8221-E |
| Subcategory | AC Drives / Frequency Inverters |
| Series | 8200 Vector |
| Power Rating | 15 kW (22 kVA) |
| Input Voltage | 3/PE AC 400/480 VAC |
| Input Current | 29 A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0-480 VAC |
| Output Current | 32 A |
| Output Frequency | 0-480 Hz |
| Control Type | Variable Frequency Drive |
| Cooling | Built-in cooling (fan) |
| Mounting Type | Panel / Cabinet Mount |
| Protection / Enclosure | Standard industrial |
| Weight | 28.81 lbs (13.07 kg) |
| Application | Variable-speed motor control |
Information About EVF8221-E
The EVF8221-E is part of Lenze’s 8200 Vector frequency inverter series, a modular family of drives used in a wide range of industrial motion control applications. It accepts a three-phase AC input of 400–480 VAC and 29 A, converting it into a controlled AC output that can vary from 0 to 480 V to regulate motor speed and torque. With a power rating of 15 kW (22 kVA) and an output current capacity of 32 A, it is configured to match medium-power motor requirements. Designed for versatility and integration, the 8200 Vector drives are valued for compact dimensions and adaptability in control cabinets.
Key Features:
- 15 kW Power Rating: Delivers substantial power for medium industrial motor applications.
- 22 kVA Apparent Power: Sized for heavy continuous industrial duty.
- 480 VAC Three-Phase Input: Compatible with standard industrial power systems.
- Adjustable Output Voltage: 0–480 VAC output for flexible motor speed control.
- 32 A Output Current: Supports motors with higher current draw.
- 50/60 Hz Operation: Designed for global utility frequency standards.
- 8200 Vector Series: Part of a modular drive family with diagnostic and communication support.
- Industrial Drive Design: Suited for integration in automated machinery and control panels.
The EVF8221-E delivers the reliability and performance required for controlled variable-speed three-phase motor drives in industrial automation.
