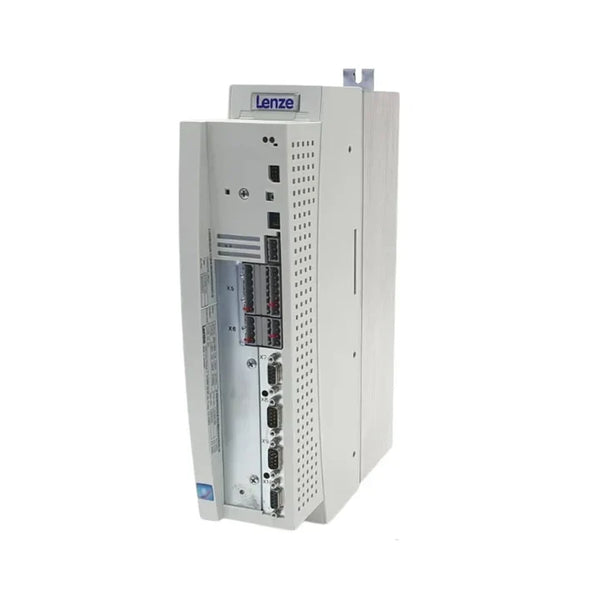

EVF9322-EV | Lenze 9300 Series 1.1kW Three-Phase Servo Driver Inverter
- Regular price
- $1,894.00
- Sale price
- $1,894.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVF9322-EV
Description
The Lenze EVF9322-EV is a 9300 Series servo driver inverter designed for precise motor speed and torque control in three-phase industrial systems. With a rated motor power of 1.1 kW and a mains voltage range of 320–440 VAC, it supports closed-loop control with flexible output frequency up to 599 Hz. This panel-mounted drive provides reliable performance for automation applications requiring compact and efficient motion control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives & Motor Controls |
| Part Number | EVF9322-EV |
| Subcategory | Servo Drives |
| Product Line | 9300 Series |
| Motor Power | 1.1 kW |
| AC Drive Phase | Three Phase |
| Mains Voltage Range | 320–440 VAC |
| AC Drive Input Voltage | 380–480 VAC |
| Voltage Tolerance | ±10% |
| Alternative DC Supply Voltage | 460–620 VDC |
| Mains Frequency | 45–65 Hz |
| Mains Current (with Choke/Filter) | 2.8 A |
| Output Frequency | 0–599 Hz |
| Output Power (2/4 kHz) | 2.1 kVA |
| Output Power (8 kHz) | 1.7 kVA |
| Heavy Duty Output | 2.5 A / 0.75 kW |
| Normal Duty Output | 3 A / 1.1 kW |
| Control Loop | Closed Loop |
| Digital Inputs | 7 |
| Analog Inputs | 2 |
| Digital Outputs | 4 |
| Analog Outputs | 2 |
| Enclosure Rating | IP20 |
| Operating Temperature | 0°C to +45°C (up to +55°C with derating) |
| Mounting Method | Back Panel Mount |
| Certifications | CE, UL, cUL |
| Power Loss | 65 W |
| Weight | Approx. 3.5 kg |
Information About EVF9322-EV
The EVF9322-EV is part of the Lenze 9300 Series and is engineered for integration into the back panel of control cabinets in industrial environments. It operates on a three-phase supply with a voltage tolerance of ±10% and can also be powered via an alternative DC supply ranging from 460–620 VDC. The drive supports both normal duty and heavy-duty operation, offering scalable performance depending on application requirements. Equipped with multiple digital and analog inputs and outputs, as well as modular fieldbus communication capability, it enables flexible integration into automated production systems.
Key Features:
- 1.1 kW Motor Power: Rated for normal duty operation up to 1.1 kW with scalable heavy-duty capability.
- Wide Voltage Compatibility: Operates within 320–440 VAC and supports 460–620 VDC alternative supply.
- High Output Frequency Range: Adjustable output frequency from 0 to 599 Hz.
- Closed-Loop Control: Ensures stable speed and torque regulation.
- Flexible I/O Configuration: 7 digital inputs, 2 analog inputs, 4 digital outputs, and 2 analog outputs.
- Modular Fieldbus Communication: Expandable via optional communication cards.
- IP20 Protection Rating: Designed for protected installation inside control cabinets.
- Certified Compliance: CE, UL, and cUL approved for industrial applications.
The EVF9322-EV delivers the reliability and precision required for controlled servo inverter operation in compact industrial automation systems.
Description
The Lenze EVF9322-EV is a 9300 Series servo driver inverter designed for precise motor speed and torque control in three-phase industrial systems. With a rated motor power of 1.1 kW and a mains voltage range of 320–440 VAC, it supports closed-loop control with flexible output frequency up to 599 Hz. This panel-mounted drive provides reliable performance for automation applications requiring compact and efficient motion control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives & Motor Controls |
| Part Number | EVF9322-EV |
| Subcategory | Servo Drives |
| Product Line | 9300 Series |
| Motor Power | 1.1 kW |
| AC Drive Phase | Three Phase |
| Mains Voltage Range | 320–440 VAC |
| AC Drive Input Voltage | 380–480 VAC |
| Voltage Tolerance | ±10% |
| Alternative DC Supply Voltage | 460–620 VDC |
| Mains Frequency | 45–65 Hz |
| Mains Current (with Choke/Filter) | 2.8 A |
| Output Frequency | 0–599 Hz |
| Output Power (2/4 kHz) | 2.1 kVA |
| Output Power (8 kHz) | 1.7 kVA |
| Heavy Duty Output | 2.5 A / 0.75 kW |
| Normal Duty Output | 3 A / 1.1 kW |
| Control Loop | Closed Loop |
| Digital Inputs | 7 |
| Analog Inputs | 2 |
| Digital Outputs | 4 |
| Analog Outputs | 2 |
| Enclosure Rating | IP20 |
| Operating Temperature | 0°C to +45°C (up to +55°C with derating) |
| Mounting Method | Back Panel Mount |
| Certifications | CE, UL, cUL |
| Power Loss | 65 W |
| Weight | Approx. 3.5 kg |
Information About EVF9322-EV
The EVF9322-EV is part of the Lenze 9300 Series and is engineered for integration into the back panel of control cabinets in industrial environments. It operates on a three-phase supply with a voltage tolerance of ±10% and can also be powered via an alternative DC supply ranging from 460–620 VDC. The drive supports both normal duty and heavy-duty operation, offering scalable performance depending on application requirements. Equipped with multiple digital and analog inputs and outputs, as well as modular fieldbus communication capability, it enables flexible integration into automated production systems.
Key Features:
- 1.1 kW Motor Power: Rated for normal duty operation up to 1.1 kW with scalable heavy-duty capability.
- Wide Voltage Compatibility: Operates within 320–440 VAC and supports 460–620 VDC alternative supply.
- High Output Frequency Range: Adjustable output frequency from 0 to 599 Hz.
- Closed-Loop Control: Ensures stable speed and torque regulation.
- Flexible I/O Configuration: 7 digital inputs, 2 analog inputs, 4 digital outputs, and 2 analog outputs.
- Modular Fieldbus Communication: Expandable via optional communication cards.
- IP20 Protection Rating: Designed for protected installation inside control cabinets.
- Certified Compliance: CE, UL, and cUL approved for industrial applications.
The EVF9322-EV delivers the reliability and precision required for controlled servo inverter operation in compact industrial automation systems.
