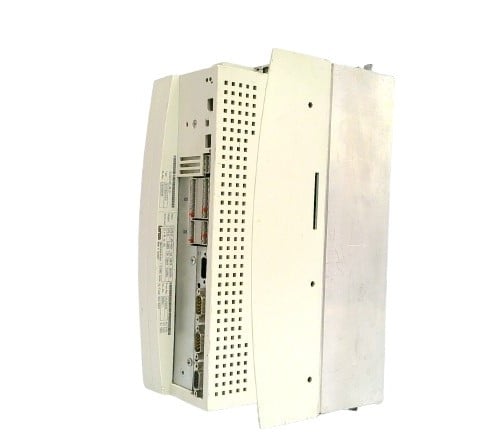

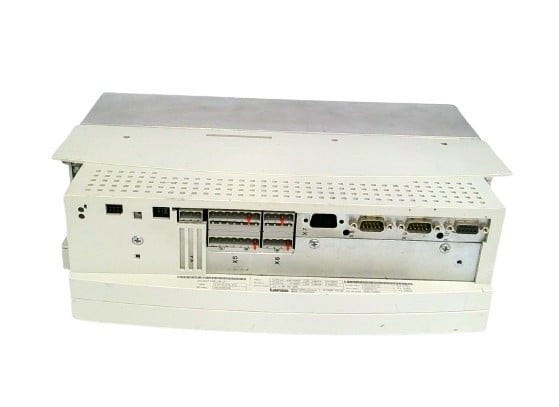

EVF9324-EV3K21 | Lenze 3.0kW 400/480VAC Frequency Inverter
- Regular price
- $4,459.00
- Sale price
- $4,459.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVF9324-EV3K21
Description
The Lenze EVF9324-EV3K21 is a 9324 series frequency inverter designed for 3.0 kW three-phase motor control applications. Operating on 400/480 VAC input at 50/60 Hz, it delivers adjustable output voltage up to 480 VAC with a rated current of 7.0 A. This inverter provides reliable variable frequency performance for industrial automation systems requiring precise speed regulation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives & Motor Control |
| Part Number | EVF9324-EV3K21 |
| Subcategory | AC Drives |
| Series | EVF 9300 |
| Drive Type | Frequency Inverter |
| Rated Power | 3.0 kW |
| Input Voltage | 3/PE AC 400/480 VAC |
| Input Current | 7.0 A |
| Apparent Power | 5.8 kVA |
| Frequency | 50/60 Hz |
| Output Voltage | 0–480 VAC |
| Output Current | 7.0 A |
| Output Frequency | 0–600 Hz |
| Overload Capacity | 1.5 × In for 60 seconds |
| Weight | Approx. 7 kg |
Information About EVF9324-EV3K21
The EVF9324-EV3K21 is part of Lenze’s EVF 9300 platform, engineered to convert fixed three-phase AC input into a controlled variable frequency output for AC motor operation. It supports 3/PE AC 400/480 VAC input with a nominal input current of 7.0 A and apparent power rating of 5.8 kVA. The output range of 0–480 VAC and frequency range of 0–600 Hz allow flexible motor speed adjustment across a wide operating spectrum. With an overload capacity of 1.5 times rated current for 60 seconds, the unit is suitable for applications with temporary peak load demands.
Key Features:
- 3.0 kW Power Rating: Designed for medium-duty three-phase motor applications.
- 400/480 VAC Input: Compatible with standard industrial power systems.
- 7.0 A Rated Current: Provides stable electrical output for controlled motor operation.
- 0–600 Hz Output Frequency: Enables wide-range motor speed control.
- 0–480 VAC Output Voltage: Adjustable voltage for optimized motor performance.
- 1.5× Overload Capacity (60 s): Supports short-term peak load conditions.
- 5.8 kVA Apparent Power Rating: Engineered for balanced industrial operation.
- EVF 9300 Platform: Built on Lenze’s established inverter drive architecture.
The EVF9324-EV3K21 delivers the reliability and precision required for variable frequency motor control in demanding industrial environments.
