EVF9327-CVV003 | Lenze 9300 Vector 400–480V 32A Frequency Inverter
- Regular price
- $4,899.00
- Sale price
- $4,899.00
- Regular price
-
Couldn't load pickup availability

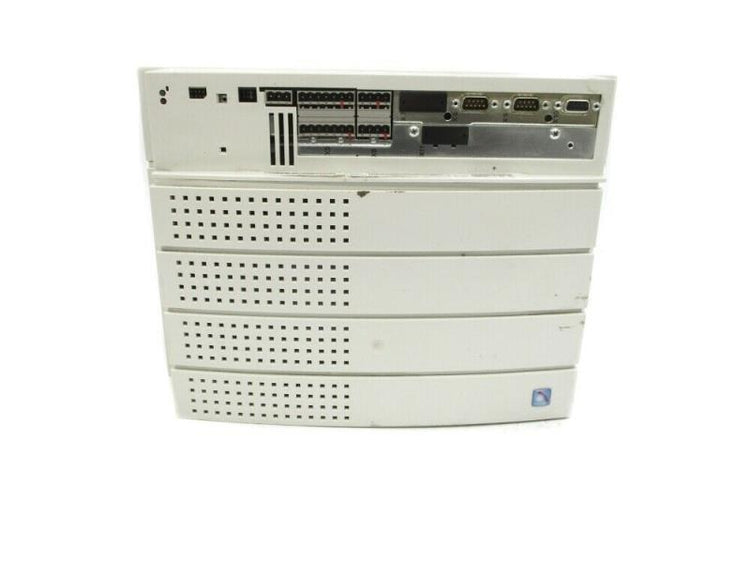

Product Description P/N: EVF9327-CVV003
Description
The Lenze EVF9327-CVV003 is a 9300 Vector series frequency inverter designed for three-phase motor control applications. It operates on a 400–480 V supply and provides rated output current up to 32 A, with a maximum permissible output of 48 A. The cold plate version supports efficient thermal management for integration into cabinet cooling systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives |
| Part Number | EVF9327-CVV003 |
| Subcategory | Drive |
| Series | 9300 Vector |
| Module Type | Frequency Inverter |
| Input Voltage | 3-Phase, 320–440 VAC |
| Voltage Rating | 400–480 VAC |
| AC Mains Frequency | 45–65 Hz |
| Rated Output Current | 43 A (2/4 kHz), 32 A (8 kHz) |
| Maximum Output Current | 48 A |
| Main Circuit Current | 39 A (with mains choke) |
| Typical Motor Power (400 V) | 22 kW / 30 HP |
| Output Power | 22.2 kVA (at 8 kHz, 400 V) |
| Power Loss | 640 W |
| Cooling Version | Cold Plate Technique |
| Status | Discontinued by Manufacturer |
| Weight | 27.87 lbs |
Information About EVF9327-CVV003
The EVF9327-CVV003 is part of the Lenze Series 9300 vector drive platform engineered for industrial variable speed motor control. It is configured as a cold plate version, allowing heat dissipation through external mounting surfaces rather than integrated heatsinks. The inverter operates within an AC mains frequency range of 45–65 Hz and supports three-phase input voltage from 320 to 440 VAC. Designed for precision motor regulation, it provides adjustable switching frequencies and controlled output for demanding automation environments.
Key Features:
-
9300 Vector Series: Designed for industrial variable frequency motor control applications.
-
3-Phase 400–480 V Operation: Compatible with standard industrial power systems.
-
32 A Rated Output Current: Continuous rated current at 8 kHz switching frequency.
-
48 A Maximum Output Current: High short-term current capability across switching frequencies.
-
Cold Plate Design: Optimized for cabinet mounting with external thermal management.
-
Adjustable Switching Frequency: Rated 43 A at 2/4 kHz and 32 A at 8 kHz.
-
45–65 Hz Mains Frequency Range: Flexible compatibility with industrial AC supplies.
-
Vector Control Performance: Supports regulated torque and speed control in motor applications.
The EVF9327-CVV003 delivers the reliability and precision required for industrial three-phase variable frequency drive applications.
Description
The Lenze EVF9327-CVV003 is a 9300 Vector series frequency inverter designed for three-phase motor control applications. It operates on a 400–480 V supply and provides rated output current up to 32 A, with a maximum permissible output of 48 A. The cold plate version supports efficient thermal management for integration into cabinet cooling systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives |
| Part Number | EVF9327-CVV003 |
| Subcategory | Drive |
| Series | 9300 Vector |
| Module Type | Frequency Inverter |
| Input Voltage | 3-Phase, 320–440 VAC |
| Voltage Rating | 400–480 VAC |
| AC Mains Frequency | 45–65 Hz |
| Rated Output Current | 43 A (2/4 kHz), 32 A (8 kHz) |
| Maximum Output Current | 48 A |
| Main Circuit Current | 39 A (with mains choke) |
| Typical Motor Power (400 V) | 22 kW / 30 HP |
| Output Power | 22.2 kVA (at 8 kHz, 400 V) |
| Power Loss | 640 W |
| Cooling Version | Cold Plate Technique |
| Status | Discontinued by Manufacturer |
| Weight | 27.87 lbs |
Information About EVF9327-CVV003
The EVF9327-CVV003 is part of the Lenze Series 9300 vector drive platform engineered for industrial variable speed motor control. It is configured as a cold plate version, allowing heat dissipation through external mounting surfaces rather than integrated heatsinks. The inverter operates within an AC mains frequency range of 45–65 Hz and supports three-phase input voltage from 320 to 440 VAC. Designed for precision motor regulation, it provides adjustable switching frequencies and controlled output for demanding automation environments.
Key Features:
-
9300 Vector Series: Designed for industrial variable frequency motor control applications.
-
3-Phase 400–480 V Operation: Compatible with standard industrial power systems.
-
32 A Rated Output Current: Continuous rated current at 8 kHz switching frequency.
-
48 A Maximum Output Current: High short-term current capability across switching frequencies.
-
Cold Plate Design: Optimized for cabinet mounting with external thermal management.
-
Adjustable Switching Frequency: Rated 43 A at 2/4 kHz and 32 A at 8 kHz.
-
45–65 Hz Mains Frequency Range: Flexible compatibility with industrial AC supplies.
-
Vector Control Performance: Supports regulated torque and speed control in motor applications.
The EVF9327-CVV003 delivers the reliability and precision required for industrial three-phase variable frequency drive applications.
