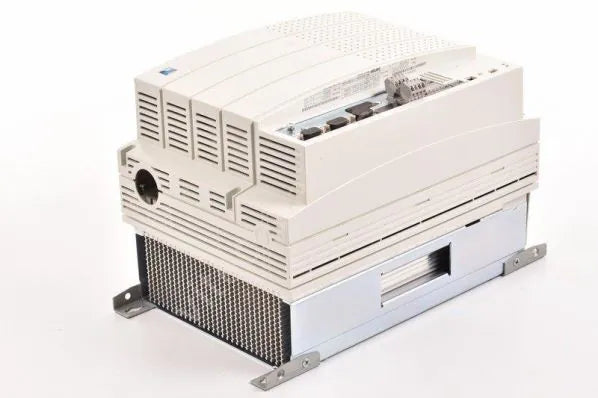

EVF9328-EHV100 | Lenze 9300 30kW 400/480V Frequency Inverter IT Variant
- Regular price
- $15,479.00
- Sale price
- $15,479.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVF9328-EHV100
Description
The Lenze EVF9328-EHV100 is a 9300 series general-purpose frequency inverter designed for three-phase industrial motor control. It operates on 400/480 VAC input at 50/60 Hz and provides adjustable output up to 480 VAC with a frequency range of 0–600 Hz. The built-in standard mounting unit is configured as an IT system variant for specialized power supply applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives |
| Part Number | EVF9328-EHV100 |
| Subcategory | Drive |
| Series | EVF9300 |
| Product Type | Frequency Inverter / AC Drive |
| Motor Power Rating | 22 kW (400 V) / 30 kW (480 V) |
| Input Voltage | 3-Phase 400/480 VAC |
| Input Current | 42 A |
| Input Apparent Power | 34.9 kVA |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–480 VAC |
| Output Current | 47 A |
| Output Frequency Range | 0–600 Hz |
| Output Apparent Power | 37.2 kVA |
| Overload Capacity | 150% for 60 seconds |
| Mounting Type | Built-In Unit (Standard Mounting) |
| Variant | IT System Variant |
| Enclosure Rating | IP20 |
| Cooling Method | Forced Air |
| Country of Origin | Germany |
| Weight | 25 kg |
Information About EVF9328-EHV100
The EVF9328-EHV100 is part of the Lenze EVF9300 platform engineered for industrial automation and variable frequency drive control. It supports three-phase input rated at 42 A and 34.9 kVA, delivering output up to 47 A and 37.2 kVA for motor operation. The inverter is designed as a built-in unit with standard panel mounting and forced air cooling. As an IT system variant, it is intended for installations with isolated or impedance-grounded supply systems, providing regulated speed and torque control for general-purpose machinery.
Key Features:
-
EVF9300 Series Platform: Designed for general-purpose industrial motor control.
-
22 kW / 30 kW Motor Rating: 22 kW at 400 V and 30 kW at 480 V applications.
-
400/480 VAC Input: Three-phase operation at 50/60 Hz.
-
0–480 VAC Output: Adjustable AC output with 0–600 Hz frequency range.
-
47 A Output Current: Rated for continuous motor operation.
-
IT System Variant: Suitable for isolated or impedance-grounded electrical systems.
-
1.5× Overload Capacity: Supports 150% rated current for 60 seconds.
-
Built-In Standard Mounting: Designed for panel installation.
-
Integrated Protection: Overcurrent, overvoltage, undervoltage, short circuit, ground fault, and motor overload protection.
The EVF9328-EHV100 delivers the reliability and precision required for industrial three-phase variable frequency drive applications.
