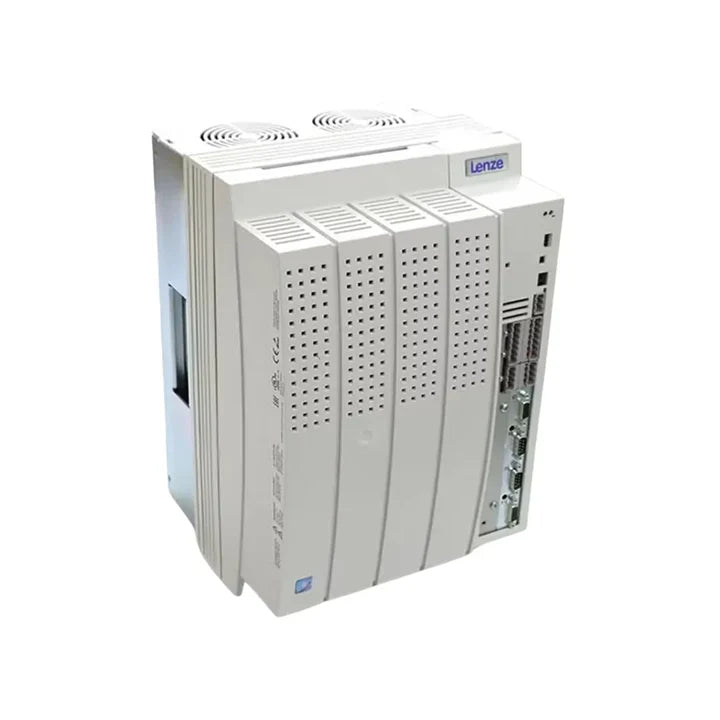

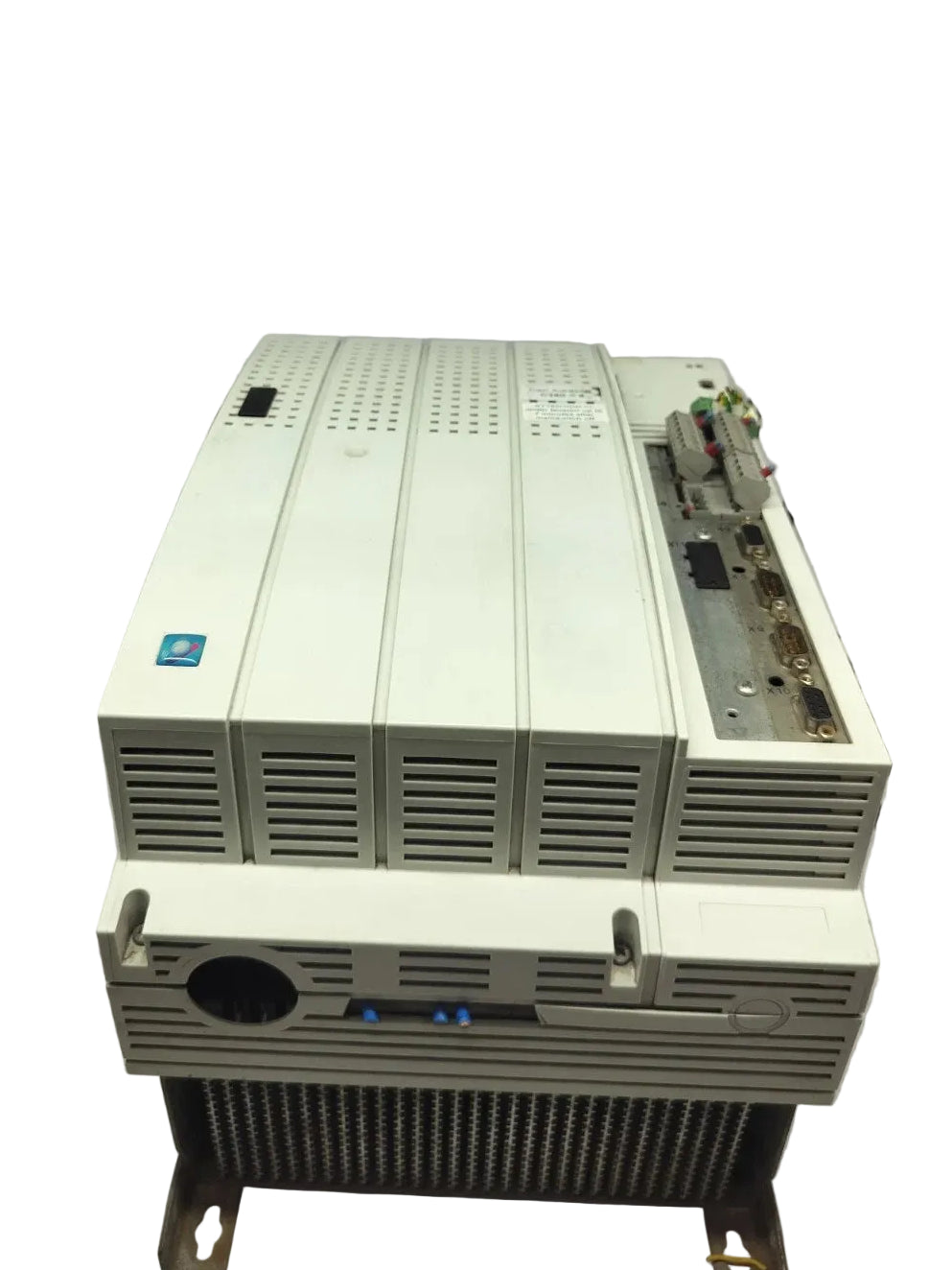

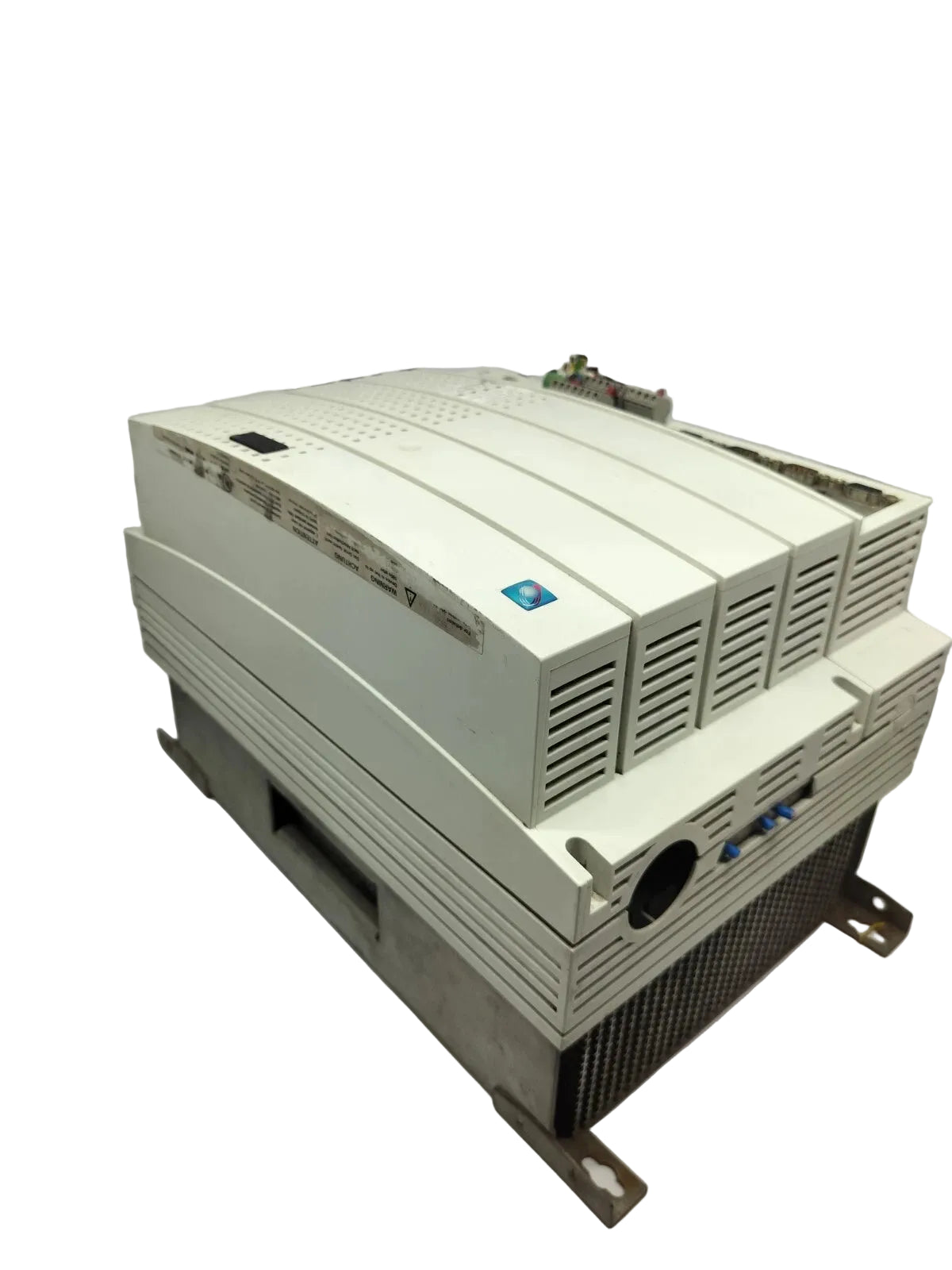

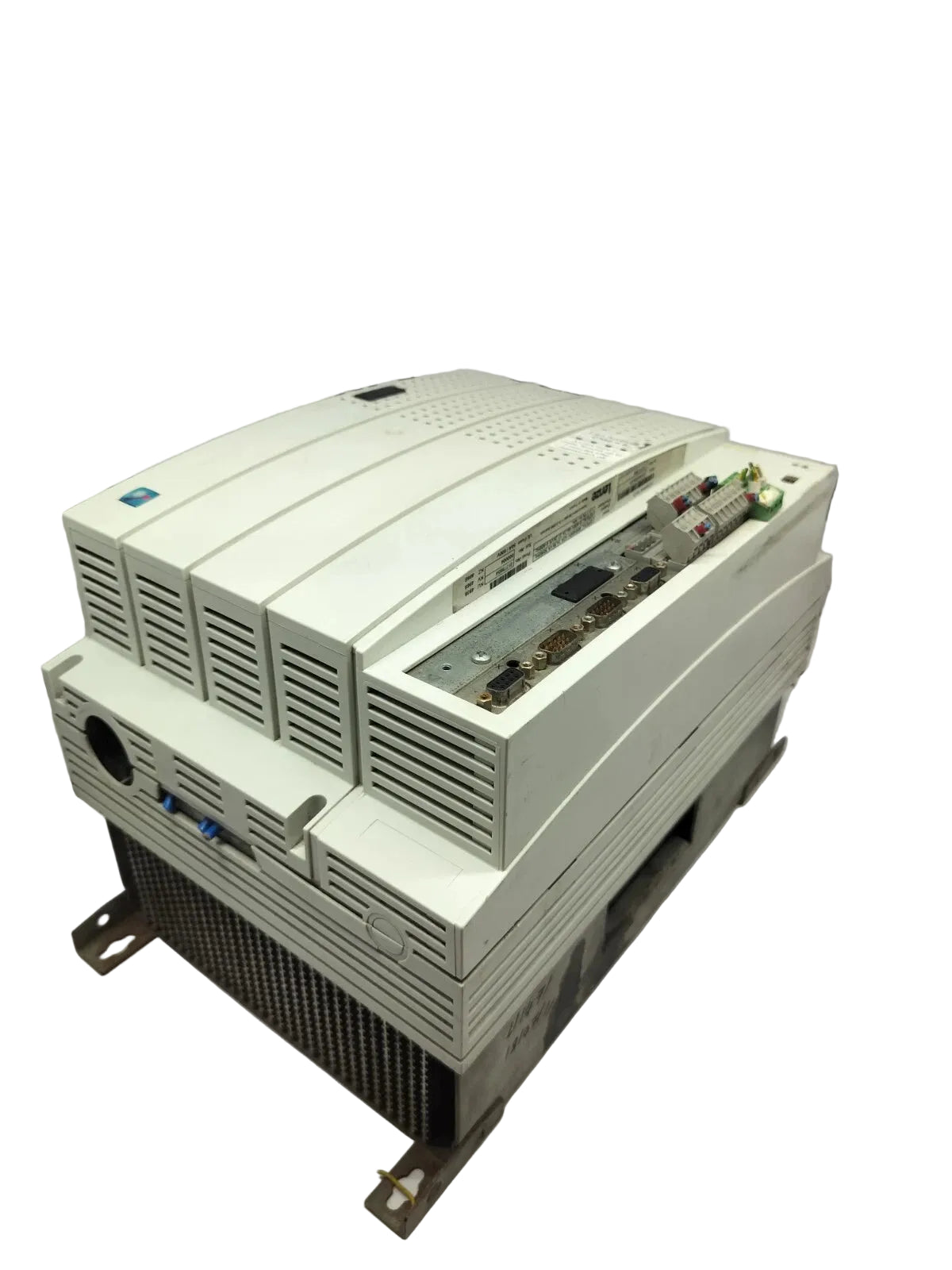

EVF9328-EV | Lenze 9300 Series Frequency Inverter 40 HP 320–440 VAC
- Regular price
- $3,569.00
- Sale price
- $3,569.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVF9328-EV
Description
The Lenze EVF9328-EV is a high-power frequency inverter engineered for precise speed and torque control of large AC motors in industrial automation systems. Designed within the 9300 series, the EVF9328-EV supports motor applications up to 40 HP and operates reliably on 320–440 VAC power supplies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Motor Controls |
| Part Number | EVF9328-EV |
| Subcategory | Frequency Inverter Drives |
| Series | 9300 Series |
| Product Type | Frequency Inverter |
| Motor Power Rating | 40 HP |
| Mains Voltage Range | 320–440 VAC |
| Input Frequency | 45–65 Hz |
| Mains Current (with choke/filter) | 50 A |
| Output Power @ 2/4 kHz | 39.5 kVA |
| Output Power @ 8 kHz | 32.6 kVA |
| Power Loss | 610 W |
| Alternative DC Supply Voltage | 460–620 VDC |
| Mounting Method | Back Panel of Control Cabinet |
| Application Type | High-Power Industrial Motor Control |
| Weight | 48.5 lbs |
Information About EVF9328-EV
The EVF9328-EV is part of Lenze’s 9300 series frequency inverter platform, developed for demanding industrial drive applications requiring high power and stable performance. It is designed for mounting on the back panel of a control cabinet, supporting efficient heat dissipation and organized system layout. The inverter accommodates both standard AC mains input and an alternative DC supply, providing flexibility in system architecture. With high current handling capability and configurable switching frequencies, it is well suited for heavy-duty machinery, process equipment, and large motor-driven systems.
Key Features:
- 9300 Series High-Power Platform: Designed for demanding industrial frequency inverter applications.
- 40 HP Motor Support: Suitable for controlling large AC motors in heavy-duty environments.
- Wide Mains Voltage Range: Operates from 320 to 440 VAC for industrial power systems.
- Flexible Power Supply Options: Supports alternative DC supply input for system integration flexibility.
- High Output Power Capability: Delivers up to 39.5 kVA depending on switching frequency.
- Industrial Current Handling: Rated for high mains current with mains choke or filter installed.
- Control Cabinet Back-Panel Mounting: Optimized for industrial enclosure installations.
The EVF9328-EV delivers the reliability and precision required for high-power industrial variable speed motor control applications.
