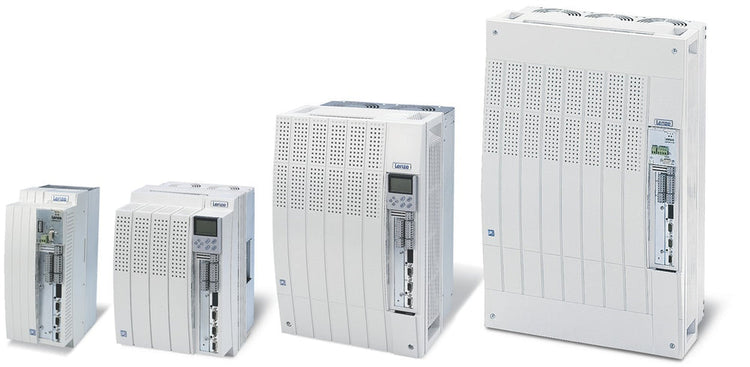

EVF9329-EVV100 | Lenze 9300 400–480V 56A Frequency Inverter IT Variant

Description

The Lenze EVF9329-EVV100 is a 9300 series frequency inverter designed for three-phase industrial motor control applications. It operates with a 400–480 VAC input at 50/60 Hz and delivers a controlled output range of 0–480 VAC up to 600 Hz. This IT system variant drive provides regulated speed and torque control for demanding automation systems.

Technical Specifications

Information About EVF9329-EVV100

The EVF9329-EVV100 is part of the Lenze 9300 inverter platform developed for variable frequency motor control in industrial machinery. It supports a three-phase input rated at 53 A and 44 kVA, with a three-phase output rated at 56 A and 46.6 kVA. The inverter is designed as an IT system variant, making it suitable for installations with isolated or impedance-grounded power systems. Engineered for cabinet-mounted integration, the unit is intended for regulated drive control in production and processing environments.

Key Features:

• 9300 Series Platform: Designed for industrial variable frequency motor control.

• 400–480 VAC Input: Three-phase operation at 50/60 Hz supply frequency.

• 53 A Input Current: Rated for 44 kVA input capacity.

• 0–480 VAC Output: Adjustable frequency range from 0 to 600 Hz.

• 56 A Output Current: Provides up to 46.6 kVA output power.

• IT System Variant: Suitable for isolated or impedance-grounded electrical systems.

• Three-Phase Output Control: Supports regulated speed and torque performance.

• Industrial Cabinet Installation: Intended for panel-mounted automation systems.

The EVF9329-EVV100 delivers the reliability and precision required for industrial three-phase frequency inverter applications.
