EVS-LOC | Silent Knight Local Operator Console with Supervised Microphone and LCD Display
- Regular price
- $1,734.00
- Sale price
- $1,734.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: EVS-LOC
Description

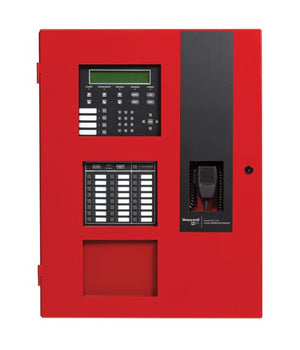

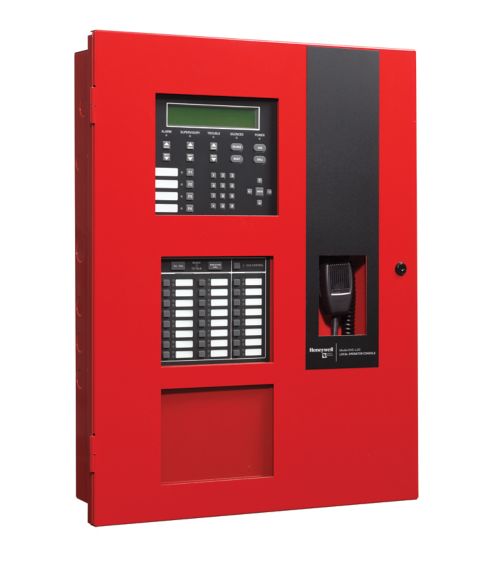

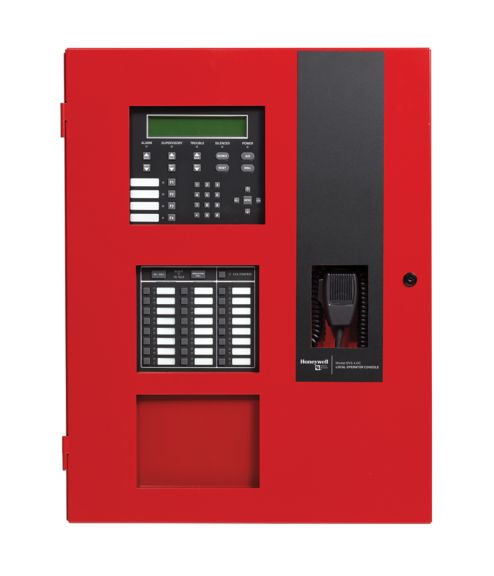

The Silent Knight EVS-LOC Local Operator Console is a supervised remote microphone and annunciator designed for use with the EVS-Series Emergency Voice System. It enables local control, live paging, and system management in compliance with UL requirements for mass notification. The EVS-LOC extends communication access across large facilities, allowing for immediate and coordinated emergency response when the main 6820EVS panel is not within reach.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Equipment |
| Part Number | EVS-LOC |
| Subcategory | Local Operator Console |
| Display | 4x40 character backlit LCD (160 characters total) |
| Microphone | Supervised onboard microphone |
| System Compatibility | EVS-Series Emergency Voice System (including 6820EVS) |
| Function Buttons | Four programmable buttons |
| Speaker Circuits Supported | Up to 32 via EVS-50W, EVS-100W, or EVS-125W amplifiers |
| Inputs | Accepts external triggers via 5880 or Monaco system (up to 8 inputs) |
| Maximum Units Per System | Up to 4 EVS-LOCs (5 total command points including 6820EVS) |
| Certifications | UL 864, UL 2572, NFPA 72, CSFM Approved 7165-0559:0500 |
| Optional Accessories | VIP-TR trim ring |
| Operating Mode | Supervised remote control and annunciator functions |
| Power Requirements | Powered via EVS system connection |
| Dimensions | 23 × 24 × 8 in |
| Weight | 30 lbs |
Information About EVS-LOC
The EVS-LOC is part of Silent Knight’s EVS-Series, purpose-built for emergency voice communication and mass notification systems. It serves as both a local operator console and a supervised control interface that mirrors the capabilities of the 6820EVS primary panel. The unit includes an onboard supervised microphone, a large 4x40 LCD backlit display, and four programmable buttons for quick command execution. Designed for high flexibility, the EVS-LOC supports integration with up to 32 mappable speaker circuits through compatible amplifiers, offering scalable and reliable voice communication coverage throughout large buildings or campus environments.
Key Features:
- Supervised Remote Microphone: Enables live, direct emergency communication from remote locations.
- Full System Control: Provides annunciation, system silence, and reset functions for complete operation.
- Expandable Configuration: Supports up to four EVS-LOCs per system for distributed access across multiple areas.
- Programmable Function Buttons: Four customizable buttons streamline essential or repetitive operations.
- Large LCD Display: 4x40 backlit screen offers clear visibility and detailed system status information.
- Flexible Input Options: Accepts external triggers via Silent Knight 5880 or Monaco systems with up to eight inputs.
- Multi-Amplifier Support: Interfaces with EVS-50W, EVS-100W, and EVS-125W amplifiers for up to 32 speaker circuits.
- Optional Trim Ring: VIP-TR accessory provides a clean, professional wall-mounted appearance.
The EVS-LOC delivers the reliability and precision required for rapid, localized emergency communication and fire alarm system management.
