EVS-RCU | Silent Knight Remote Command Unit with Supervised Microphone for EVS Voice Systems
- Regular price
- $1,750.00
- Sale price
- $1,750.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: EVS-RCU
Description

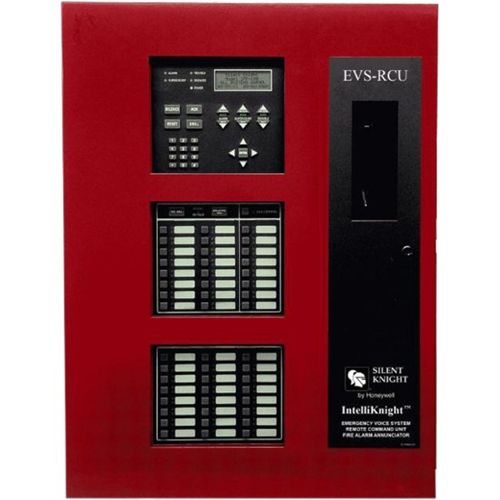

The Silent Knight EVS-RCU Remote Command Unit is a supervised remote microphone and annunciator designed for integration with the EVS-Series Emergency Voice System. This unit provides full fire alarm system control, including silence and reset functions, while enabling live voice communication during emergency events. The EVS-RCU meets UL requirements for Local Operator’s Console (LOC) applications, ensuring reliable and compliant operation in critical environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Systems |
| Part Number | EVS-RCU |
| Subcategory | Voice Evacuation Command Unit |
| Compatibility | IntelliKnight 5820XL-EVS System |
| Microphone Type | On-board supervised microphone |
| Speaker Circuits | Up to 32 mappable output groups |
| Trigger Inputs | Up to 8 programmable inputs via 5880 module |
| Connection Type | Six-wire (2 for voice bus, 4 for SBUS) |
| Mounting Options | Surface or flush mount |
| Certifications | UL 864, UL 2572, CSFM |
| Compliance | NFPA 72 Local Operator’s Console |
| Material/Color | Red metal enclosure |
| Voltage | 24 VDC nominal |
| Current Draw (Standby/Alarm) | 70 mA / 100 mA |
| Dimensions (H × W × D) | 26.5" × 20" × 4.6" |
| Country of Origin | United States |
| Weight | 47 lbs |
Information About EVS-RCU
The EVS-RCU is part of the Silent Knight EVS-Series, developed to provide advanced voice evacuation and emergency communication capabilities. It features a built-in supervised microphone, allowing authorized personnel to broadcast live messages throughout designated zones. The unit supports up to four additional command stations beyond the main panel, offering scalable system expansion for large facilities. Designed for compatibility with the IntelliKnight 5820XL-EVS, it connects via a six-wire interface and supports both surface and flush mounting configurations for flexible installation.
Key Features
- Supervised Microphone: Enables reliable live communication during emergencies with supervision for fault detection.
- Full System Control: Provides local command of alarm operations including silence, reset, and system acknowledgment.
- Expandable Configuration: Supports up to four additional EVS-RCU units for a total of five command stations.
- Programmable Trigger Inputs: Accepts inputs from external systems such as Monaco, offering up to eight trigger channels.
- Comprehensive Speaker Mapping: Allows up to 32 mappable speaker circuits for targeted audio control.
- All Call & Non-Active Call Functions: Provides rapid selection of all active or inactive audio output groups.
- Flexible Wiring & Mounting: Uses a six-wire connection (voice and SBUS) and supports both surface or flush installation.
- UL and NFPA Compliance: Meets UL 864, UL 2572, and NFPA 72 requirements for voice evacuation systems.
The EVS-RCU delivers the reliability and precision required for professional fire alarm voice evacuation and emergency command applications.
