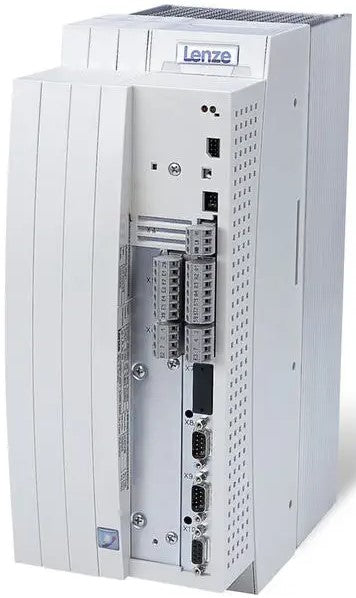

EVS9222-E | Lenze 9200 Servo Inverter 540–650VDC 4.5A 0–300Hz

Description

The Lenze EVS9222-E is a 9200 series servo inverter designed for DC bus operation in industrial motion control systems. It accepts a DC input up to 540 V (VDE) or 650 V (UL) and provides a three-phase output up to 400/480 V with a rated output current of 4.5 A. The drive supports controlled frequency output from 0 to 300 Hz for precise motor speed regulation.

Technical Specifications

Information About EVS9222-E

The EVS9222-E is part of the Lenze 9200 servo inverter platform engineered for four-quadrant motor control applications. It operates from a DC supply and delivers three-phase AC output for asynchronous or servo motor control. The inverter supports field-oriented vector control for regulated torque and speed performance in automated machinery. Designed for panel installation, it incorporates selectable switching frequencies and integrated protection functions to ensure stable industrial operation.

Key Features:

• 9200 Series Servo Inverter: Designed for DC bus-based motion control systems.

• DC Input Operation: 540 VDC (VDE) / 650 VDC (UL) input ratings.

• 3-Phase AC Output: 0–400 V (VDE) or 0–480 V (UL) output capability.

• 4.5 A Rated Output Current: Suitable for compact servo and motor control applications.

• 0–300 Hz Output Frequency: Adjustable speed range for precise control.

• Field-Oriented Vector Control: Enables controlled torque and speed performance.

• Selectable Switching Frequency: 8 kHz or 16 kHz for noise and performance optimization.

• Integrated Protection Functions: Protection against short circuit, overvoltage, undervoltage, overtemperature, and motor overload.

The EVS9222-E delivers the reliability and precision required for industrial servo inverter and motion control applications.
