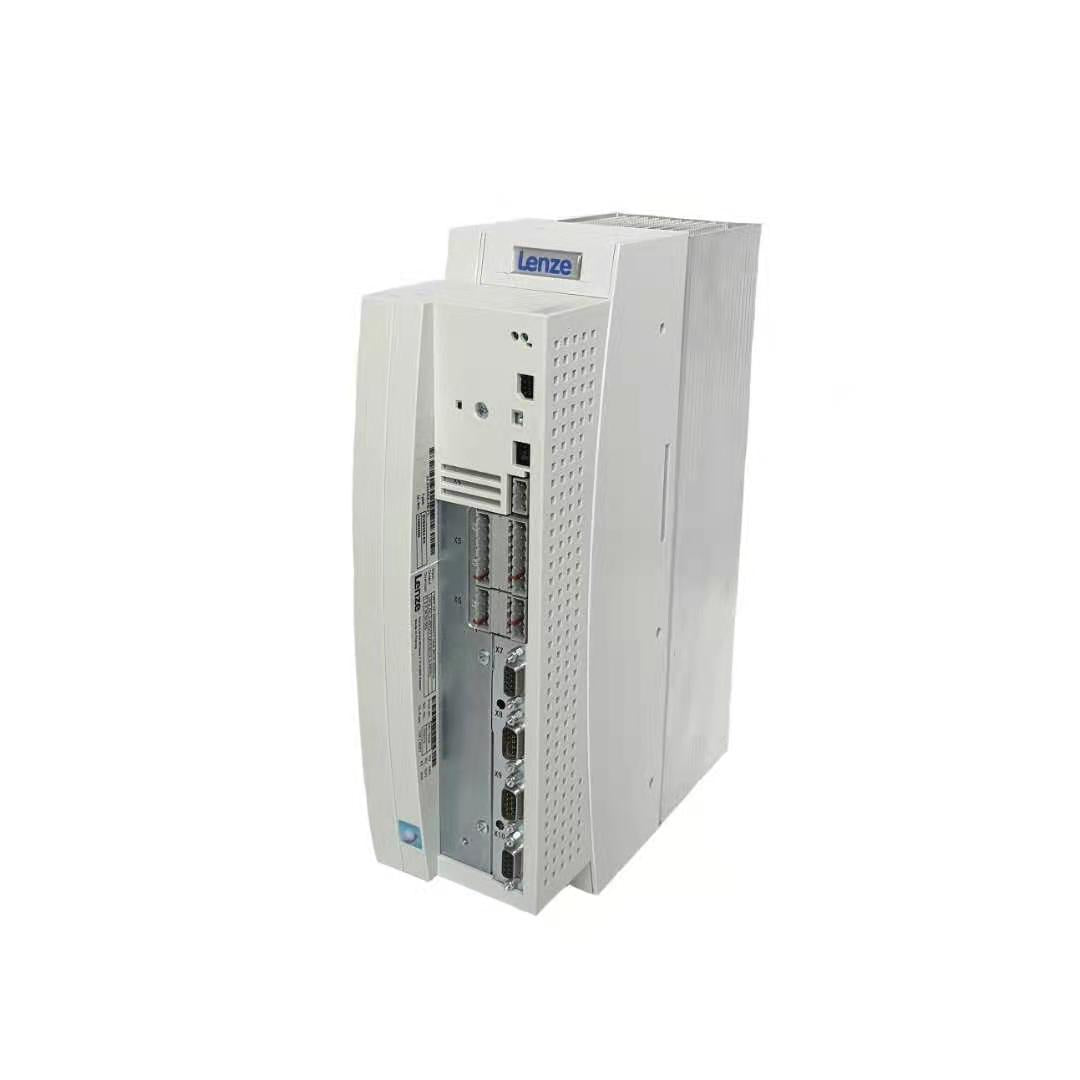

EVS9322-EK | Lenze 9300 Series 0.75 kW Servo Cam Controller 400/480 VAC
- Regular price
- $1,559.00
- Sale price
- $1,559.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVS9322-EK
Description
The Lenze EVS9322-EK is a 9300 Series servo cam controller designed for precise motion control in automated machinery. Operating at 400/480 VAC with a rated motor power of 0.75 kW, it provides accurate speed and position regulation for synchronized drive applications. This built-in unit integrates advanced cam profiling functionality for demanding industrial motion systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Motion Control |
| Part Number | EVS9322-EK |
| Subcategory | Servo Drives & Controllers |
| Product Line | Series 9300 |
| Product Type | 9300 Servo Cam Controller |
| Input Voltage | 3 AC 320–528 V, 45–65 Hz |
| DC Supply Voltage | 460–740 V DC |
| Rated Motor Power | 0.75 kW (4-pole ASM) |
| Switching Frequency | 8 kHz / 16 kHz selectable |
| Output Current (Ir8) | 2.5 A / 1.7 A |
| Output Current (Ir16) | 1.8 A / 1.26 A |
| Max Output Current (Imax 8 kHz) | 3.8 A / 5.0 A |
| Max Output Current (Imax 16 kHz) | 2.7 A / 3.6 A |
| Power Dissipation (at 400 V) | 110 W |
| Temperature Derating | 2% per °C above 40°C |
| Altitude Derating | 5% per 1000 m above 1000 m |
| Mounting Type | Built-In Unit (Panel Mount) |
| Weight | 9.00 lbs (4.08 kg) |
Information About EVS9322-EK
The EVS9322-EK is part of the Lenze 9300 Servo Cam Controller series, engineered for high-performance motion control in industrial automation environments. The unit features a compact built-in design suitable for panel installation and supports three-phase mains voltage from 320 to 528 V AC, as well as DC supply operation between 460 and 740 V DC. It is compatible with 4-pole asynchronous motors and servo systems, offering selectable switching frequencies of 8 kHz or 16 kHz to optimize performance and thermal behavior. Designed for synchronized cam profiling applications, it enables precise coordination of multi-axis movements in packaging, material handling, and production machinery.
Key Features:
- Integrated Servo Cam Profiler: Enables electronic cam functionality for synchronized multi-axis motion control.
- 0.75 kW Motor Rating: Supports 4-pole asynchronous motors for compact drive applications.
- Dual Switching Frequency Options: Selectable 8 kHz or 16 kHz operation for optimized efficiency and noise control.
- Wide Input Voltage Range: Accepts 3 AC 320–528 V at 45–65 Hz for flexible industrial integration.
- High Peak Output Current: Delivers up to 5.0 A (8 kHz) for dynamic load handling.
- DC Bus Compatibility: Operates with 460–740 V DC supply systems.
- Thermal and Altitude Derating Protection: 2% per °C above 40°C and 5% per 1000 m above 1000 m.
- Built-In Panel Mount Design: Designed for secure installation inside control cabinets.
The EVS9322-EK delivers the reliability and precision required for synchronized servo-driven automation systems.
