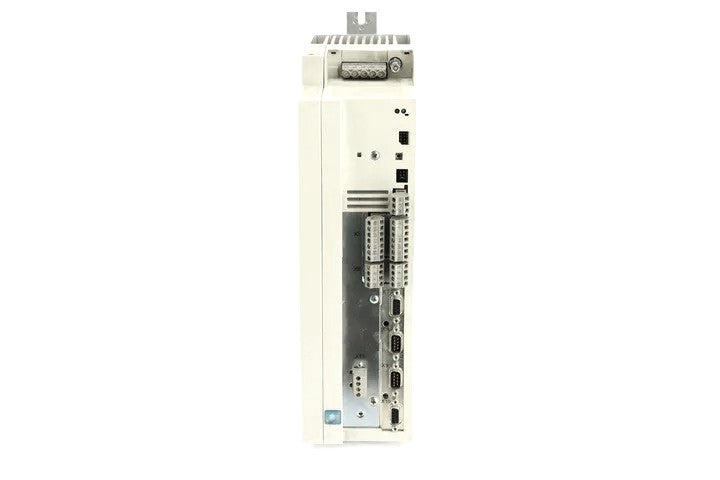

EVS9324-ESV004 | Lenze 9300 Series 3kW 400-480VAC Servo Inverter
- Regular price
- $2,147.00
- Sale price
- $2,147.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVS9324-ESV004
Description
The Lenze EVS9324-ESV004 is a 9300 Series servo controller designed for precise speed and position control in three-phase industrial systems. Rated at 3.0 kW (4 HP) with a 400–480 VAC supply range, it delivers controlled output up to 480 VAC for servo motor applications. This built-in servo inverter integrates Safe Standstill functionality for enhanced operational safety.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives & Motor Controls |
| Part Number | EVS9324-ESV004 |
| Subcategory | Servo Drives |
| Product Line | 9300 Series |
| Product Type | Servo Controller (Servo Inverter) |
| Input Phase | 3-Phase |
| Rated Supply Voltage | 400–480 VAC |
| Rated Output Power | 3.0 kW |
| Horsepower Rating | 4 HP |
| Output Voltage | 0–480 VAC |
| Current Rating | 7 A |
| Input Frequency | 50–60 Hz |
| Output Frequency | 0–480 Hz |
| Display Type | LED |
| Enclosure Rating | IP20 |
| Ambient Operating Temperature | -10 to 60°C |
| Storage Temperature | -25 to 60°C |
| Mounting Method | Panel Mount |
| Weight | 11.00 lbs (4.99 kg) |
Information About EVS9324-ESV004
The EVS9324-ESV004 is a servo inverter from the Lenze 9300 Series, developed for dynamic motion control in automated machinery. It operates with a three-phase 400 to 480 VAC input and provides adjustable output voltage and frequency up to 480 Hz. Designed for panel mounting with an IP20 enclosure rating, it is intended for installation inside control cabinets. The integrated LED display enables parameter monitoring and configuration, while Safe Standstill functionality supports compliance with machine safety requirements.
Key Features:
- 3.0 kW Output Rating: Supports servo motor applications up to 4 HP.
- 400–480 VAC Input Range: Compatible with standard industrial three-phase power systems.
- Adjustable Output Frequency: Delivers 0–480 Hz output for flexible motor speed control.
- 7 A Current Rating: Provides stable current delivery for controlled motor performance.
- Safe Standstill Function: Integrated safety feature for controlled motor shutdown.
- LED Display Interface: Enables local monitoring and parameter configuration.
- IP20 Protection Rating: Designed for protected panel installation environments.
- Wide Temperature Range: Operates from -10 to 60°C ambient conditions.
The EVS9324-ESV004 delivers the reliability and precision required for controlled servo inverter operation in industrial automation systems.
