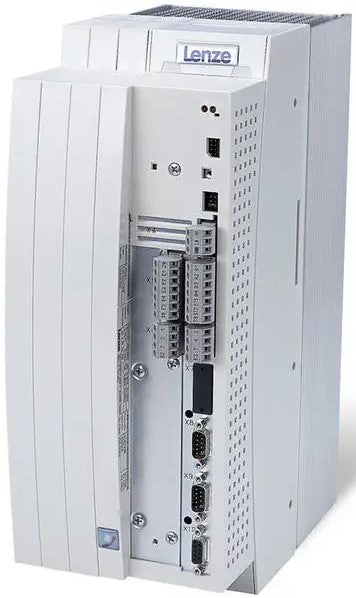

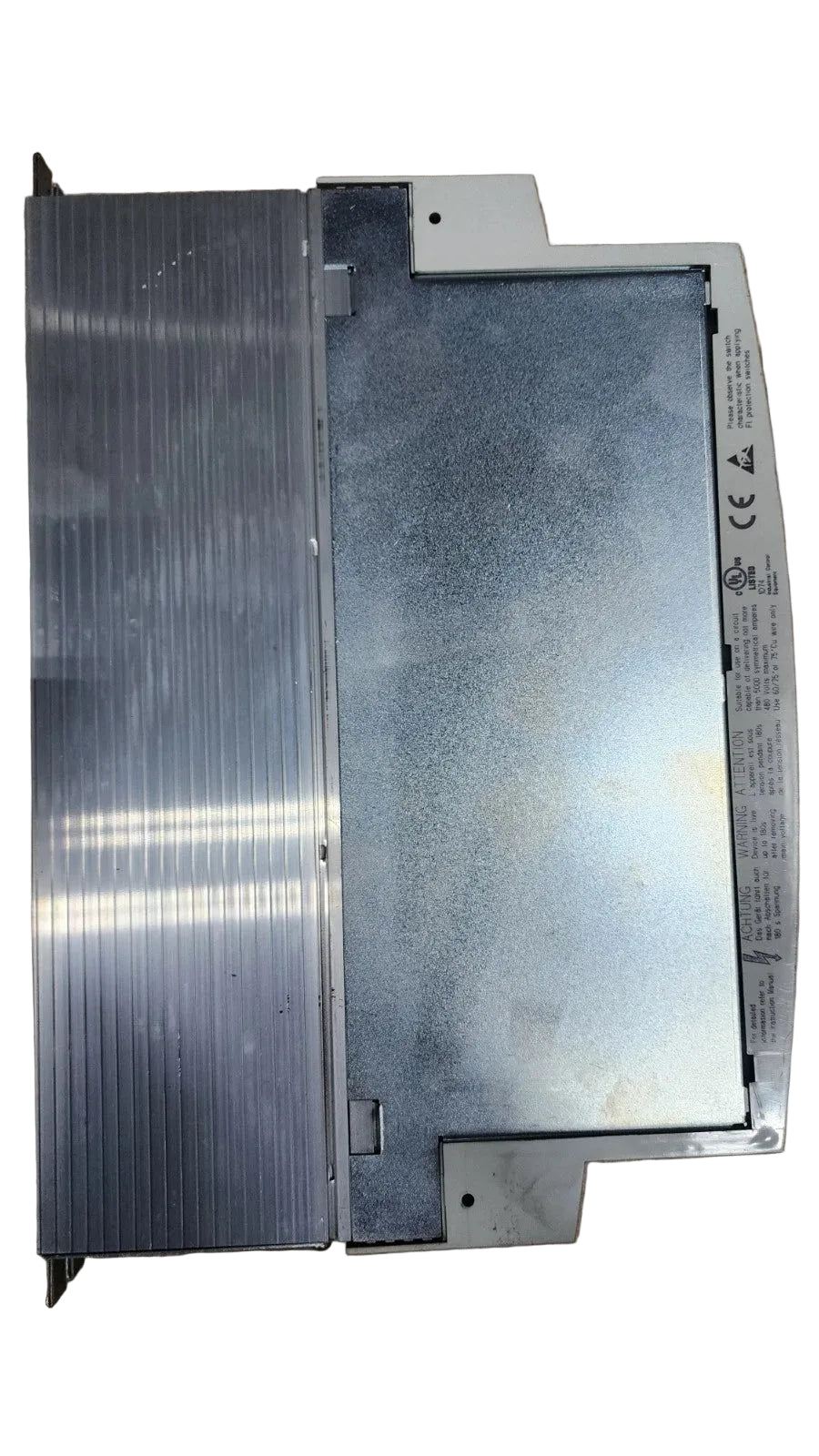

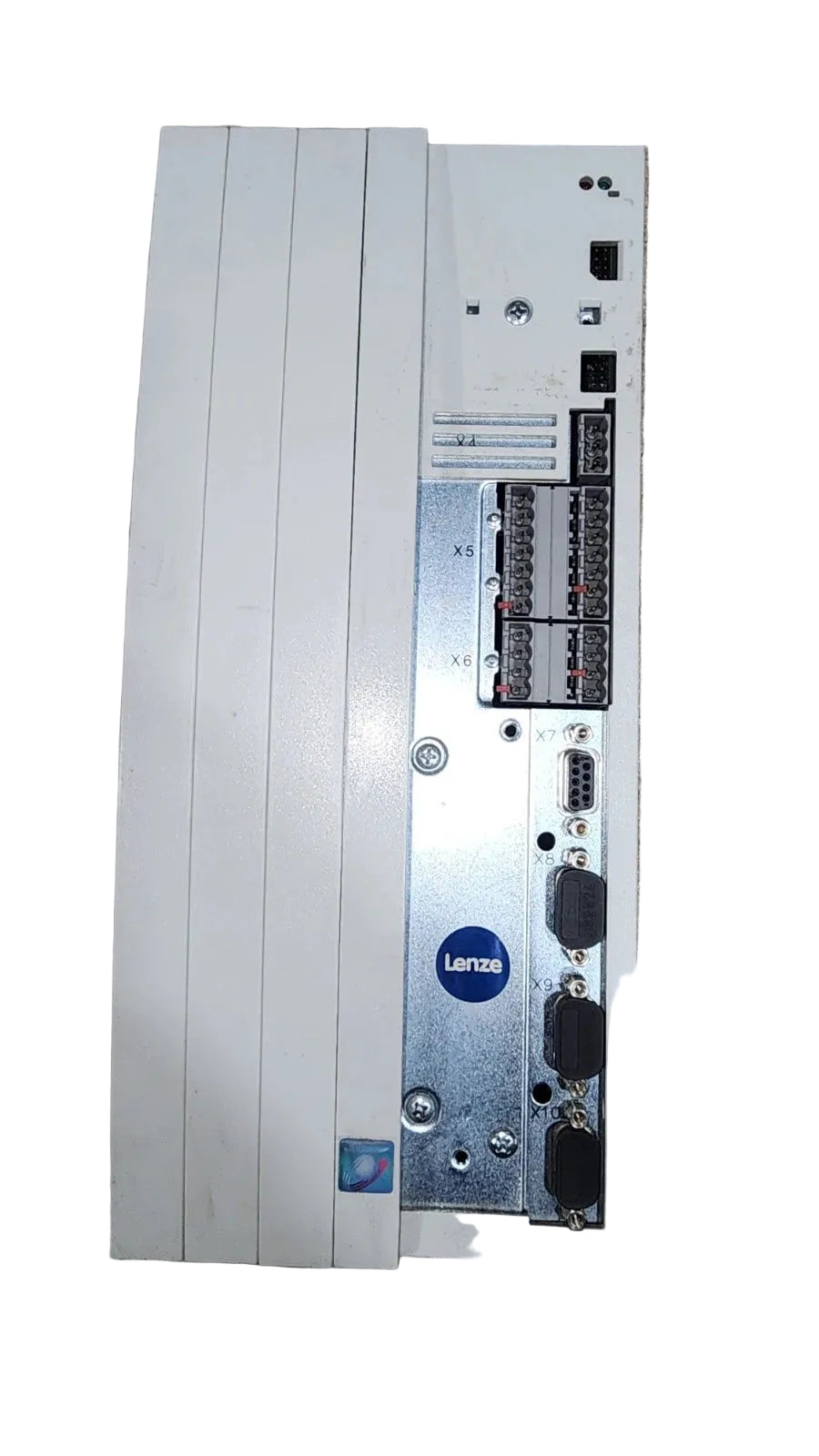

EVS9325-ES | Lenze 9300 Series Servo Inverter 5.5 kW 400/480 VAC
- Regular price
- $1,995.00
- Sale price
- $1,995.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVS9325-ES
Description
The Lenze EVS9325-ES is a servo inverter designed for precise speed, torque, and motion control in industrial automation systems. Built within the 9300 series, the EVS9325-ES supports mid-range servo motor applications operating on 400/480 VAC three-phase power.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Motion Control |
| Part Number | EVS9325-ES |
| Subcategory | Servo Inverters |
| Series | 9300 Series |
| Product Type | Servo Inverter |
| Mains Voltage Range | 320–528 VAC |
| Rated Supply Voltage | 400 V / 480 V |
| Input Phase | 3 Phase |
| Input Frequency | 45–65 Hz |
| Motor Power Rating | 5.5 kW |
| Output Power | 9 kVA (400 V), 10.8 kVA (480 V) |
| Output Current (8 kHz) | 13.0 A |
| Output Current (16 kHz) | 9.7 A |
| Maximum Output Current (8 kHz) | 19.5 A |
| Maximum Output Current (16 kHz) | 14.6 A |
| Alternative DC Supply | 460–740 VDC |
| Mounting Style | Built-In / Panel Mounted |
| Weight | 15.00 lbs (6.80 kg) |
Information About EVS9325-ES
The EVS9325-ES is part of Lenze’s 9300 series servo inverter platform, developed for accurate and responsive motion control in machinery and production equipment. It integrates power electronics and control functionality into a built-in unit suitable for control cabinet installation. The inverter supports both AC mains input and an alternative DC supply, providing flexibility in system architecture. With configurable switching frequencies and stable current handling, it is well suited for servo and asynchronous motor applications requiring reliable performance.
Key Features:
- 9300 Series Servo Platform: Engineered for precise industrial motion and motor control.
- Three-Phase High-Voltage Operation: Supports 400 V and 480 V industrial power systems.
- Mid-Range Motor Power Support: Rated for 5.5 kW servo and ASM motor applications.
- Configurable Switching Frequencies: Operates at 8 kHz or 16 kHz to balance efficiency and acoustic performance.
- High Peak Current Capability: Supports elevated current levels for dynamic motion profiles.
- Flexible Power Input Options: Accepts both AC mains and alternative DC supply sources.
- Built-In Unit Design: Intended for vertical installation within industrial control cabinets.
The EVS9325-ES delivers the reliability and precision required for industrial servo motion control applications.
