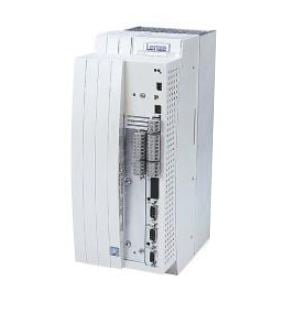

EVS9326-EIV004 | Lenze Servo Inverter

Description

The Lenze EVS9326-EIV004 is an 11 kW servo inverter from the 9300 series, designed for precise motion control in industrial applications. Operating on a 400-480 V AC three-phase power supply, it features a built-in "safe standstill" function for enhanced safety.

Technical Specifications

Information About EVS9326-EIV004

The Lenze EVS9326-EIV004 is a high-performance servo inverter from the Lenze 9300 series, designed to deliver precise motion control in complex industrial automation systems. This versatile inverter offers advanced control functions, flexibility, and safety features, making it suitable for various applications, including positioning, speed control, and torque regulation.

Key Specifications:

• Model: EVS9326-EIV004
• Series: Lenze 9300 Servo Inverter
• Power Rating: 11 kW
• Input Voltage: 3-phase 400/480 V AC (±10%)
• Input Frequency: 50/60 Hz
• Input Current: 20.5 A
• Output Voltage: 0 - 480 V AC
• Output Current: 22.3 A
• Output Frequency: 0 - 480 Hz
• Overload Capacity: 150% of nominal current for 30 seconds

Features:

• Integrated Servo PLC:

  • Allows for custom control logic programming using IEC 61131-3 languages.
  • Simplifies control system architecture by integrating motion and logic control.

• Feedback System Support:

  • Compatible with resolvers, incremental encoders, and SinCos encoders for precise motor feedback.
  • Ensures high accuracy in motion control applications.

• Safety Functions:

  • Includes a safe standstill feature that meets international safety standards, ensuring operational safety during machine maintenance or emergencies.

• Communication and Integration:

  • Modular design allows the addition of various fieldbus interfaces (e.g., Profibus, CANopen, EtherCAT).
  • Supports easy integration into existing control systems.

• Advanced Motion Control:

  • Capable of handling complex tasks like electronic gearing, cam profiling, and positioning without the need for an external controller.
  • High dynamic performance for demanding motion control applications.

Benefits:

• Flexibility: Modular architecture enables customization to meet specific application requirements.
• Space-Efficient: Integrated motion and logic control reduce the need for external devices, saving panel space.
• Scalability: Part of the Lenze 9300 series, which offers a wide range of power ratings, making it suitable for small to large-scale systems.
• Energy Efficiency: Optimized power usage helps lower operational costs.

Typical Applications:

• Packaging Machinery: High-speed and precise control for wrapping, filling, and labeling.
• Material Handling: Smooth and accurate operation for conveyors, lifts, and sorters.
• Textile Machinery: Precise motion control for weaving, knitting, and fabric handling.
• Printing Presses: Synchronization and registration control for high-quality prints.
• Robotics: Advanced motion functions for robotic arms and automated assembly lines.

The Lenze EVS9326-EIV004 servo inverter offers robust performance and flexibility, making it a reliable solution for a wide range of industrial motion control applications.
