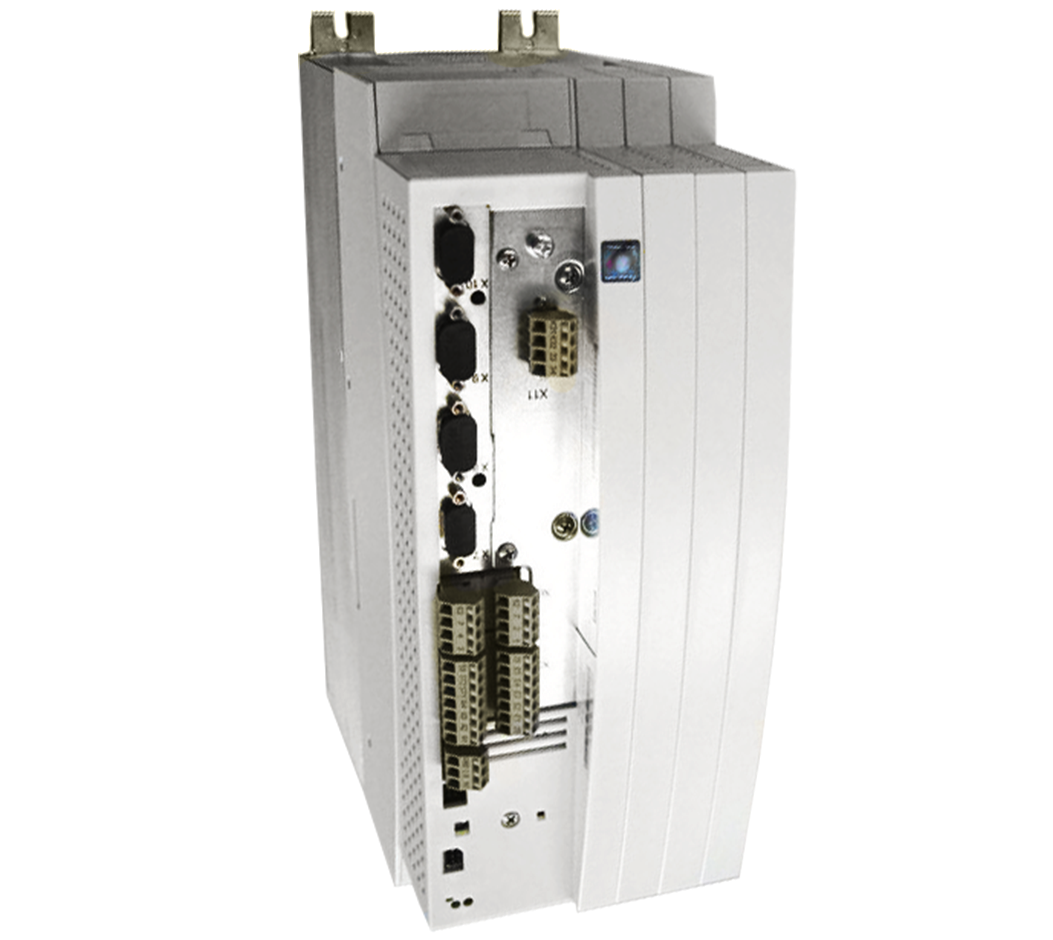

EVS9326-EP | Lenze 9300 Series 11kW 400/480VAC Servo Position Controller
- Regular price
- $2,655.00
- Sale price
- $2,655.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVS9326-EP
Description
The Lenze EVS9326-EP is a servo position controller from the 9300 Series designed for precise motion and positioning control in industrial automation systems. Operating on 400/480 VAC mains supply with an 11 kW (14.75 HP) motor power rating, it provides accurate control of speed, torque, and position. This panel-mounted unit is engineered for integration into control cabinets where reliable high-performance motion control is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Drives & Motor Controls |
| Part Number | EVS9326-EP |
| Subcategory | Servo Position Controllers |
| Product Line | 9300 Series |
| Product Type | Servo Position Controller |
| Mounting Type | Panel Mounted (Built-In Unit) |
| Mains Voltage | 320–528 VAC |
| Rated Voltages | 400 V / 480 V |
| Mains Current with Mains Filter | 20.5 A |
| Motor Power (4-pole ASM) | 11 kW / 15 HP |
| Output Power U, V, W (8 kHz) | 16.3 kVA (400 V) / 22.3 kVA (480 V) |
| Output Current (8 kHz) | 23.5 A (400 V) / 33.5 A (480 V) |
| Output Current (16 kHz) | 15.3 A (400 V) / 21.8 A (480 V) |
| Power Loss | 360 W |
| Frequency | 50/60 Hz |
| Weight | 13.00 lbs (5.90 kg) |
Information About EVS9326-EP
The EVS9326-EP is a built-in servo position controller within the Lenze 9300 product line, developed for advanced drive and positioning applications. It supports mains voltages from 320 to 528 VAC and is rated for 400 V and 480 V industrial power systems. Designed for panel mounting, the unit integrates seamlessly into automation cabinets and supports asynchronous and servo motor configurations. With high output current capacity and selectable switching frequencies, it is well suited for packaging machinery, material handling systems, and coordinated multi-axis applications.
Key Features:
- Wide Mains Voltage Range: Operates from 320 to 528 VAC for flexible industrial integration.
- 11 kW Motor Power Rating: Supports 11 kW (15 HP) motors at 400 V and 480 V systems.
- High Output Capacity: Provides up to 22.3 kVA output power at 480 V (8 kHz).
- Adjustable Switching Frequency: Output current ratings available at 8 kHz and 16 kHz operation.
- Panel-Mounted Design: Built-in unit optimized for control cabinet installation.
- Integrated Position Control: Enables accurate closed-loop positioning and motion sequencing.
- Robust Current Handling: Output current up to 33.5 A at 480 V (8 kHz).
- Industrial-Grade Construction: Designed for continuous-duty operation in demanding environments.
The EVS9326-EP delivers the reliability and precision required for advanced servo positioning and coordinated motion control in industrial automation systems.
