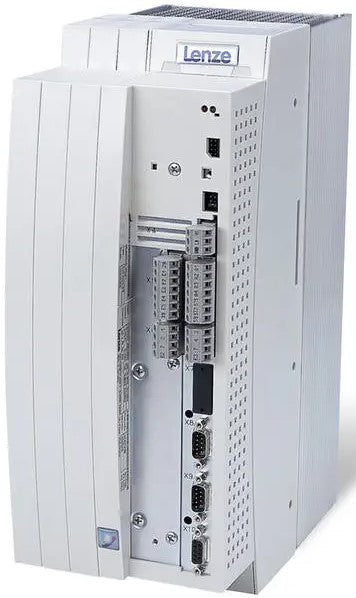

EVS9329-ES | Lenze 9300 Series Servo Inverter 30 kW 400/480 VAC
- Regular price
- $2,925.00
- Sale price
- $2,925.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVS9329-ES
Description
The Lenze EVS9329-ES is a high-power servo inverter designed for precise motion, speed, and torque control in demanding industrial automation systems. Built within the 9300 series, the EVS9329-ES supports large three-phase motor applications with high current capability and stable performance across 400/480 VAC power systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Motion Control |
| Part Number | EVS9329-ES |
| Subcategory | Servo Inverters |
| Series | 9300 Series |
| Product Type | Servo Inverter |
| Mains Voltage Range | 320–528 VAC |
| Rated Supply Voltage | 400 V / 480 V |
| Input Phase | 3 Phase |
| Input Frequency | 45–65 Hz |
| Motor Power Rating | 30 kW (400 V) / 37 kW (480 V) |
| Output Power | 40.9 kVA (400 V) / 46.6 kVA (480 V) |
| Output Current (8 kHz) | 47 A (400 V) / 56 A (480 V) |
| Output Current (16 kHz) | 38 A (400 V) / 35 A (480 V) |
| Maximum Output Current (8 kHz) | 88.5 A (480 V) |
| Maximum Output Current (16 kHz) | 57 A (480 V) |
| Alternative DC Supply | 460–740 VDC |
| Mounting Style | Built-In / Panel Mounted |
| Weight | 32.00 lbs (14.51 kg) |
Information About EVS9329-ES
The EVS9329-ES is part of Lenze’s 9300 series servo inverter platform, developed for heavy-duty motion control in machinery and production equipment. It integrates advanced power electronics into a built-in unit designed for control cabinet installation. The inverter supports both AC mains input and alternative DC supply operation, providing flexibility in system architecture. With high output current capacity and configurable switching frequencies, it is well suited for large servo and asynchronous motor applications requiring precise and dynamic control.
Key Features:
- 9300 Series Servo Platform: Engineered for high-performance industrial motion control.
- High Motor Power Capacity: Supports 30 kW at 400 V and up to 37 kW at 480 V motor ratings.
- Wide Mains Voltage Range: Operates from 320 to 528 VAC across standardized power systems.
- High Output Current Capability: Delivers up to 88.5 A peak output for demanding load profiles.
- Configurable Switching Frequencies: Supports 8 kHz and 16 kHz operation for performance optimization.
- Flexible Power Supply Options: Accepts alternative DC supply input for system integration flexibility.
- Built-In Unit Design: Intended for panel-mounted installation within industrial control cabinets.
The EVS9329-ES delivers the reliability and precision required for high-power industrial servo motion control applications.
