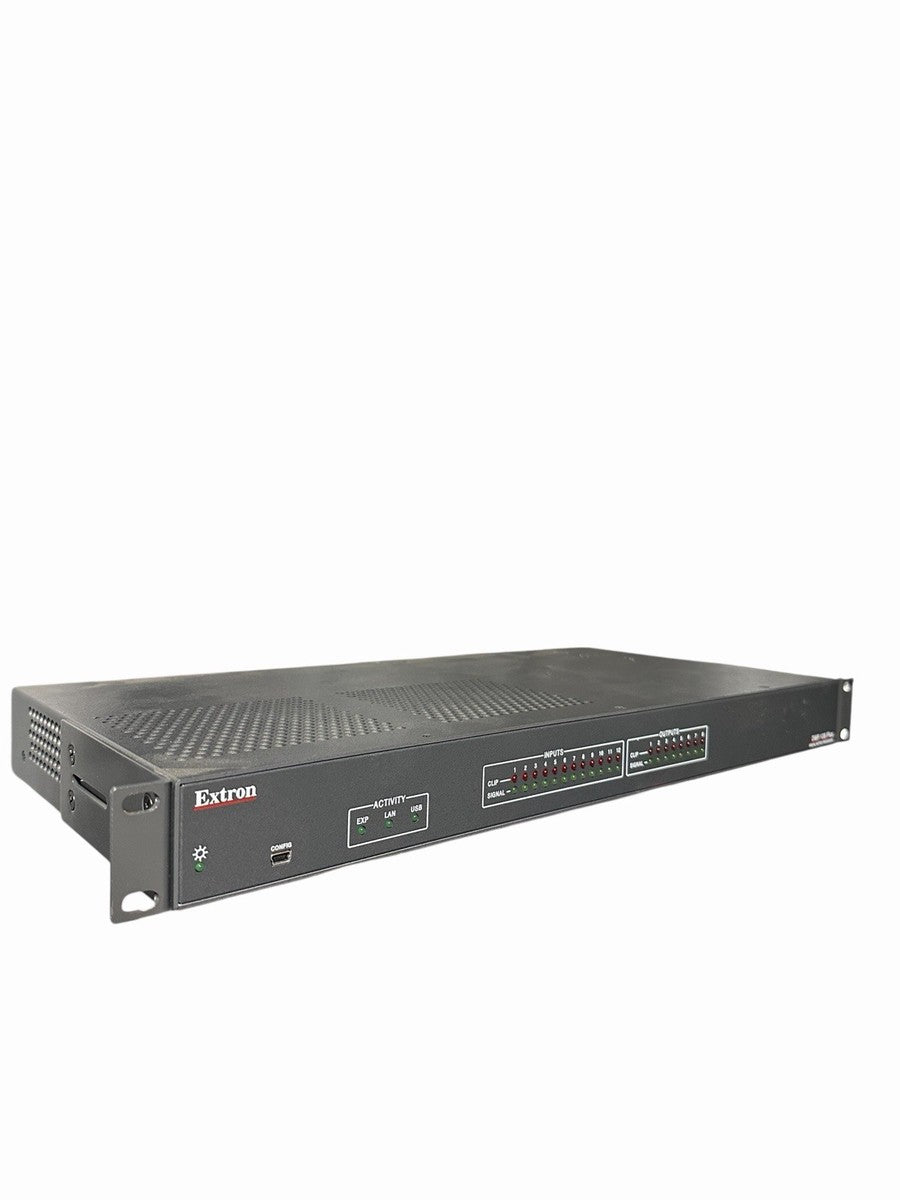

Extron 60-1512-01 DMP 128 Plus C Digital Matrix Processor with AEC
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 60-1512-01
Description
The Extron 60-1512-01 is a DMP 128 Plus C digital matrix processor designed for professional audio routing, signal processing, and conferencing applications. It provides 12 mic/line inputs, 8 analog outputs, 12-channel acoustic echo cancellation, USB audio, and flexible DSP control in a 1U rack-mount enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Extron |
| Category | Professional Audio |
| Part Number | 60-1512-01 |
| Subcategory | Digital Matrix Processors |
| Model | DMP 128 Plus C |
| Processor Type | Digital Matrix Processor with Acoustic Echo Cancellation |
| Audio Inputs | 12 balanced/unbalanced mic/line inputs |
| Audio Outputs | 8 balanced/unbalanced line-level outputs |
| AEC Channels | 12 independent channels |
| DSP Technology | ProDSP 64-bit floating-point processing |
| A/D and D/A Conversion | 24-bit, 48 kHz |
| Mix Matrix | 52x48 |
| Phantom Power | 48 VDC on inputs 1–8, selectable |
| USB Audio | USB 2.0 audio interface |
| Expansion Port | 16-channel bidirectional digital audio, 24-bit/48 kHz |
| Control Interfaces | Ethernet, RS-232, USB, ACP, digital I/O |
| Digital I/O | 24 configurable digital I/O ports |
| Frequency Response | 20 Hz to 20 kHz, ±0.2 dB |
| Power Supply | Internal universal power supply, 100–240 VAC, 50/60 Hz |
| Power Consumption | 29 W |
| Mounting | 1U rack-mountable, full rack width |
| Enclosure | Metal |
| Dimensions | 1.69" H x 17.40" W x 9.48" D (43 x 442 x 241 mm) |
| Weight | 4.5 lb |
Information About 60-1512-01
The 60-1512-01 is part of the Extron DMP 128 Plus series of digital matrix processors for installed professional AV systems. Its architecture combines 12 analog mic/line inputs with eight analog outputs and configurable auxiliary, virtual, and expansion routing. The processor uses ProDSP 64-bit floating-point processing with 24-bit/48 kHz audio conversion for digital signal management. It is suited for conferencing, presentation, distributed audio, and other applications requiring centralized audio processing and control.
Key Features:
- 12 Mic/Line Inputs: Provides 12 balanced or unbalanced inputs for microphone and line-level audio sources.
- 8 Analog Outputs: Provides eight balanced or unbalanced line-level outputs for audio distribution.
- 12-Channel AEC: Provides 12 independent acoustic echo cancellation channels for conferencing applications.
- ProDSP Processing: Uses 64-bit floating-point DSP processing with 24-bit/48 kHz audio conversion.
- 52x48 Mix Matrix: Enables flexible routing between inputs, outputs, auxiliary channels, expansion buses, and virtual buses.
- USB Audio: Provides a digital audio interface for connection to computers and software-based conferencing systems.
- Expansion Port: Provides 16-channel bidirectional digital audio transport between compatible Extron processors.
- Control Interfaces: Supports Ethernet, RS-232, USB, ACP control panels, and configurable digital I/O.
The 60-1512-01 delivers the reliability and precision required for professional audio processing, conferencing, and installed AV systems.
