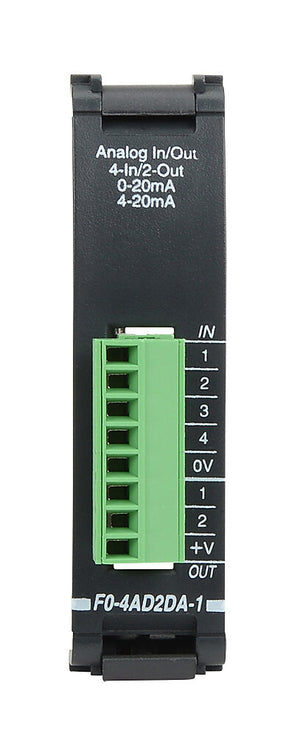

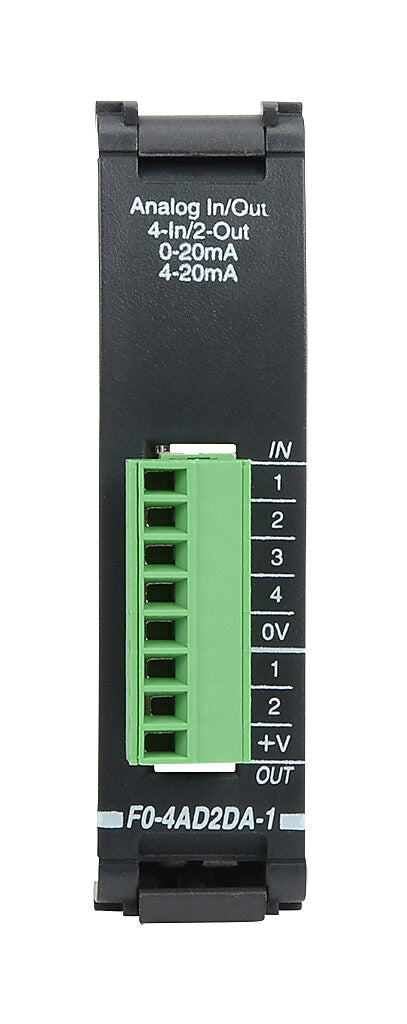

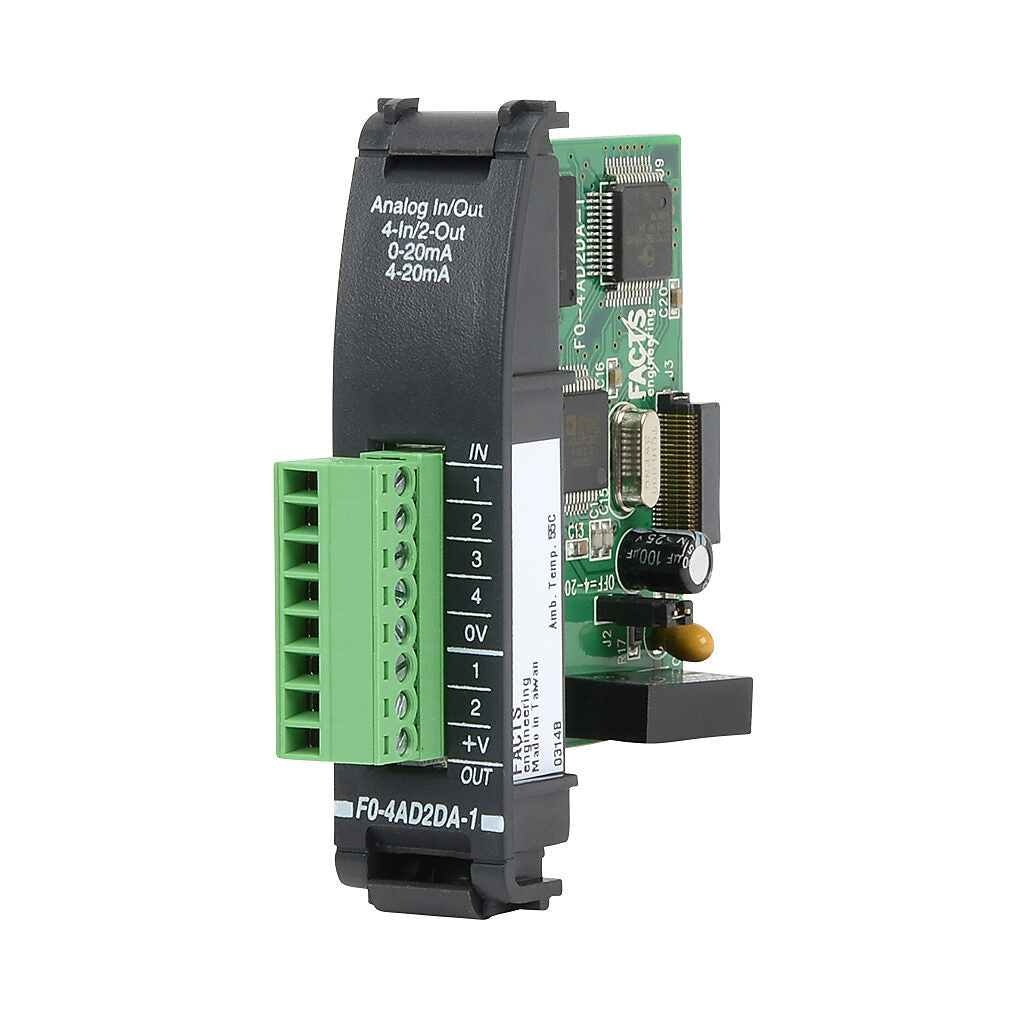

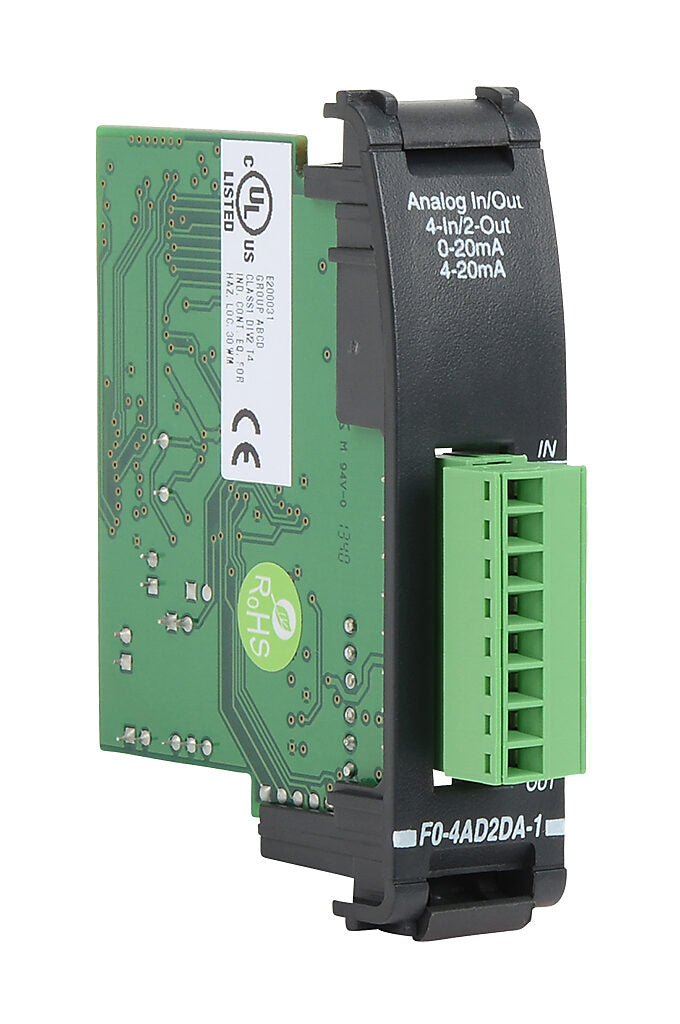

F0-4AD2DA-1 | Automation Direct 4-Channel Analog Input / 2-Channel Analog Output Module
- Regular price
- $414.00
- Sale price
- $414.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F0-4AD2DA-1
Description
The Automation Direct F0-4AD2DA-1 is a 4-channel analog input and 2-channel analog output module designed for current-based industrial control systems. It provides 12-bit resolution for precise measurement and control of 0–20 mA and 4–20 mA signals in PLC applications. This module enables accurate monitoring of field transmitters and controlled current output to actuators within automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | PLC Modules |
| Part Number | F0-4AD2DA-1 |
| Subcategory | Analog Input/Output Modules |
| Input Channels | 4 |
| Output Channels | 2 |
| Input Signal Type | Current |
| Output Signal Type | Current |
| Input Range | 0–20 mA, 4–20 mA |
| Output Range | 0–20 mA, 4–20 mA |
| Resolution | 12-bit |
| Conversion Type | Analog-to-Digital and Digital-to-Analog |
| Module Type | Combination Analog I/O |
| Application | Industrial Process Control |
| Mounting | PLC Base/Backplane Mounted |
| Weight | 0.45 lb |
Information About F0-4AD2DA-1
The F0-4AD2DA-1 is a combination analog I/O module engineered for use with Automation Direct’s PLC systems, integrating four current-sourcing analog inputs and two current outputs in a single compact unit. It is designed to interface directly with industrial transmitters, sensors, and control devices operating on standard 0–20 mA or 4–20 mA signal loops. The module incorporates 12-bit analog-to-digital and digital-to-analog conversion to ensure consistent signal accuracy and stable performance in process control applications. Its architecture supports industrial panel installations where reliable signal acquisition and output control are required for manufacturing, utilities, and machine automation systems.
Key Features:
- Four Analog Input Channels: Supports four independent current input signals for multi-point monitoring.
- Two Analog Output Channels: Provides two current output channels for precise actuator or control signal transmission.
- Current Signal Ranges: Compatible with 0–20 mA and 4–20 mA industry-standard current loops.
- 12-Bit Resolution: Ensures accurate analog signal conversion for stable process control.
- Current Sourcing Design: Designed for sourcing-type current input configurations.
- Integrated I/O Module: Combines input and output functionality in one compact unit to reduce system footprint.
- PLC System Compatibility: Engineered for seamless integration with Automation Direct PLC platforms.
- Industrial Application Ready: Suitable for process control, instrumentation, and manufacturing automation systems.
The F0-4AD2DA-1 delivers the reliability and precision required for industrial current-loop monitoring and analog process control applications.
