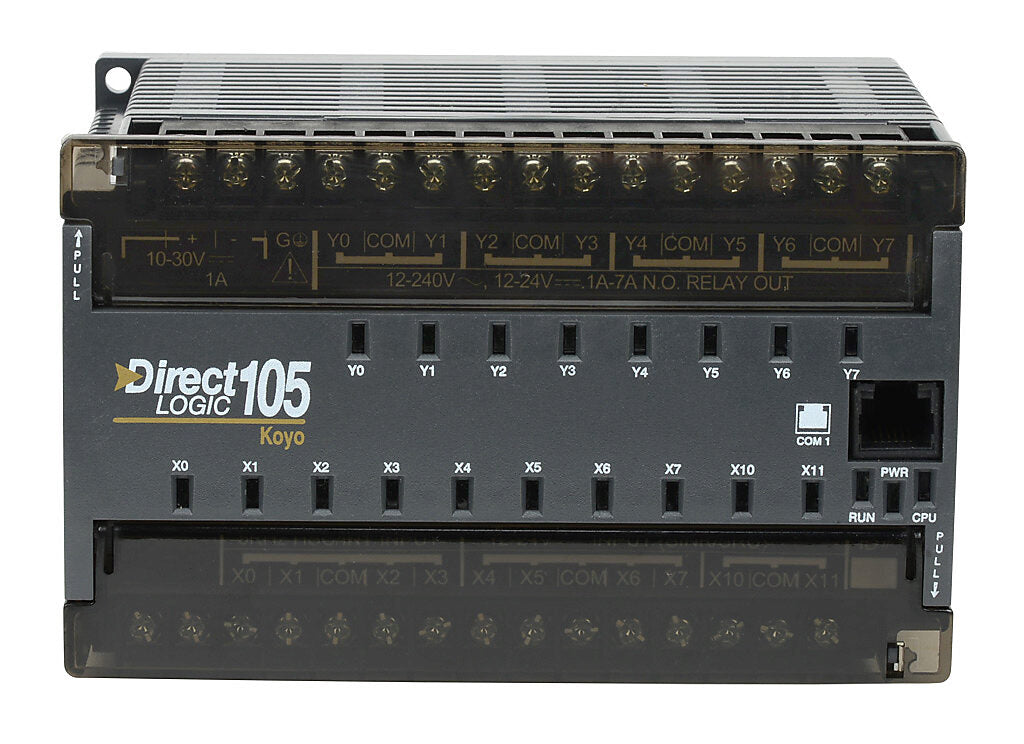

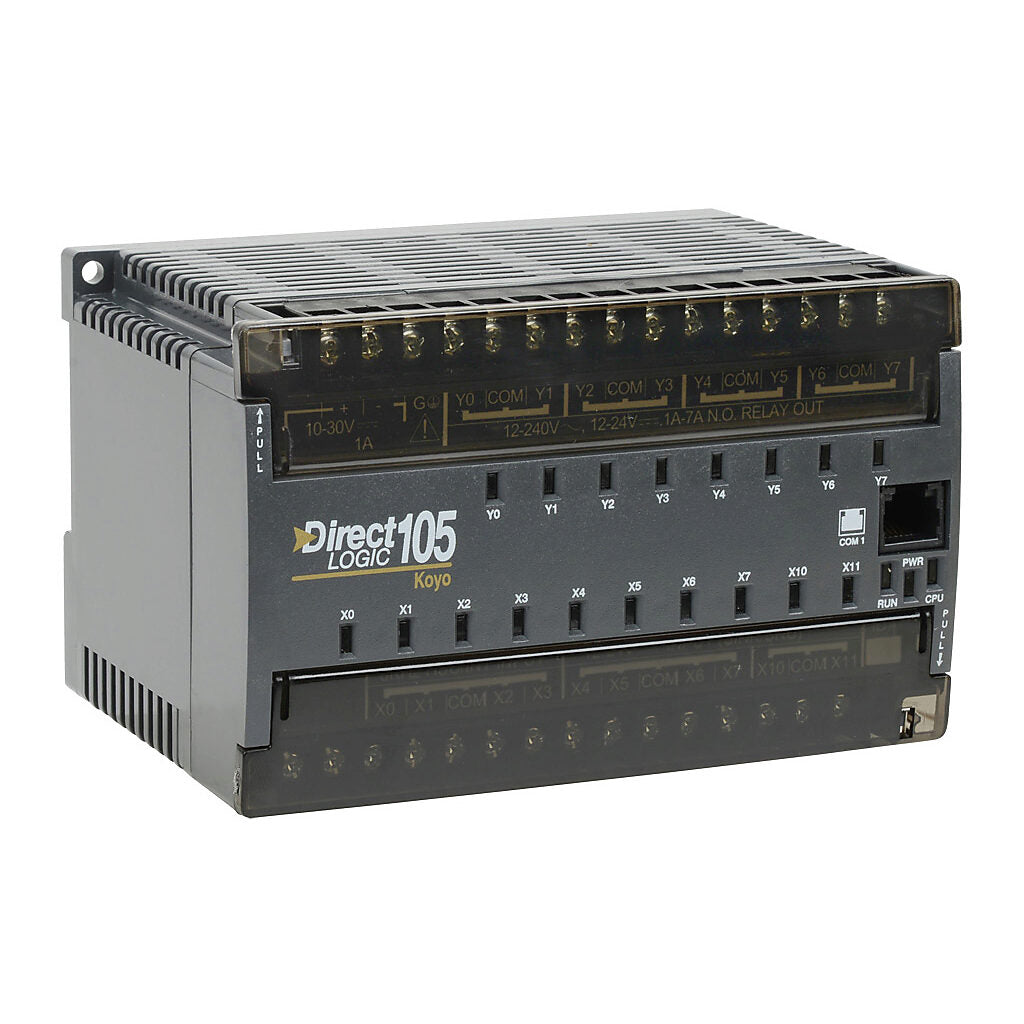

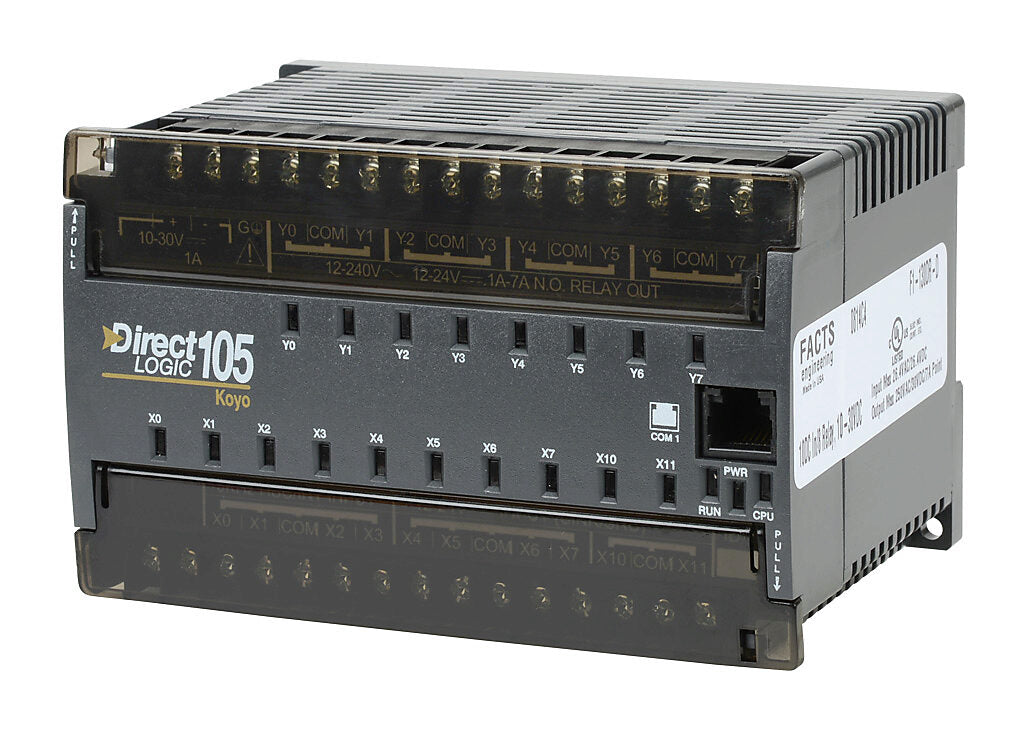

F1-130DR-D | Automation Direct 10 DC Input, 8 Relay Output DL105 Module 10-30 VDC

Description

The F1-130DR-D by Automation Direct is a versatile DL105 module with 10 DC inputs and 8 relay outputs, operating within a 10-30 VDC range. It is designed for efficient data acquisition and control in industrial automation. The module facilitates input monitoring and relay-based output control, making it suitable for a wide range of automation tasks.

Technical Specifications

Information About F1-130DR-D

The Automation Direct F1-130DR-D is a versatile input/output module from the DL105 series, designed to provide robust and efficient control in industrial automation applications. This module integrates both input and output functionalities, making it a valuable component for various PLC-based systems requiring a combination of digital input and relay output capabilities.

The F1-130DR-D module features 10 DC input channels, each capable of operating within a voltage range of 10-30 VDC. This broad input voltage range allows the module to interface with a wide range of digital sensors, switches, and other input devices commonly used in industrial environments. The module supports versatile input configurations, making it suitable for applications requiring reliable signal acquisition from multiple sources.

In addition to its input capabilities, the F1-130DR-D includes 8 relay output channels. Each relay output is configured as a Single Pole Double Throw (SPDT) relay, providing flexibility in switching configurations. SPDT relays offer a single common terminal that can connect to either of two other terminals, enabling the module to handle various switching needs. The relays can handle a current of up to 2A per channel, making them suitable for controlling a range of devices such as actuators, solenoids, and other industrial loads.

The module's operational temperature range extends from 0°C to +60°C, ensuring reliable performance in standard industrial environments where temperature control is maintained. For storage, the F1-130DR-D is capable of withstanding temperatures between -20°C and +70°C, allowing for safe handling and storage even under more extreme conditions. This temperature tolerance ensures that the module remains functional and reliable throughout its lifecycle.

Humidity is another critical factor in industrial settings, and the F1-130DR-D is designed to operate in environments with relative humidity ranging from 5% to 95% non-condensing. This broad humidity range ensures that the module can function effectively even in high moisture conditions, typical of many manufacturing and processing environments.

The F1-130DR-D module is designed for ease of integration and use within PLC systems. Its compact form factor and straightforward wiring connections simplify installation and setup, while its robust design ensures durability and reliability. Whether used in new installations or as part of an upgrade to existing systems, the F1-130DR-D provides dependable input and output capabilities, supporting a wide range of control and automation tasks.

In summary, the Automation Direct F1-130DR-D input/output module offers a comprehensive solution for managing digital inputs and relay outputs in industrial automation applications. With 10 DC input channels, 8 SPDT relay outputs, and a range of operating and storage conditions, this module delivers the performance and flexibility needed for effective control and monitoring. Its durability and ease of integration make it a valuable addition to any DL105-based PLC system, supporting efficient and reliable automation processes.

Manufacturer information

Automation Direct is a well-established supplier of industrial automation and control products. Founded in 1994, the company offers a wide range of cost-effective, user-friendly solutions, including PLCs, HMIs, sensors, and more, catering to diverse automation needs globally.
