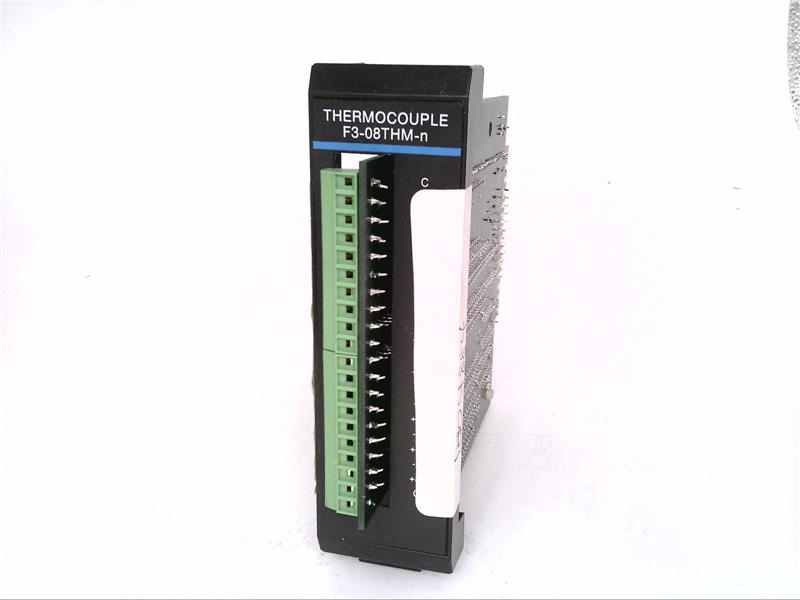

F3-08THM-J | Facts Engineering Thermocouple PLC Module

Description

The F3-08THM-J by Facts Engineering is a thermocouple PLC module designed for industrial temperature measurement applications. It supports up to eight J-type thermocouples, providing precise temperature readings over a wide range. The module integrates with PLC systems via a standard interface, ensuring seamless communication and data acquisition. It features cold junction compensation and high noise immunity, which enhance measurement accuracy and reliability. The F3-08THM-J is engineered for use in harsh environments and is compatible with a range of automation platforms. It operates within defined industrial temperature limits and complies with standard safety certifications.

Technical Specifications

Information About F3-08THM-J

The F3-08THM-J thermocouple input module is an advanced component within the Controls & Indicators category, specifically designed to enhance temperature monitoring and control capabilities in industrial automation systems. This input module falls under the Control Item / Input Module subcategory and is a part of the DL305 series, renowned for its reliability and integration flexibility. The F3-08THM-J module is engineered to accept thermocouple input signals, making it a crucial part of temperature measurement systems that demand precision and reliability in various industrial environments.

This module is designed to interface with J-type thermocouples, one of the most commonly used thermocouple types in industrial applications, known for its wide temperature range and durability. With eight dedicated input channels, the F3-08THM-J provides significant scalability for multi-point temperature monitoring, making it suitable for complex systems that require the measurement of multiple temperature points simultaneously. Each input channel is independently designed to receive and process thermocouple signals, allowing for accurate data acquisition from multiple thermocouples.

The module offers a 12-bit input resolution, providing a fine degree of measurement precision that ensures the accuracy of temperature readings across all channels. The 12-bit resolution allows for a higher level of detail in the measured signals, which translates to more accurate monitoring and control of temperature-sensitive processes. This feature is essential in industries where precise temperature control is critical to the quality of the final product or process stability, such as in chemical processing, food and beverage manufacturing, metalworking, or semiconductor production.

The F3-08THM-J’s integration into the DL305 series ensures that it is compatible with a wide range of existing PLC systems, allowing for seamless incorporation into established industrial networks. The DL305 series is known for its robust architecture, capable of withstanding harsh industrial conditions while maintaining consistent performance. The module's design also incorporates advanced noise suppression features, ensuring that external electrical noise does not interfere with the accuracy of the thermocouple signals, a key consideration in environments with high electromagnetic interference (EMI).

Cold junction compensation (CJC) is a critical feature of the F3-08THM-J module, designed to improve the accuracy of temperature readings by compensating for the varying temperature at the junction where the thermocouple wires connect to the module. This feature ensures that the readings reflect the true temperature at the measurement point, not the ambient temperature where the thermocouples connect to the PLC system. CJC is especially important in environments where ambient temperatures fluctuate, which can otherwise introduce errors into the measurement data.

The F3-08THM-J module is built to meet rigorous industrial standards, providing reliable performance even in challenging environmental conditions. It is engineered to operate within defined industrial temperature limits, ensuring that it can function properly in environments with extreme temperatures without compromising on performance. The module’s robust design and construction contribute to its long operational life and reduce the need for frequent maintenance or replacement, enhancing overall system reliability and reducing downtime.

This module also supports rapid installation and configuration, with a straightforward interface that simplifies the integration process. The F3-08THM-J is designed to be user-friendly in terms of setup, reducing the time required for system implementation and minimizing the potential for errors during the installation phase. Its compatibility with a wide range of thermocouples and control systems further simplifies deployment across various industrial applications.

For industrial facilities looking to improve temperature control precision and system scalability, the F3-08THM-J offers an ideal solution. Its ability to handle multiple J-type thermocouples with high-resolution input ensures that even the most complex temperature monitoring systems can be efficiently managed. The module’s advanced features, including cold junction compensation and noise immunity, make it a reliable choice for environments where precision, durability, and consistent performance are paramount.

In summary, the F3-08THM-J thermocouple input module is a highly specialized component designed to enhance temperature measurement accuracy in industrial automation systems. With support for up to eight J-type thermocouples, 12-bit input resolution, cold junction compensation, and robust noise immunity, it provides the precision and reliability needed for a wide range of industrial temperature control applications. Its compatibility with the DL305 series and ease of installation make it a practical choice for engineers and technicians looking to improve system performance in temperature-sensitive processes across various industries.

Manufacturer information

Facts Engineering is a company specializing in industrial automation and control products. They design and manufacture programmable logic controllers (PLCs), I/O modules, and related accessories. Their products are known for reliability, ease of integration, and cost-effectiveness, serving various industrial applications.
