F3S-TGR-NLPC-21-M1J8 | Omron Non-Contact Coded Door Switch 2NC+1NO
- Regular price
- $205.00
- Sale price
- $205.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: F3S-TGR-NLPC-21-M1J8
Description

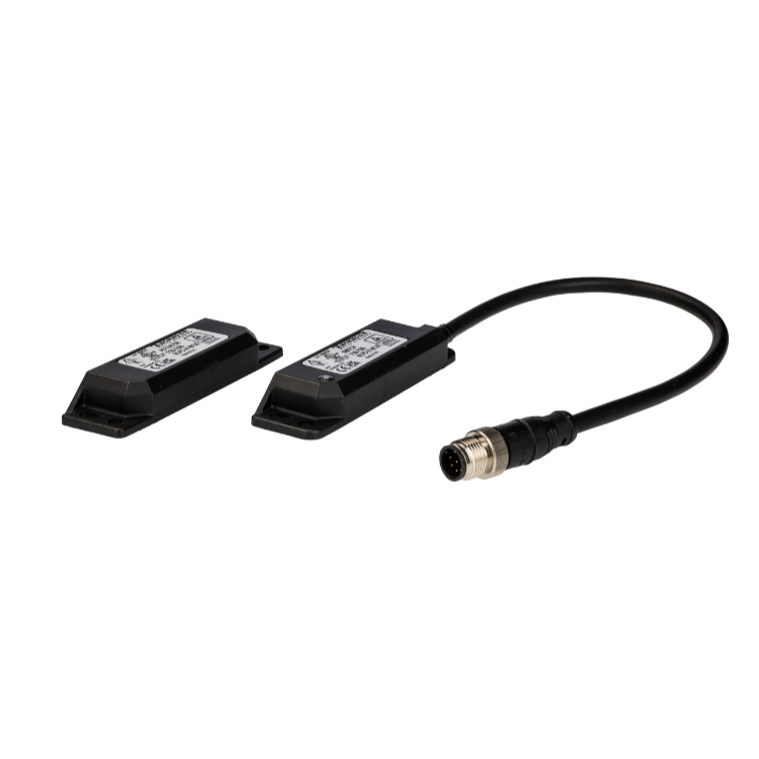

The Omron F3S-TGR-NLPC-21-M1J8 is a non-contact coded door switch sensor with an elongated plastic body and M12 connector interface. It features 2NC+1NO contacts and supports 24V DC operation for machine safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety Switches & Relays |
| Part Number | F3S-TGR-NLPC-21-M1J8 |
| Subcategory | Non-Contact Door Switches |
| Switch Type | Coded Non-Contact |
| Contact Configuration | 2NC + 1NO |
| Body Material | Plastic |
| IP Rating | IP67 |
| Operating Temperature | -25°C to 80°C |
| Operating Voltage | Max. 24 V DC |
| Max. Operating Current | 200 mA |
| Sensing Range | 20 mm |
| Body Dimensions | 13×25×88 mm |
| Connection Type | M12 Connector with 0.25 m Lead |
| Number of Pins | 8 |
| Mounting Type | Surface |
| Lead Length | 0.25 m |
| Weight | 0.1 lbs (approx. 45 g) |
Information About F3S-TGR-NLPC-21-M1J8
The F3S-TGR-NLPC-21-M1J8 is a safety-rated, coded non-contact door switch from Omron, built for use in guarding applications where mechanical wear and contamination must be minimized. Its plastic housing measures 13×25×88 mm and accommodates an 8-pin M12 connector with a 0.25 m lead. The unit operates with a switching range of 20 mm and supports a maximum voltage of 24 V DC at 200 mA. Designed to meet IP67 standards, this switch offers enhanced reliability in environments exposed to dust, moisture, and mechanical stress.
Key Features:
-
Non-Contact Coded Design: Detects guard position magnetically, minimizing wear and allowing misalignment tolerance.
-
Elongated Plastic Housing: Durable and compact 13×25×88 mm body constructed for space-constrained installations.
-
M12 Connector Interface: Provides quick, secure connection via an 8-pin M12 plug with 0.25 m integrated lead.
-
Dual Safety Outputs (2NC) + Monitoring (1NO): Facilitates reliable safety circuit integration with status feedback.
-
IP67 Protection Rating: Ensures resistance against dust ingress and water immersion for harsh industrial settings.
-
Wide Temperature Range: Operates from -25 °C to +80 °C, suitable for variable working conditions.
-
Low Voltage DC Operation: Designed for 24 V DC systems with a maximum switching current of 200 mA.
-
20 mm Sensing Range: Offers generous detection distance for non-contact switching in guarded machinery.
The F3S-TGR-NLPC-21-M1J8 delivers the reliability and precision required for contactless safety monitoring in machine guarding and access control systems.
