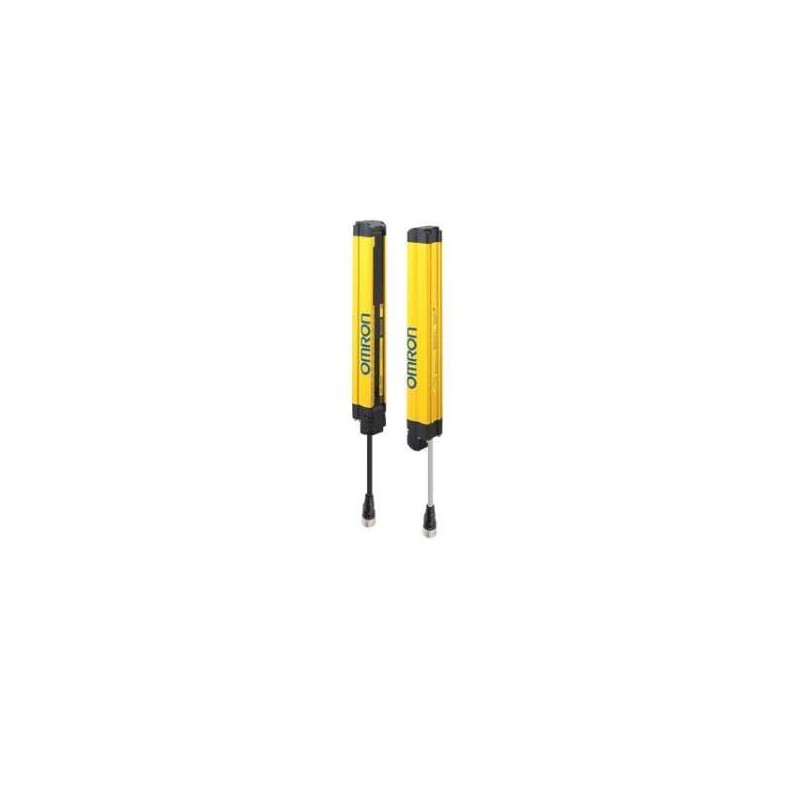

F3SG-4RA0480-14 | Omron F3SG-R Advanced Safety Light Curtain 480 mm 14 mm 24 VDC IP67
- Regular price
- $4,125.00
- Sale price
- $4,125.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: F3SG-4RA0480-14
Description
The Omron F3SG-4RA0480-14 Safety Light Curtain is a compact, high-performance safety sensing system designed to protect operators from machine hazards. With a 480 mm detection height, 14 mm resolution, and a sensing range up to 10 meters, it provides reliable finger protection in industrial automation and machinery applications. Its IP67-rated aluminum housing ensures durability and stability even in harsh factory environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety and Control |
| Part Number | F3SG-4RA0480-14 |
| Subcategory | Safety Light Curtains |
| Series | F3SG-R Advanced Series |
| Type | Safety Light Curtain (Transmitter and Receiver Set) |
| Sensing Height | 480 mm |
| Resolution | 14 mm (Finger Protection) |
| Detection Range | 0.3 to 10 m |
| Operation Mode | Transmitter / Receiver |
| Output Type | NPN / PNP |
| Switched Current (Max) | 300 mA |
| Supply Voltage | 24 VDC ±10% |
| Safety Category | Category 4 / PLe (EN ISO 13849-1) |
| Response Time | Typically ≤20 ms |
| Enclosure Material | Aluminum |
| Protection Rating | IP67 |
| Mounting Type | Bracket Mount |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Indicator Type | LED indicators for power, alignment, and error status |
| Included Components | Transmitter, Receiver |
| Function | Safety light curtain for machine guarding and operator protection |
| Compliance Standards | IEC 61496-1/2, EN 61496-1/2, UL, cUL, CE |
| Gross Weight | 2.205 kg (approx. 4.86 lb) |
Information About F3SG-4RA0480-14
The F3SG-4RA0480-14 is part of Omron’s F3SG-R Advanced Series, designed for maximum safety, flexibility, and ease of use in machine guarding. Operating on 24 VDC, this unit includes both transmitter and receiver modules for precise detection over distances from 0.3 to 10 meters. It provides Category 4 / PLe safety performance with 14 mm resolution, making it ideal for finger protection applications. The device features dual NPN/PNP outputs, simplified wiring, and built-in alignment and diagnostic indicators that support fast setup and dependable operation across diverse industrial systems.
Key Features:
- Category 4 / PLe Safety Rating: Provides maximum operator protection in compliance with EN ISO 13849-1.
- Fine 14 mm Resolution: Detects small objects for finger protection and close-range safety applications.
- 480 mm Sensing Height: Covers vertical or horizontal safety zones effectively.
- Detection Range 0.3–10 m: Suitable for both near and long-distance guarding configurations.
- Dual Output Type: Supports NPN or PNP outputs for system flexibility.
- Rugged IP67 Construction: Aluminum housing ensures resistance to dust, oil, and water ingress.
- Transmitter and Receiver Included: Complete ready-to-install safety light curtain set.
- Omron Advanced Diagnostics: Built-in LED indicators simplify alignment, maintenance, and troubleshooting.
The F3SG-4RA0480-14 delivers the reliability and precision required for safeguarding operators and equipment in industrial automation environments.
