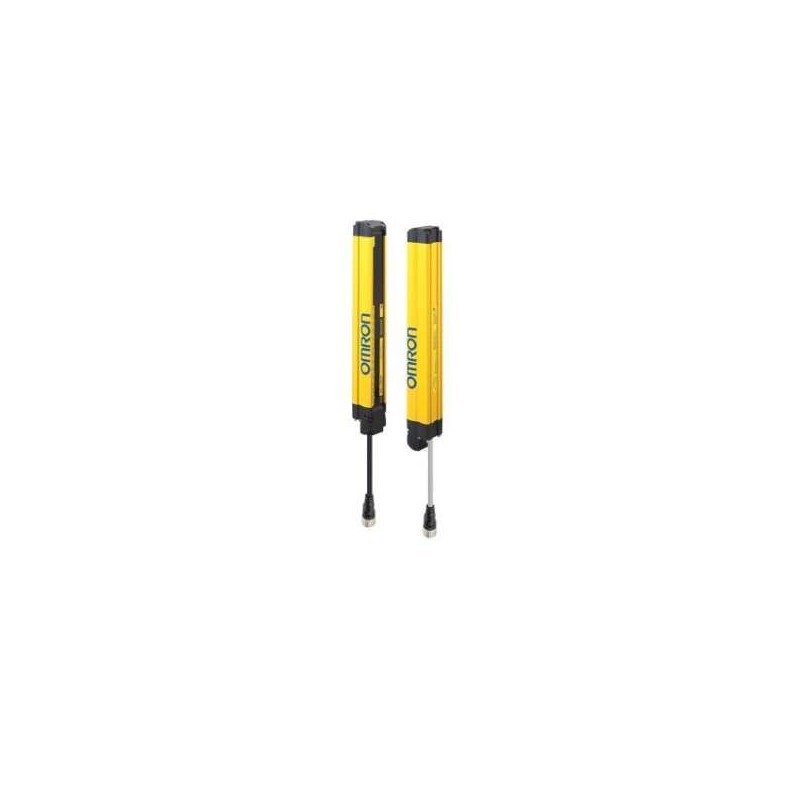

F3SG-4RA0800-14 | Omron F3SG-R Advanced 800 mm Type 4 Safety Light Curtain 14 mm Resolution
- Regular price
- $3,655.00
- Sale price
- $3,655.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: F3SG-4RA0800-14
Description
The Omron F3SG-4RA0800-14 is a Type 4 safety light curtain designed to provide high-resolution finger protection in industrial environments. With an 800 mm detection height and 14 mm resolution, it ensures reliable safeguarding for operators working near hazardous motion areas. The unit supports both PNP and NPN outputs, offering flexible integration with safety controllers and automation systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Industrial Automation and Controls |
| Part Number | F3SG-4RA0800-14 |
| Subcategory | Safety Light Curtains |
| Series | F3SG-R Advanced |
| Type | Global Safety Light Curtain |
| Safety Type | Type 4 (IEC 61496-1/-2 compliant) |
| Resolution | 14 mm (finger protection) |
| Detection Height | 800 mm |
| Sensing Range | 0.3–10.0 m |
| Light Source | Infrared LED |
| Output Type | PNP/NPN Selectable |
| Number of Beams | Determined by height and resolution (approx. 56 beams) |
| Response Time | ≤ 20 ms |
| Supply Voltage | 24 VDC ±20% |
| Current Consumption | Approx. 150 mA (per unit) |
| Safety Category | Category 4, SIL 3, PLe |
| Protection Rating | IP67 |
| Material (Housing) | Aluminum |
| Material (Lens Cover) | Polycarbonate |
| Mounting Type | Bracket Mount (included) |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Connection Type | M12 5-pin or 8-pin connectors (varies by model) |
| Indicators | Power, Stability, Error, and Output Status LEDs |
| Features | PNP/NPN output selection, optical synchronization, series connection support |
| Compliance | CE, UL, TUV, RoHS Certified |
| Weight | Approx. 1.9 kg (4.2 lb) |
Information About F3SG-4RA0800-14
The F3SG-4RA0800-14 is part of Omron’s F3SG-R Advanced Series, engineered for comprehensive safety and global compatibility. Designed with a 14 mm detection resolution, it provides precise finger protection within a sensing range of 0.3 to 10 meters. This model includes both transmitter and receiver units, featuring dual PNP/NPN selectable outputs for easy configuration across different control systems. With a rugged aluminum housing and IP67 protection rating, it ensures stable operation in harsh industrial environments such as robotic cells, presses, and automated assembly lines.
Key Features:
- Type 4 Safety Light Curtain: Meets global safety standards for high-risk applications.
- 14 mm Resolution: Provides precise finger detection and maximum operator safety.
- Detection Height 800 mm: Ideal for medium-height guarding zones.
- Wide Sensing Range: Reliable detection from 0.3 m up to 10 m.
- Dual Output Compatibility: Supports both PNP and NPN output configurations.
- Durable Aluminum Housing: Built for long-term industrial performance.
- High IP67 Rating: Resistant to dust, oil, and water exposure.
- Global Safety Compliance: Certified to IEC 61496-1/-2 and ISO13849-1 standards.
The F3SG-4RA0800-14 delivers the reliability and precision required for safe, high-resolution perimeter and point-of-operation protection in industrial automation systems.
