F3SG-4RE0320P14 | Omron Type 4 Global Safety Light Curtain 320mm 14mm Finger Protection
- Regular price
- $2,194.00
- Sale price
- $2,194.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: F3SG-4RE0320P14
Description

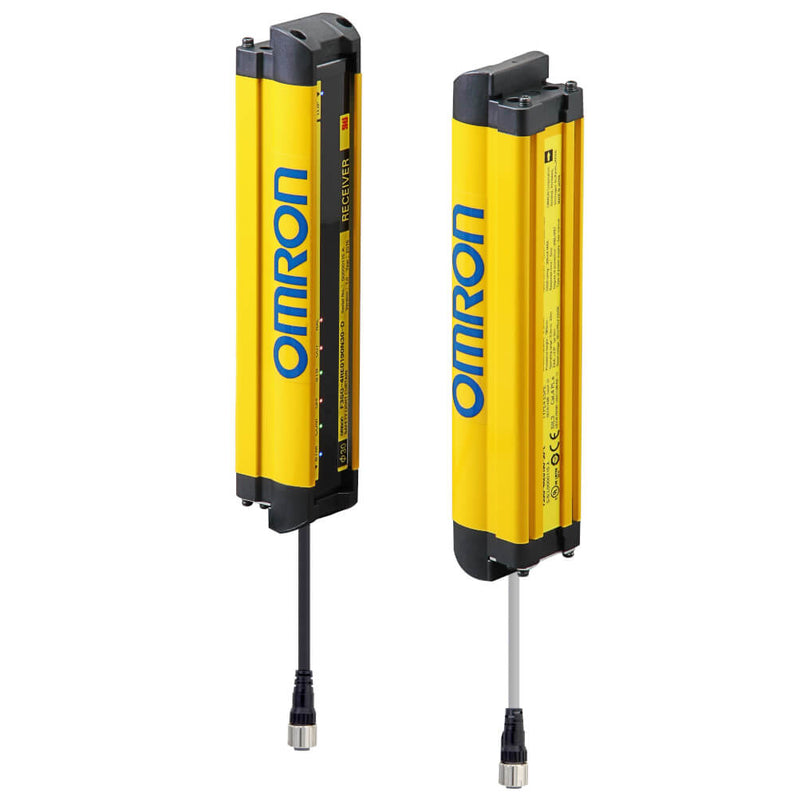

The Omron F3SG-4RE0320P14 Global Light Curtain is a Type 4 safety light curtain designed for finger protection in high-performance industrial safety applications. With a 14 mm detection capability and a 320 mm protective height, it ensures precise detection of small objects or hand intrusions within hazardous zones. Operating on 24 VDC (19.2–28.8 V), it provides reliable protection through PNP OSSD outputs, M12 Smartclick connectors, and IP67-rated durability, making it ideal for guarding machinery, presses, and automated equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety Products |
| Part Number | F3SG-4RE0320P14 |
| Subcategory | Safety Light Curtains |
| Series | F3SG-4R Series |
| Type | Global Light Curtain |
| Safety Type (IEC 61496-1) | Type 4 |
| Protection Type | Finger Protection |
| Detection Capability | 14 mm |
| Protective Height | 320 mm |
| Beam Gap | 10 mm |
| Number of Beams | 31 |
| Response Time | 7 ms |
| Operating Range | 0.3–10 m |
| OSSD Output Type | PNP Semiconductor Outputs |
| Number of OSSD Outputs | 2 |
| Output Current (Max) | 300 mA |
| Supply Voltage | 19.2–28.8 VDC |
| Voltage Type | DC |
| Light Source | Infrared LED (870 nm) |
| Connection Type | M12 Pigtail Smartclick Connector |
| Cascadable | Supported |
| Muting Function | Supported (model dependent) |
| Beam Coding | Supported |
| Indicators | Alignment and Status LEDs |
| Enclosure Rating | IP67 |
| Housing Material | Aluminum with polycarbonate optics |
| Ambient Temperature | -10°C to +55°C |
| Dimensions (L × W × H) | 350 × 35 × 35 mm |
| Mounting Type | Bracket / Panel Mount |
| Standards Compliance | IEC 61496-1/2, ISO 13849-1, UL, CE |
| Scope of Delivery | Transmitter and Receiver |
| Application | Machine Guarding, Finger Protection, Safety Automation |
| Country of Origin | Japan |
| Weight | Approx. 1.2 lbs (0.55 kg) |
Information About F3SG-4RE0320P14
The F3SG-4RE0320P14 is part of Omron’s F3SG-4R Global Light Curtain Series, engineered for seamless integration, high safety performance, and easy installation across global automation systems. Featuring a 14 mm detection resolution, it provides finger-level protection compliant with IEC 61496-1, Type 4 safety standards. The system includes both transmitter and receiver units, delivering a 7 ms fast response time for rapid machine stop functionality. Designed for long-range applications up to 10 meters, it supports M12 pigtail Smartclick connections, simplifying wiring and maintenance. Its robust IP67 enclosure ensures resistance to dust, water, and harsh industrial conditions, while integrated alignment indicators and beam coding enable quick setup and dependable operation.
Key Features:
- Type 4 Safety Rating: Meets IEC 61496-1 for high-level personnel and finger protection.
- Fine Detection Capability: 14 mm resolution ensures accurate detection of small objects or finger entry.
- Compact Protection Zone: 320 mm safety field height ideal for localized guarding applications.
- Fast Response Time: 7 ms switching ensures rapid safety signal generation for machine shutdown.
- Long Detection Range: Operates reliably up to 10 m with stable signal integrity.
- Smartclick Connectivity: M12 pigtail connectors enable quick, tool-free installation.
- Rugged Construction: IP67-rated housing resists dust, water, and mechanical impacts.
- Global Compatibility: Designed for compliance with international machinery safety standards.
The F3SG-4RE0320P14 delivers the reliability and precision required for machine guarding, operator safety, and automation system compliance in industrial environments.
