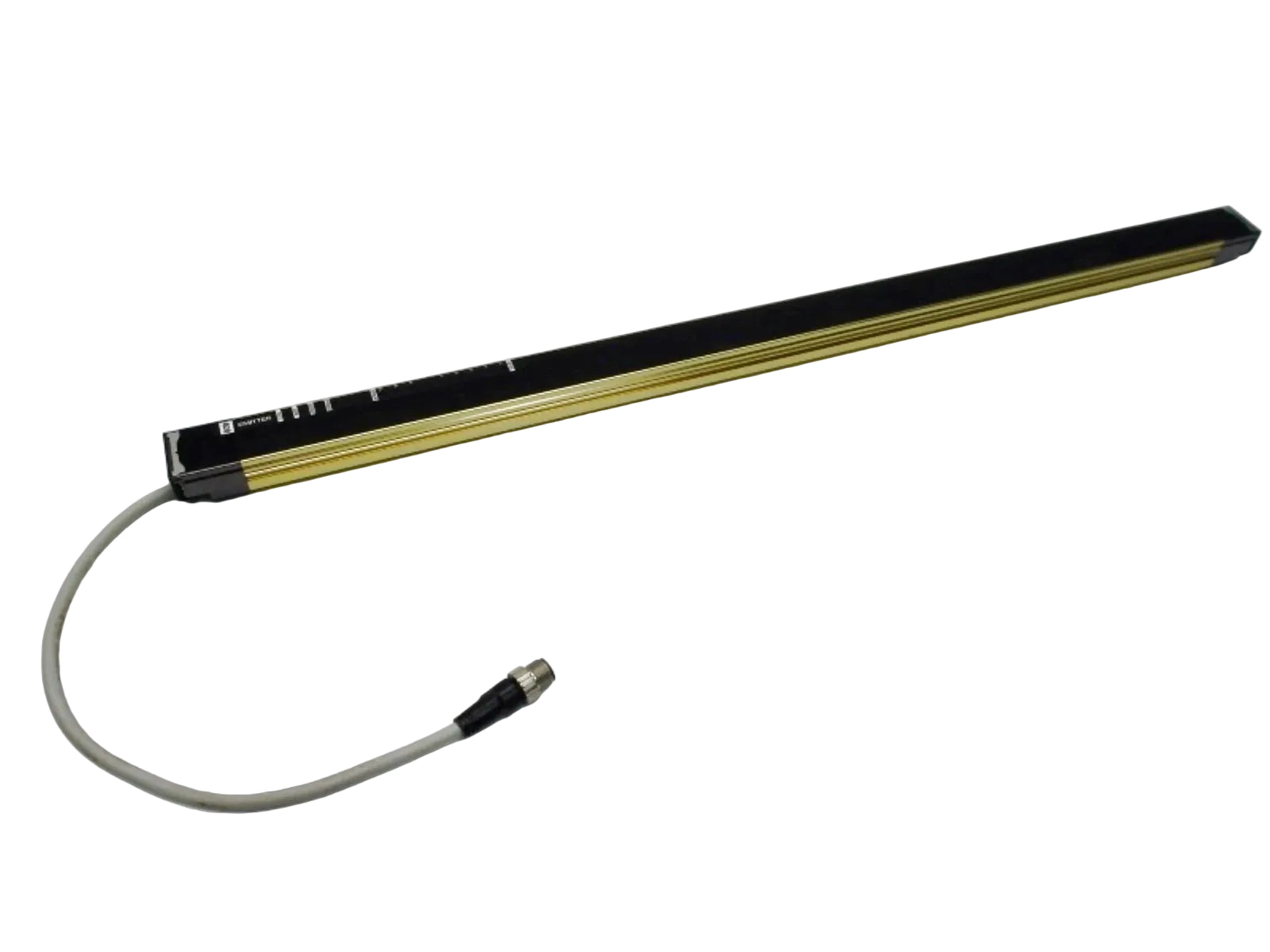

F3SJ-A0635P20 | Omron Safety Light Curtain Hand Protection 635 mm 20 mm Resolution
- Regular price
- $5,282.00
- Sale price
- $5,282.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F3SJ-A0635P20
Description
The Omron F3SJ-A0635P20 is a safety light curtain designed to provide reliable hand protection in industrial machinery environments. It uses infrared sensing technology with a 20 mm detection capability to ensure accurate object detection and fast safety response.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Machine Safety |
| Part Number | F3SJ-A0635P20 |
| Subcategory | Safety Light Curtains |
| Application | Hand Protection |
| Detection Capability | Opaque Objects Ø 20 mm |
| Resolution | 20 mm |
| Protective Height | 635 mm |
| Number of Beams | 42 Axes |
| Beam Gap | 15 mm |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 9 m |
| Response Time (ON → OFF) | 12 ms |
| Response Time (OFF → ON) | 48 ms |
| Light Source | Infrared LED, 870 nm |
| Startup Waiting Time | Max. 2 s (2.2 s in Cascade Mode) |
| Output Type | PNP |
| Operating Temperature | -10 to 55 °C (Non-Icing) |
| Storage Temperature | -30 to 70 °C |
| Weight | 1.2 kg |
Information About F3SJ-A0635P20
The F3SJ-A0635P20 is part of Omron’s F3SJ-A series safety light curtains, engineered to meet stringent industrial safety requirements. This series is designed to protect operators by detecting hand or finger intrusion into hazardous machine areas. The unit employs infrared LED technology and multiple optical beams to ensure consistent detection across the protected height. Its robust design supports stable operation in demanding industrial environments with fast response times for safety-critical applications.
Key Features
- Hand Protection Safety Design: Engineered specifically to detect hand intrusion and support operator safety at hazardous machine access points.
- 20 mm Detection Resolution: Accurately detects opaque objects with a minimum diameter of 20 mm for reliable safety coverage.
- 635 mm Protective Height: Provides extended vertical protection using 42 synchronized optical beams.
- Fast Safety Response Time: Achieves ON to OFF response in 12 ms to support rapid machine stop activation.
- Infrared LED Light Source: Uses 870 nm infrared LEDs for stable sensing and long-term operational reliability.
- Wide Operating Range: Supports installation distances from 0.2 to 9 meters for flexible system integration.
- PNP Output Configuration: Enables direct compatibility with modern safety controllers and PLC-based safety systems.
The F3SJ-A0635P20 delivers the reliability and precision required for industrial hand protection and machine safety applications.
