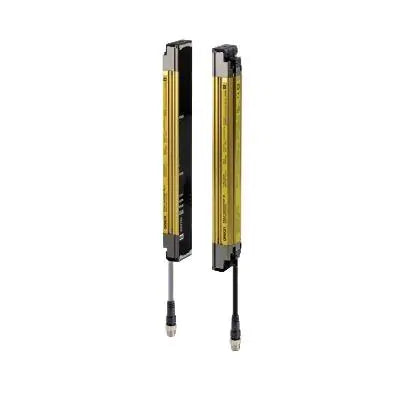

F3SJ-A0870P30 | Omron Safety Light Curtain, Type 4, 870 mm Height, 30 mm Resolution, IP65
- Regular price
- $4,665.00
- Sale price
- $4,665.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: F3SJ-A0870P30
Description
The Omron F3SJ-A0870P30 is an advanced safety light curtain engineered to provide reliable hand and arm protection in hazardous machine environments. With a 30 mm detection capability, 870 mm protective height, and a 0.2–9 m sensing range, it ensures precise, fast-response safeguarding for presses, robots, and automated machinery.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Safety Sensors |
| Part Number | F3SJ-A0870P30 |
| Subcategory | Safety Light Curtain |
| Series | F3SJ-A Series |
| Safety Classification | Type 4, SIL3, Category 4 (IEC 61496-1/2, EN 61496-1) |
| Detection Capability | 30 mm (opaque objects) |
| Beam Gap | 25 mm |
| Number of Beams | 35 |
| Protective Height | 870 mm |
| Sensing Range | 0.2–9 m |
| Light Source | Infrared LED (870 nm) |
| Response Time | 10–17.5 ms (typical) |
| Supply Voltage | 24 VDC ±20% |
| Current Consumption | Emitter: 76 mA / Receiver: 68 mA (no load) |
| Control Output (OSSD) | Two PNP transistor outputs (300 mA max.) |
| Auxiliary Output | One PNP (non-safety) output, 300 mA max. |
| Output Operation | Light-ON (safety output), reverse output available |
| Communication Interface | M12 8-pin connector |
| Housing Material | Aluminum and zinc die-cast with PMMA front window |
| Protection Rating | IP65 |
| Safety Functions | Muting, EDM, interlock, blanking, override |
| Ambient Temperature | –10°C to +55°C |
| Ambient Humidity | 35–85% RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, 0.7 mm double amplitude |
| Shock Resistance | 100 m/s², 1000 shocks per axis |
| Standards Compliance | IEC 61496-1/2, EN ISO 13849-1, UL 61496-1 |
| Accessories Included | Mounting brackets, manual, and error label |
| Weight | Approx. 1.4 kg (main unit) |
Information About F3SJ-A0870P30
The F3SJ-A0870P30 is part of Omron’s F3SJ-A series, a next-generation family of Type 4 safety light curtains designed for high-performance safeguarding applications. It utilizes an infrared LED light source (870 nm) and features 35 beams with a 25 mm beam gap, ensuring accurate detection of opaque objects ≥30 mm in diameter. Built with aluminum and zinc die-cast housing, the unit withstands industrial conditions while maintaining IP65 protection. The controller includes dual PNP OSSD safety outputs, muting, EDM, and interlock functions, ensuring compliance with IEC 61496-1/2 and SIL3 safety standards.
Key Features:
- Type 4 Safety Rating: Certified to IEC 61496-1/2 and EN 61496-1 for Category 4, SIL3 protection.
- High Detection Accuracy: 30 mm resolution for hand and arm detection in industrial guarding applications.
- Wide Sensing Range: Detects objects within 0.2 to 9 meters, suitable for various machine sizes.
- Fast Response Time: Reaction within 10–17.5 ms ensures quick machine stop for safety compliance.
- Robust Construction: Aluminum and zinc die-cast housing with PMMA front window for durability.
- Multiple Safety Functions: Supports muting, EDM, interlock, and floating/fixed blanking.
- Integrated Diagnostics: LEDs indicate alignment, fault, and operational status for easy maintenance.
- Easy Connectivity: Features M12 8-pin connectors and compatibility with Omron accessories and relay modules.
The F3SJ-A0870P30 delivers the reliability and precision required for safeguarding personnel and equipment in demanding industrial automation environments.
