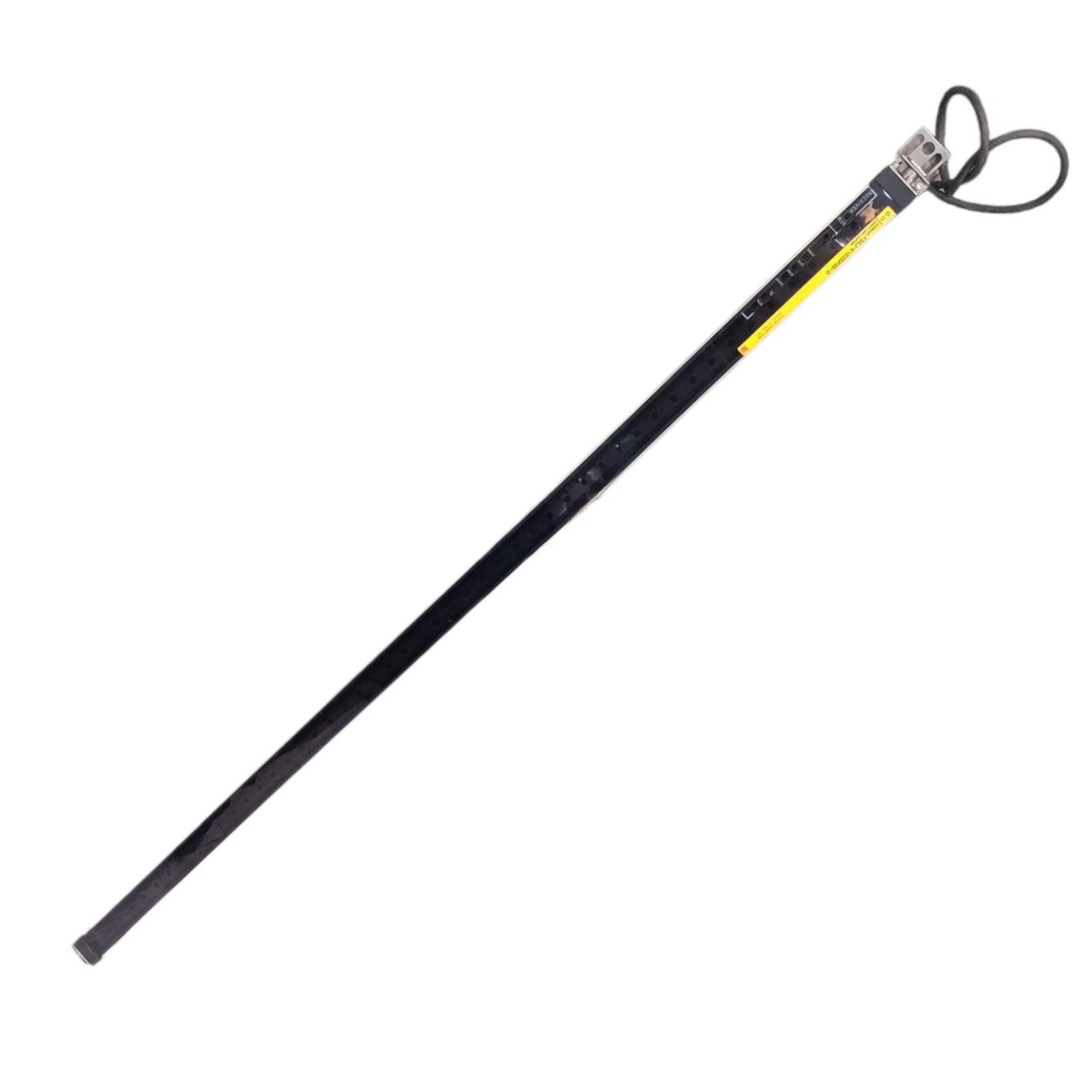

F3SJ-E1025P25 | Omron Type 4 Safety Light Curtain Pair, 1025 mm Protective Height, PNP Output
- Regular price
- $1,292.00
- Sale price
- $1,292.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F3SJ-E1025P25
Description
The Omron F3SJ-E1025P25 is a Type 4 safety light curtain transmitter and receiver pair designed for reliable hand protection in industrial machinery. Featuring a 20 mm beam pitch with a 1025 mm protective height, it provides precise object detection within a 0.2 to 7 meter operating range. This safety light curtain is engineered for straightforward on/off detection applications requiring high safety integrity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Machine Safety |
| Part Number | F3SJ-E1025P25 |
| Subcategory | Safety Light Curtains |
| Product Series | F3SJ |
| Safety Type | Type 4 ESPE |
| Protective Height | 1025 mm |
| Beam Resolution | 25 mm (hand protection) |
| Number of Beams | 50 |
| Beam Pitch | 20 mm |
| Sensing Distance | 0.2 to 7 m |
| Supply Voltage | 24 V DC (19.2–28.8 V DC) |
| Output Type | PNP OSSD |
| Response Time | 15 ms (ON→OFF), 70 ms (OFF→ON) |
| Degree of Protection | IP65 |
| Operating Temperature | -10 to +55 °C |
| Housing Material | Aluminum Alloy |
| Light Source | Infrared LED (870 nm) |
| Weight | 1.96 kg |
Information About F3SJ-E1025P25
The F3SJ-E1025P25 is part of Omron’s F3SJ Easy type safety light curtain series, designed for compact installation and dependable personnel protection. It utilizes an infrared LED sensing method with a rugged aluminum alloy housing suitable for industrial environments with pollution degree 3. The unit is compliant with IEC, EN, and UL 61496-1 standards as a Type 4 electro-sensitive protective equipment device and supports SIL3 and PL e safety classifications. Its PNP output configuration and pre-wired connections make it compatible with common 24 V DC safety control systems.
Key Features:
- Type 4 Safety Rating: Certified to IEC 61496-1 for high-risk machine guarding applications.
- 20 mm Beam Pitch: Enables accurate hand detection with 50 infrared beams.
- 1025 mm Protective Height: Covers a wide vertical detection area for operator safety.
- PNP OSSD Outputs: Dual safety outputs rated at 200 mA for reliable system integration.
- Infrared LED Technology: Uses 870 nm wavelength for stable and precise sensing.
- External Test Function: Supports emitter-side testing via dedicated digital input.
- Robust IP65 Housing: Aluminum enclosure provides protection against dust and water ingress.
The F3SJ-E1025P25 delivers the reliability and precision required for industrial hand protection and machine safety applications.
