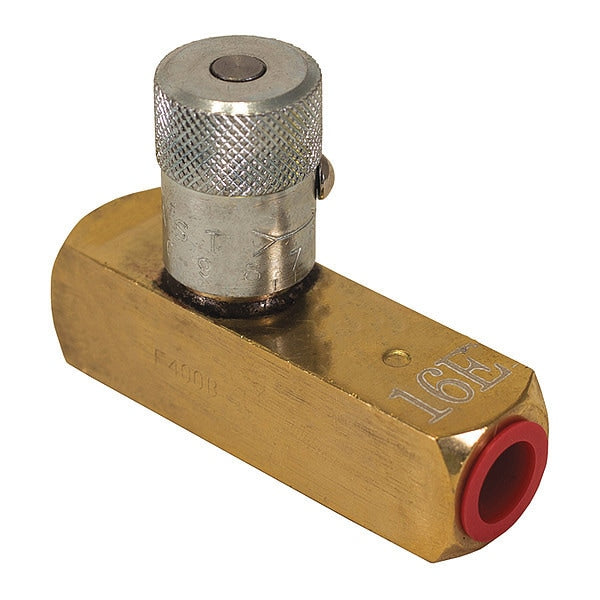

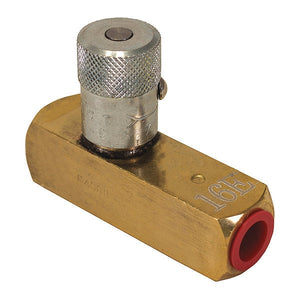

F400B | Parker F Series In-Line Hydraulic Flow Control Valve 1/4 NPT 5 GPM 2000 PSI Brass Colorflow
- Regular price
- $179.00
- Sale price
- $179.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F400B
Description
The Parker F400B is an in-line hydraulic flow control valve designed to provide precise manual metering of fluid flow in industrial hydraulic and pneumatic systems. The F400B features a one-way flow control configuration with free reverse flow and supports up to 5 gpm maximum flow at pressures up to 2000 psi. It is constructed with a brass body and NPT threaded ports for reliable integration into control circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Parker |
| Category | Valves |
| Part Number | F400B |
| Subcategory | Flow Control Valve |
| Valve Series | F Series Colorflow |
| Valve Type | In-Line Needle Flow Control Valve |
| Control Direction | One-Way with Free Reverse Flow |
| Function | Manual Flow Control Metering |
| Maximum Flow Rate | 5 gpm (19 L/min) |
| Maximum Operating Pressure | 2000 psi (13.79 MPa) |
| Cracking Pressure | 5 psi |
| Connection Type | Female NPTF Threaded Ports |
| Port Size | 1/4 Inch |
| Body Material | Brass |
| Seal Material | Nitrile (NBR) |
| Poppet Style | Soft Seat Guided Poppet |
| Operating Temperature Range | -40°F to 250°F (-40°C to 121°C) |
| Knob Type | Standard Manual Adjustment |
| Weight | 2.00 lbs |
Information About F400B
The F400B is part of Parker’s F Series Colorflow flow control valve lineup, engineered for accurate metering and stable adjustment in general hydraulic applications. It uses a standard metering needle and a fully guided soft seat poppet design to ensure near-zero leakage and smooth reverse free-flow operation. The valve is manually actuated with a standard knob and includes Parker’s Colorflow band indicator for clear visual reference of the flow setting. With female-to-female 1/4" NPT connections, brass construction, and nitrile sealing, it is suitable for factory automation, machine tools, material handling, and industrial fluid control systems.
Key Features:
-
In-Line Flow Control Valve Design: Provides manual metering for hydraulic and pneumatic flow regulation.
-
One-Way Controlled Direction: Allows metered flow in one direction with free reverse flow capability.
-
High Pressure Operation Rating: Supports maximum working pressure up to 2000 psi.
-
Maximum Flow Capacity: Rated for up to 5 gpm (19 L/min) flow control performance.
-
Soft Seat Guided Poppet: Fully guided poppet design minimizes leakage and improves durability.
-
Standard Needle Metering Adjustment: Includes a standard needle for precise and repeatable flow setting.
-
Brass Body Construction: Provides corrosion-resistant performance in industrial fluid applications.
-
Colorflow Visual Indicator Feature: Color-band marking provides accurate visual indication of adjustment position.
The F400B delivers the reliability and precision required for manual hydraulic flow control and industrial metering valve applications.
Description
The Parker F400B is an in-line hydraulic flow control valve designed to provide precise manual metering of fluid flow in industrial hydraulic and pneumatic systems. The F400B features a one-way flow control configuration with free reverse flow and supports up to 5 gpm maximum flow at pressures up to 2000 psi. It is constructed with a brass body and NPT threaded ports for reliable integration into control circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Parker |
| Category | Valves |
| Part Number | F400B |
| Subcategory | Flow Control Valve |
| Valve Series | F Series Colorflow |
| Valve Type | In-Line Needle Flow Control Valve |
| Control Direction | One-Way with Free Reverse Flow |
| Function | Manual Flow Control Metering |
| Maximum Flow Rate | 5 gpm (19 L/min) |
| Maximum Operating Pressure | 2000 psi (13.79 MPa) |
| Cracking Pressure | 5 psi |
| Connection Type | Female NPTF Threaded Ports |
| Port Size | 1/4 Inch |
| Body Material | Brass |
| Seal Material | Nitrile (NBR) |
| Poppet Style | Soft Seat Guided Poppet |
| Operating Temperature Range | -40°F to 250°F (-40°C to 121°C) |
| Knob Type | Standard Manual Adjustment |
| Weight | 2.00 lbs |
Information About F400B
The F400B is part of Parker’s F Series Colorflow flow control valve lineup, engineered for accurate metering and stable adjustment in general hydraulic applications. It uses a standard metering needle and a fully guided soft seat poppet design to ensure near-zero leakage and smooth reverse free-flow operation. The valve is manually actuated with a standard knob and includes Parker’s Colorflow band indicator for clear visual reference of the flow setting. With female-to-female 1/4" NPT connections, brass construction, and nitrile sealing, it is suitable for factory automation, machine tools, material handling, and industrial fluid control systems.
Key Features:
-
In-Line Flow Control Valve Design: Provides manual metering for hydraulic and pneumatic flow regulation.
-
One-Way Controlled Direction: Allows metered flow in one direction with free reverse flow capability.
-
High Pressure Operation Rating: Supports maximum working pressure up to 2000 psi.
-
Maximum Flow Capacity: Rated for up to 5 gpm (19 L/min) flow control performance.
-
Soft Seat Guided Poppet: Fully guided poppet design minimizes leakage and improves durability.
-
Standard Needle Metering Adjustment: Includes a standard needle for precise and repeatable flow setting.
-
Brass Body Construction: Provides corrosion-resistant performance in industrial fluid applications.
-
Colorflow Visual Indicator Feature: Color-band marking provides accurate visual indication of adjustment position.
The F400B delivers the reliability and precision required for manual hydraulic flow control and industrial metering valve applications.
