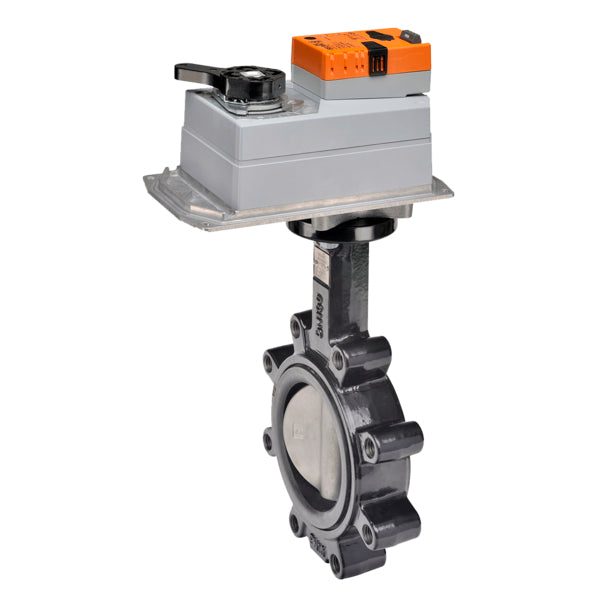

F6150HDU+DRCX24-3-T | Belimo 6 Inch Butterfly Control Valve With 24V Non Fail-Safe Actuator
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: F6150HDU+DRCX24-3-T
Description
The Belimo F6150HDU+DRCX24-3-T is a 6-inch, 2-way butterfly control valve with an integrated AC/DC 24 V actuator designed for on/off and floating point control. It provides high-flow performance with a Cv of 1579 and is engineered for reliable operation in large hydronic HVAC systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Belimo |
| Category | Control Valves |
| Part Number | F6150HDU+DRCX24-3-T |
| Subcategory | Butterfly Valves |
| Valve Type | Butterfly Valve (BFV) |
| Valve Size | 6" (DN 150) |
| Flow Pattern | 2-way |
| Cv Rating | 1579 |
| Body Pressure Rating | ANSI Class Consistent with 125, 232 psi CWP |
| Close-Off Pressure | 50 psi |
| Flow Characteristic | Modified equal percentage |
| Leakage Rate | 0% |
| Pipe Connection | Flanged, ASME/ANSI Class 125/150 |
| Fluid Compatibility | Chilled or hot water, up to 60% glycol |
| Fluid Temperature Range | -22…250°F (-30…120°C) |
| Actuator Type | Configurable, non fail-safe |
| Control Input | On/Off, Floating Point |
| Nominal Voltage | AC/DC 24 V |
| Nominal Frequency | 50/60 Hz |
| Power Consumption (Running) | 12 W |
| Power Consumption (Rest) | 3 W |
| Running Time | 35 s / 90° |
| Electrical Connection | Screw terminals (22–12 AWG) |
| Degree of Protection | IP54 / NEMA 2 |
| Ambient Temperature | -22…122°F (-30…50°C) |
| Weight | 19 lb |
Information About F6150HDU+DRCX24-3-T
The F6150HDU+DRCX24-3-T is part of Belimo’s butterfly valve portfolio developed for precise flow control in large-diameter HVAC piping systems. It features a lug-style valve body with flange connections compatible with ASME/ANSI Class 125/150 standards and is designed for maintenance-free service. The factory-mounted actuator operates on AC/DC 24 V and supports on/off and floating point control with selectable direction of rotation. Built for chilled and hot water applications with glycol mixtures, the assembly combines durable mechanical construction with dependable electrical performance.
Key Features
- High-Flow Butterfly Valve Design: DN 6" valve with a Cv of 1579 supports efficient regulation of large water volumes.
- ANSI Class 125 Flange Compatibility: Lug-style body allows secure installation with ASME/ANSI Class 125/150 piping.
- Integrated Configurable Actuator: Factory-fitted actuator simplifies installation and ensures precise valve operation.
- Non Fail-Safe Operation: Maintains last position during power loss for stable system control behavior.
- Wide Application Range: Suitable for chilled water, hot water, and glycol mixtures up to 60%.
- Precise Flow Control Characteristic: Modified equal percentage profile provides smooth control across the full stroke.
- Robust Environmental Protection: IP54 and NEMA 2 ratings support use in mechanical rooms and HVAC environments.
The F6150HDU+DRCX24-3-T delivers the reliability and precision required for large-scale hydronic flow control applications.
