FA-300 | Mircom 6 and 12 Zone Fire Alarm Control Panels with LCD Display
- Regular price
- $1,917.00
- Sale price
- $1,917.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: FA-300
Description

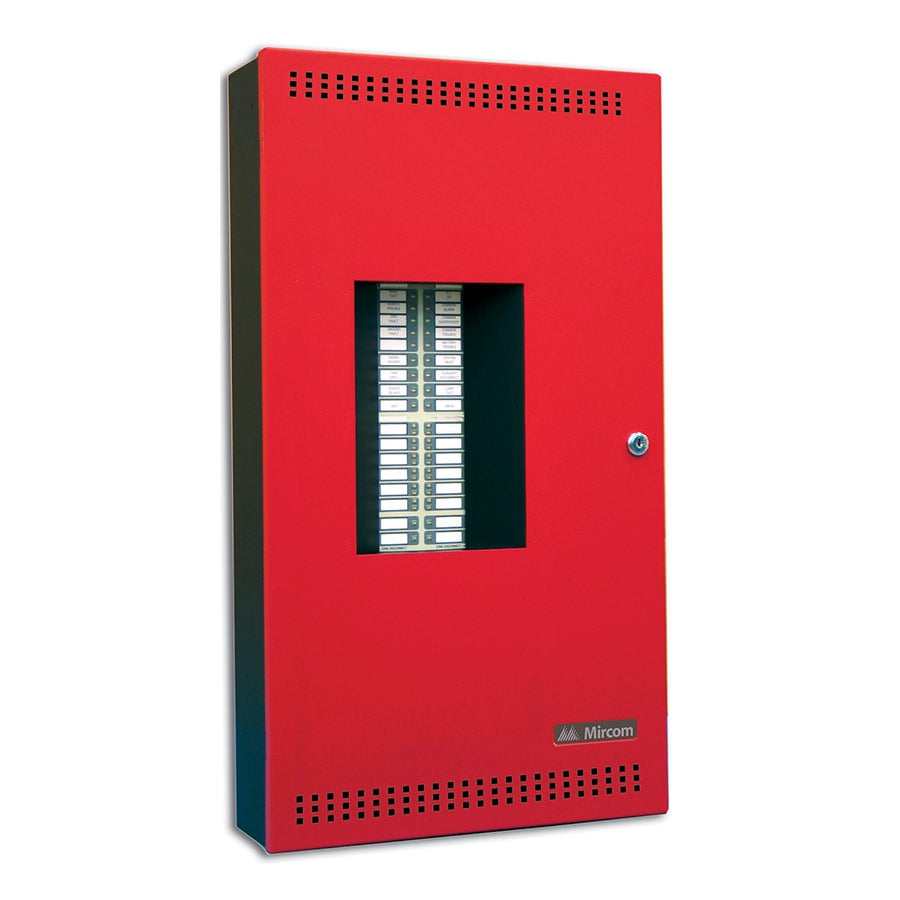

The Mircom FA-300 Series are conventional fire alarm control panels available in 6 and 12 zone models, designed for small to medium commercial, institutional, and industrial buildings. Each panel features an LCD display, keypad interface, and integrated communicator options for reliable fire detection and system management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mircom |
| Category | Fire Alarm Systems |
| Part Number | FA-300 |
| Subcategory | Fire Alarm Control Panels |
| Models Available | 6-zone and 12-zone configurations |
| Display | 2-line, 20-character backlit LCD |
| Keypad | Numeric keypad for control and programming |
| Power Supply | 5A main power supply |
| Smoke Power Supply | 4-wire resettable, 300mA max |
| Communication | Integrated UDACT/Digital Communicator (on select models) |
| Programming Options | Keypad (onsite) or PC (onsite and remote) |
| Upload/Download | Supported via remote connection |
| Initiating Circuits | Class B (Style B), configurable as Class A (Style D) with module |
| Indicating Circuits | Class B (Style B), configurable as Class A (Style Z) with module |
| Audible Signal Options | Steady, Temporal Code, California Code, March Time |
| Features | Walk Test, Auto Signal Silence, Signal Silence Inhibit |
| Battery Capacity | Supports 4–12 AH batteries (up to 12 AH internal) |
| Enclosure | Red door, black enclosure with CAT-30 lock |
| Mounting | Wall-mount; optional trim rings for semi-flush installation |
| Compliance | UL 864, 10th Edition |
| AC Input | 120 VAC 60 Hz / 240 VAC 50 Hz |
| Standby Power | 24 VDC batteries |
| Weight | 20 lbs |
Information About FA-300
The FA-300 Series from Mircom provides flexible fire protection solutions for small to medium installations, combining user-friendly operation with advanced configuration options. Available in 6 and 12 zone models, each panel features a backlit LCD display and numeric keypad for programming and system control. Onboard initiating and indicating circuits can be configured as Class B or upgraded to Class A with optional modules, giving installers flexibility for system design. Integrated UDACT/Digital Communicator options enable direct reporting to central monitoring stations, while relay outputs provide interface with auxiliary equipment.
Key Features:
- Flexible Zone Configurations: Available in 6 or 12 zone models to match installation size.
- LCD Interface: Two-line, 20-character backlit display with keypad for programming and control.
- UDACT Communicator: Integrated digital communicator included on select models for monitoring station reporting.
- Customizable Circuits: Initiating and indicating circuits configurable as Class B or Class A with modules.
- Multiple Signal Patterns: Supports Steady, Temporal, California Code, and March Time operation.
- Synchronization Protocols: Built-in sync for Mircom, Amseco, System Sensor, Gentex, Faraday, and Wheelock devices.
- Relay Outputs: Includes Common Alarm, Auxiliary Alarm, Common Supervisory, and Common Trouble relays.
- Advanced Functions: Auto Signal Silence, Signal Silence Inhibit, and one-man Walk Test for maintenance ease.
- Battery Capacity: Supports 4–12 AH standby batteries with up to 12 AH internal mounting.
- Durable Construction: Red steel door, black enclosure, and CAT-30 lock provide long-lasting security.
The FA-300 Series delivers the reliability and precision required for small to medium facility fire protection, offering versatile programming, durable construction, and compliance with industry standards.
